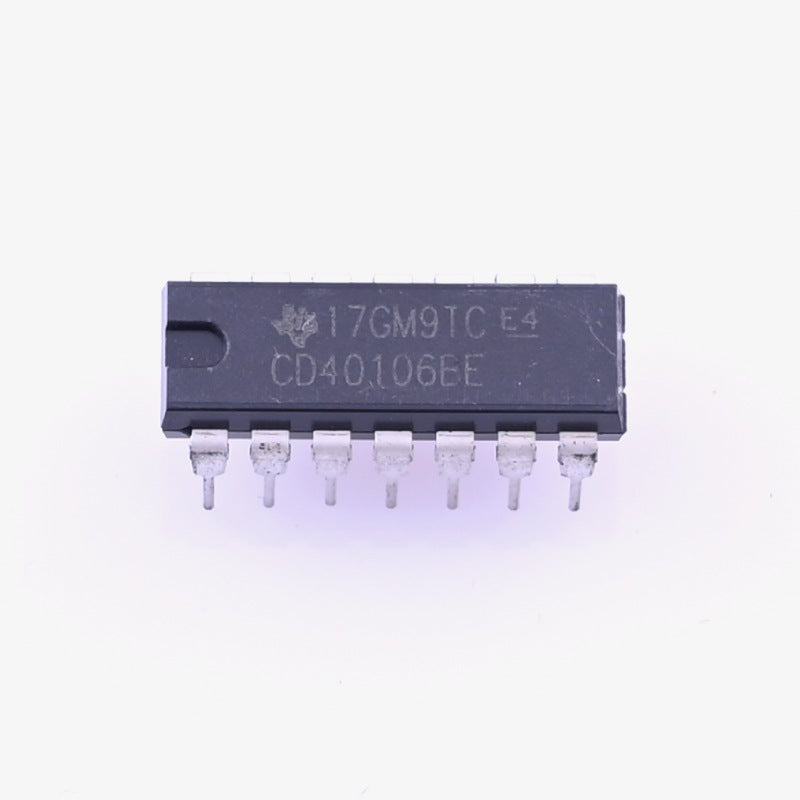

CD40106 - Hex Inverter Schmitt Trigger IC

A Schmitt trigger is used to avoid the problem of hysteresis. It can also be used to smoothen a noisy single into a sharp one. Schmitt trigger gate can convert sinusoidal or triangular wave to square wave. It can also be used as a logic inverter if needed. A Schmitt trigger is also useful for debouncing a push button or other noisy input devices. So, if you are looking for an IC which can help you to get of switching noise or to create sharp square wave signals based on an input signal then this CD40106 IC could be the right choice or you. There are 6 inverting Schmitt Trigger gates in this IC so you can use 2 inverting gates to create a non-inverting Schmitt Trigger. You can use it in Noise Removing Circuits, Debouncing Circuits, Hysteresis controller etc. applications.

Specifications

• Schmitt Trigger â€?Hex Inverter
• Operating Voltage: 5V
• Low-Level Hysteresis voltage: 0.3V
• High-Level Hysteresis voltage: 3.5V
• Output current High: -1mA
• Output current Low: 1mA
• Quiescent Current: 40 nA
• DIP package

Product Description

Package Content

1× CD40106 - Hex Inverter Schmitt Trigger IC
