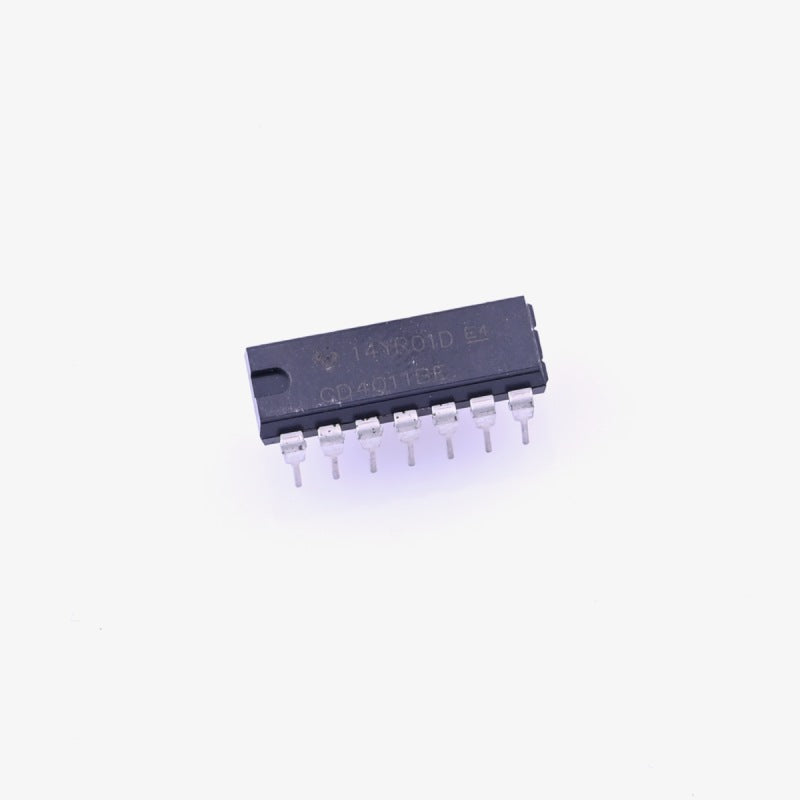

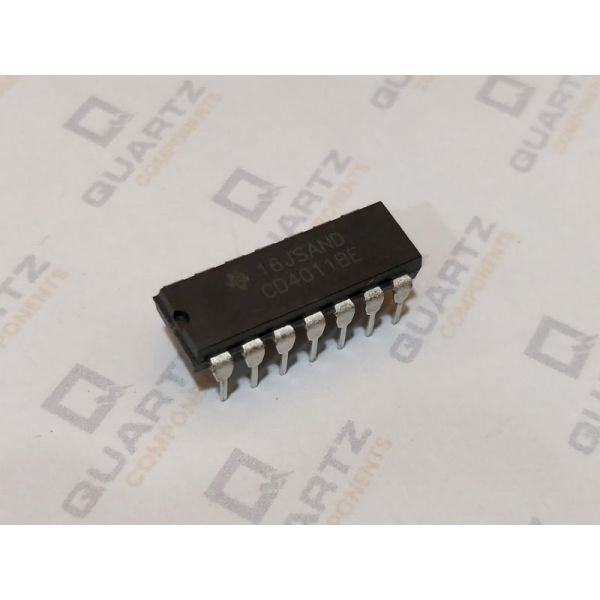

CD4011 - Quad 2-Input NAND Gate IC

The CD4011 is a quad package 2-Input NAND gate IC. That is, it has four NAND gates inside a single package and each gate has two input lines and one output line. All the inputs and outputs are buffered and this improves transfer characteristics by providing very high gain. The CD4011 IC operates at 5V, 10V, 15V, and even 20V. When operating at 5V the maximum low-level input voltage is 0.5 and the minimum high-level input voltage is 4.5. All four gates share the same power rail but can operate independently.

Product Description of CD4011 - Quad 2-Input NAND Gate IC

Features of CD4011 - Quad 2-Input NAND Gate IC

• Provides the system designer with direct implementation of the NAND function
• Operating Voltage Range: 3.0 to 18 V
• Buffered inputs and Outputs
• Max input current 1µA at 18V over full Military Temperature Range
• Low Power TTL compatible
• Typical Operating Voltage: 5V
• Low-Level Output Current: 1.5mA
• Propagation Delay Time:60 ns
• Operating Temperature Range:- 55 C to + 125 C

Additional Resources

Package Contents

1 x CD4011 - Quad 2-Input NAND Gate IC
