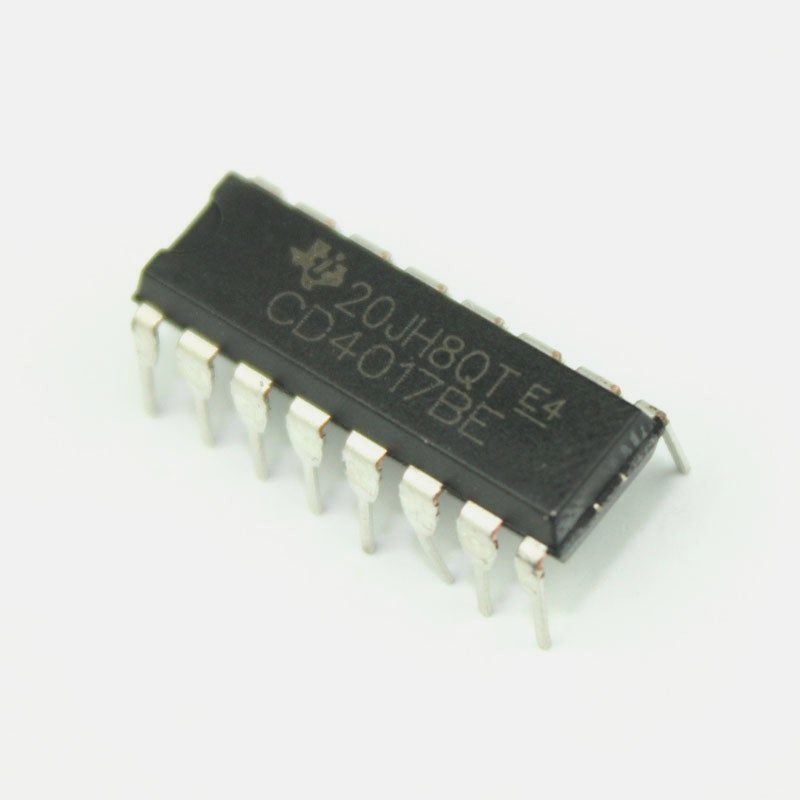

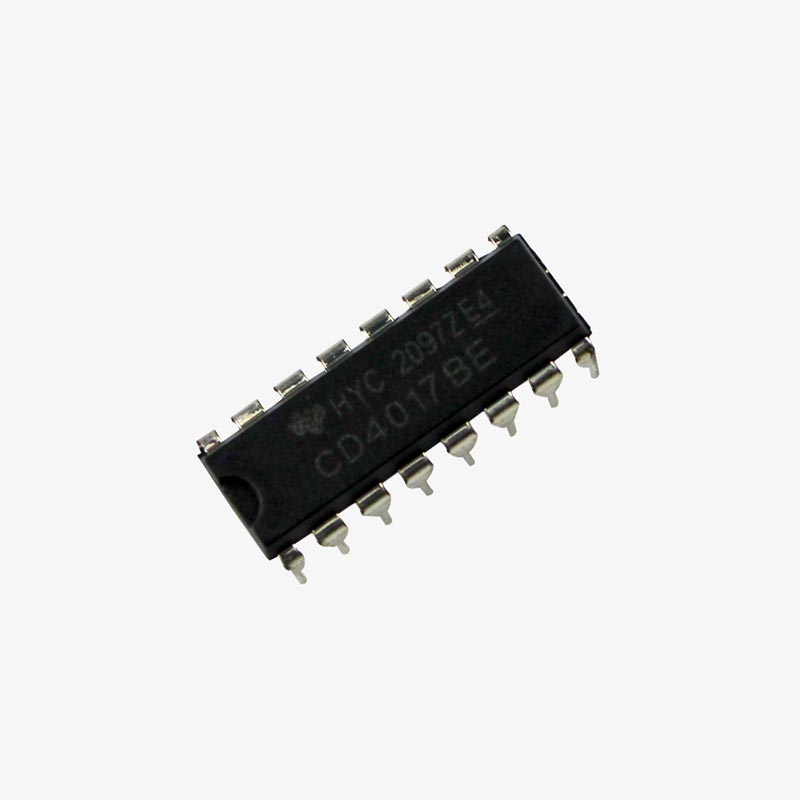

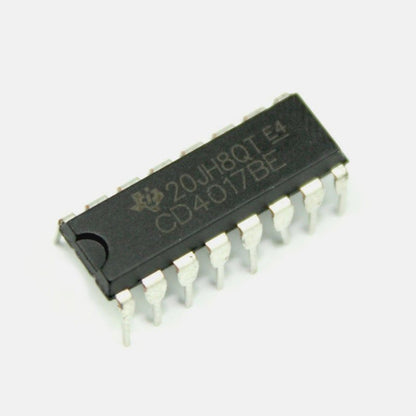

CD4017 Decade Counter IC

The CD4017 IC is a 5-stage CMOS Decade counter that counts to 10. It has 10 decoded outputs and a carry out pin that represents numbers 1 to 10. It also has a single clock pin, so for every clock pulse ,the counting increases with one. The IC can be powered from a 3V to 5V supply voltage with a clock speed of 5MHz. CD4017 is widely used in a number of applications, including, binary counter, decoder, frequency divider, LED chaser, LED matrix and more.

Product Description of CD4017 Decade Counter IC

An alternative to the Decade Counter is the .

CD4017 IC Pin Description

Features of CD4017 Decade Counter IC

• Fully static operation
• Wide supply voltage range: 3.0V to 15V
• Has a high noise immunity of: 0.45 VDD (typ.)
• Has a low power Fan out of 2 driving 74L
• TTL compatibility or 1 driving 74LS
• Has a speed operation 5.0 MHz (typ.) with 10V VDD
• Low power: 10mW (typ.)
• Operating Temperature is from -40 °C to +125 °C
• Lead Temperature (TL) (Soldering, 10 seconds) : 260°C

Mechanical Drawing of CD4017 Decade Counter IC

Package Contents

1× CD4017 Decade Counter IC
