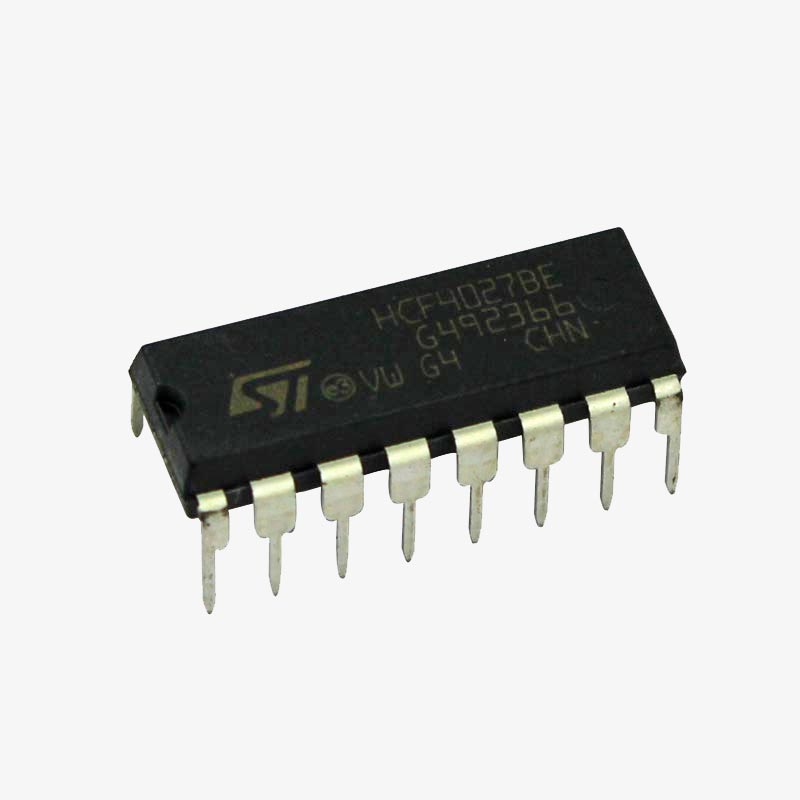

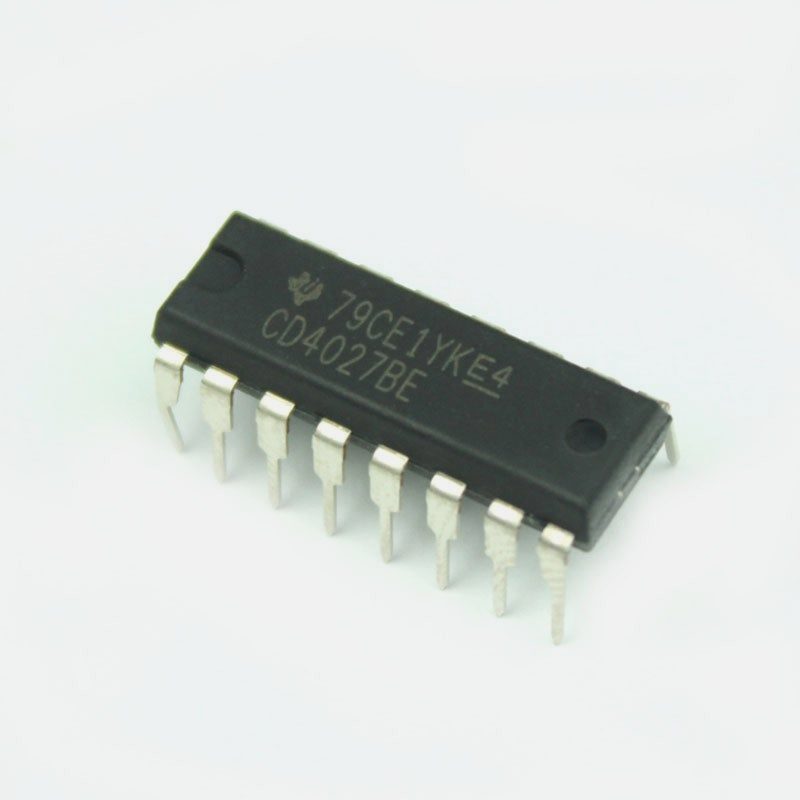

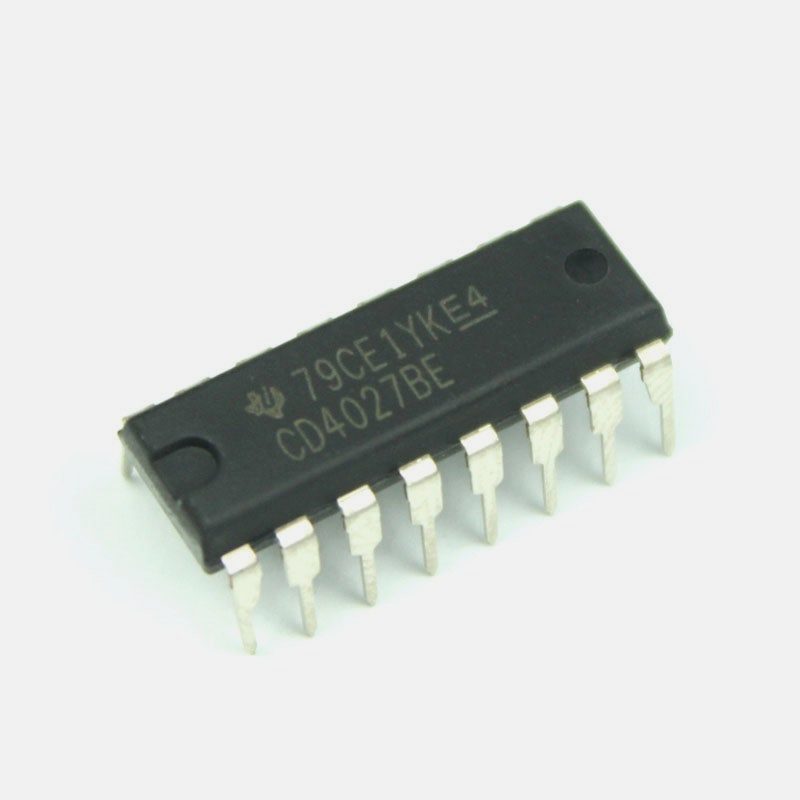

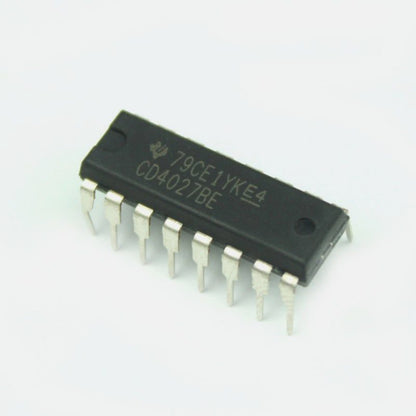

CD4027 Dual JK Flip Flop IC

The CD4027 is a Dual JK Flip Flop CMOS IC. It consist of two identical complementary-symmetry J-K master/slave flip-flops. Each flip-flop has its individual J, K, Set Reset, Clock input signals and buffered Q and Q signals are provided as outputs. The IC has an operating Voltage range from 3.0V to 15V and consumes about 50nW typically. Application areas include EEPROM circuits as a memory element, or to building a shift register or latching circuits.

Product Description of CD4027 -Dual JK Flip Flop IC

                                     PIN DESCRIPTION

Features of CD4027 -Dual JK Flip Flop IC

• Wide supply voltage range: 3.0V to 15V
• Low power: 50nW (typ.)
• Medium speed operation: 12 MHz (typ.) with 10V supply
• Set-Reset Capability
• Static Flip-Flop Operation - Retains State Indefinitely with Clock Level Either “Highâ€?or “Lowâ€?/li>
• Maximum Input Current of 1µA at 18V
• Operating Temperature : -55 to 125 °C
• Lead Temperature (Soldering): 265° C

Package Contents

1× CD4027 Dual JK Flip Flop IC
