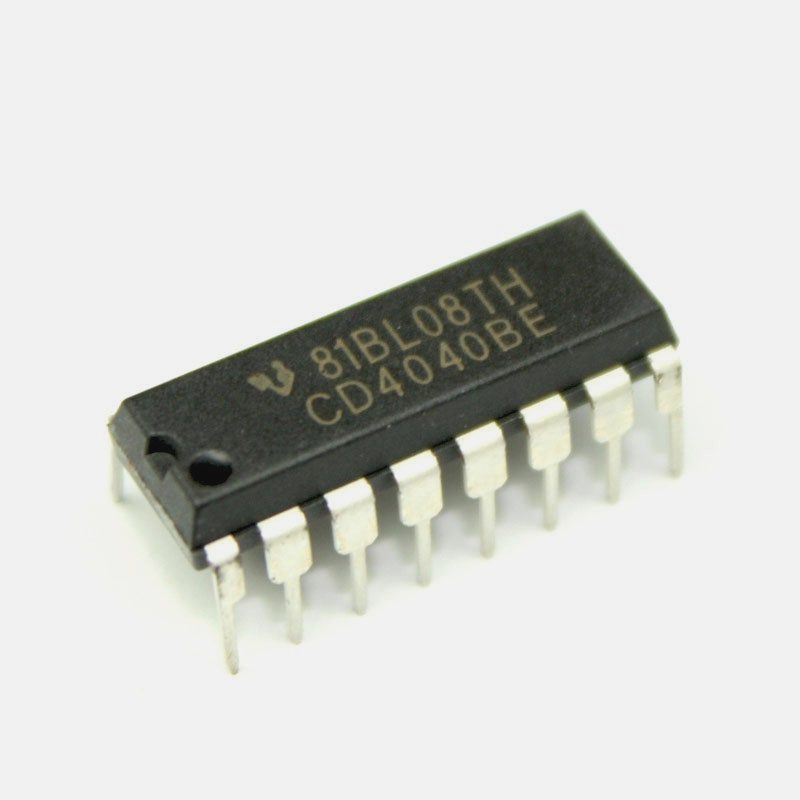

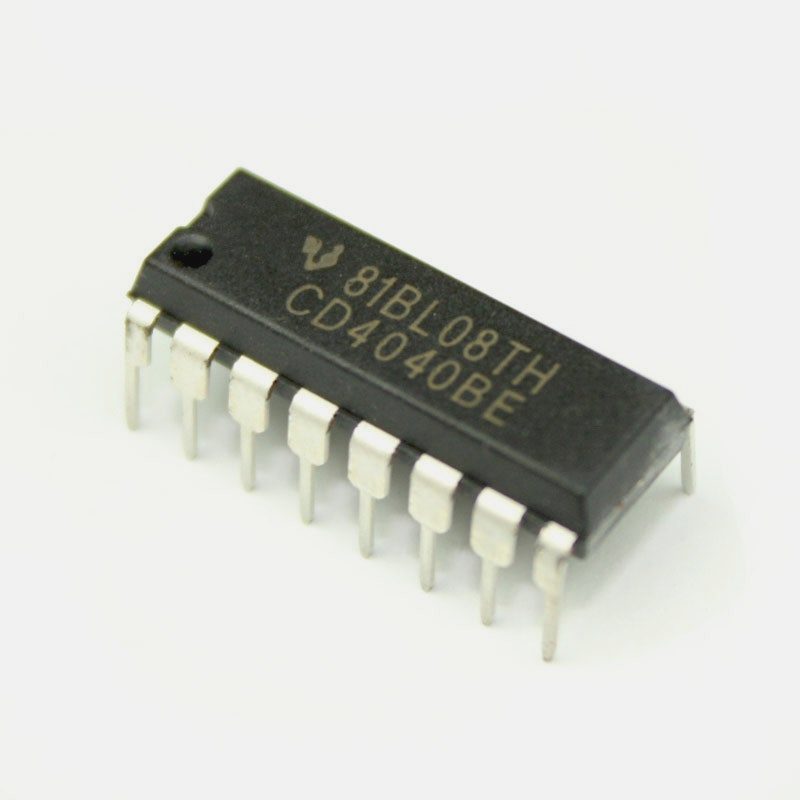

CD4040 - 12 Stage Ripple Carry Binary Counter IC

CD4040 is ripple-carry binary counters that features 12 stage, push-pull type, balanced outputs, with standard speed (tpd > 50ns). All counter stages are master-slave flip-flops. Supports wide input voltage ranges from 3V to 18V. The maximum input current at 18V is 1 uA whereas 100 nA at 18V and 25°C.

All counter stages are master-slave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the RESET line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times. All inputs and outputs are buffered. 16 Pin DIP available in hermetic dual-in-line ceramic package.

We also have with similar features. The differences are CD4020 is a 14 Stage binary counter whereas CD4040 is a 12 Stage binary counter and there is a difference between the pin layout.

CD4040 pinout:

CD4040 features, specification

Features:-

1. Medium-speed operation
2. Fully static operation
3. Buffered inputs and outputs
4. 100% tested for quiescent current at 20 V
5. Standardized, symmetrical output characteristics
6. Fully static operation
7. Common reset
8. 5-V, 10-V, and 15-V parametric ratings
9. Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
10. Noise margin (over full package-temperature range):

•    1 V at VDD = 5 V
•    2 V at VDD = 10 V
•    2.5 V at VDD = 15 V

Specification :-

• VCC (Min) (V) -                        3
• VCC (Max) (V) -                        18
• Bits (#) -                                    12
• Voltage (Nom) (V) -           5, 10, 15
• F @ nom voltage (Max) (MHz) -         8
• ICC @ nom voltage (Max) (mA) -      0.03
• tpd @ nom Voltage (Max)(ns)            -          160
• IOL (Max) (mA) -                              1.5
• IOH (Max) (mA) -                      -1.5
• Function -                                Counter
• Type -                                       Binary
• Operating temperature range (C)       -55 to 125

CD4040 Applications:

• Control Counters
• Timers
• Frequency Dividers
• Time-Delay Circuits

CD4040 Dimension and footprint:

Package Contains

1 x CD4040
