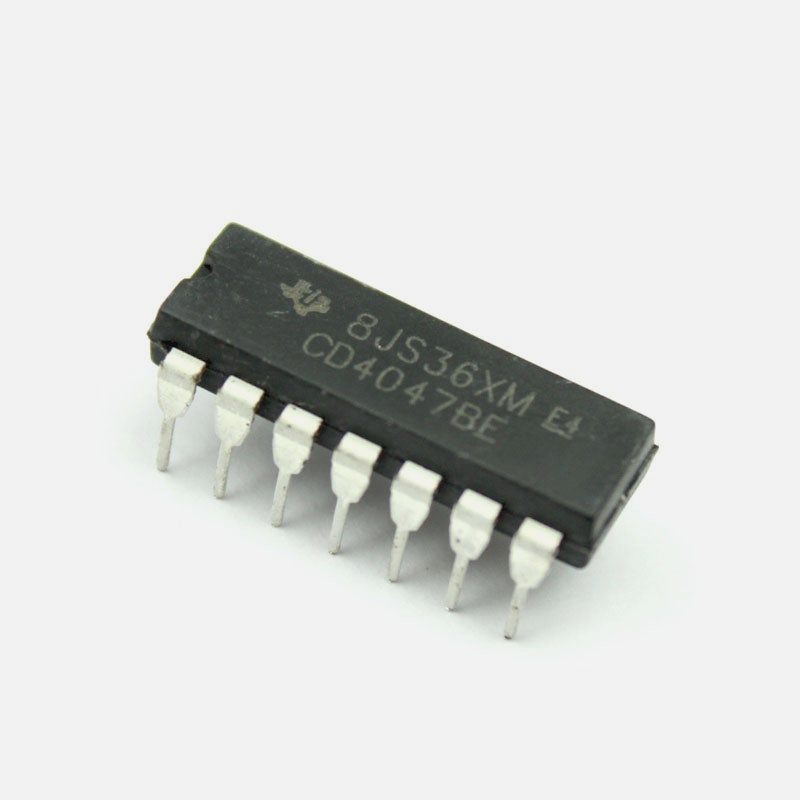

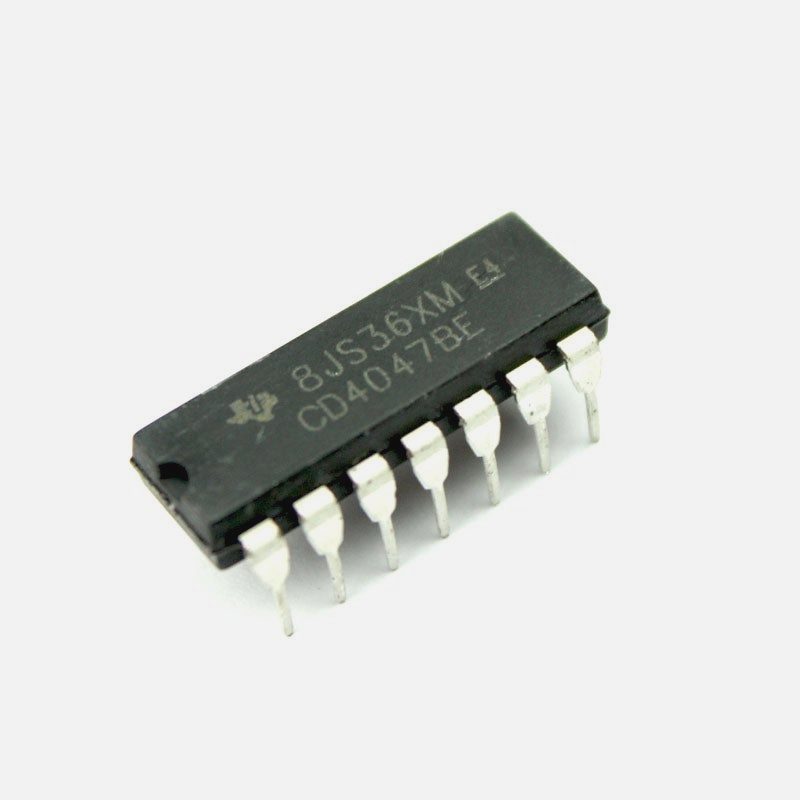

CD4047/CF4047 - Monostable/Astable Multivibrator IC

CD4047/CF4047 - Monostable/Astable Multivibrator IC

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

The CD4047 is a high voltage multivibrator IC, that can operate in both Monostable and Astable mode. The IC requires an external resistor and capacitor to set the width of output pulse in monostable mode and the frequency of output pulse in Astable Mode. The monostable mode has positive and negative edge trigger with programmable pulse width. The Astable mode provides good frequency stability at 50% duty cycle. The CD4047 IC can operate on 5V, 10V, 15V or even at 20V. The output of the IC always comes in TTL which makes it easy to work with other TTL devices and microcontrollers. The IC is commonly used in frequency discriminators, timing circuits ,time-delay applications ,envelope detection, frequency multiplication and division.



Product Description of CD4047 - Monostable/Astable Multivibrator IC

CD4047 IC PInout



PIN DESCRIPTIONS

Alternative to the CD4047 ICs, are the and the .

Astable-Multivibrator-IC



Features of CD4047 - Monostable/Astable Multivibrator IC

  • Wide Supply Voltage : 3.0V to 15V
  • High Noise Immunity
  • Buffered inputs
  • Requires only one external Resistor and Capacitor
  • Offers both monostable and astable mode operations
  • Low power consumption
  • Monostable Features : Duty-cycle approaches 100%, Retrigger option for pulse width expansion, positive/ negative edge trigger
  • Astable Features : 50% duty-cycle, Oscillator output available, good astable frequency stability



Package Contents

1× CD4047 - Monostable/Astable Multivibrator IC
