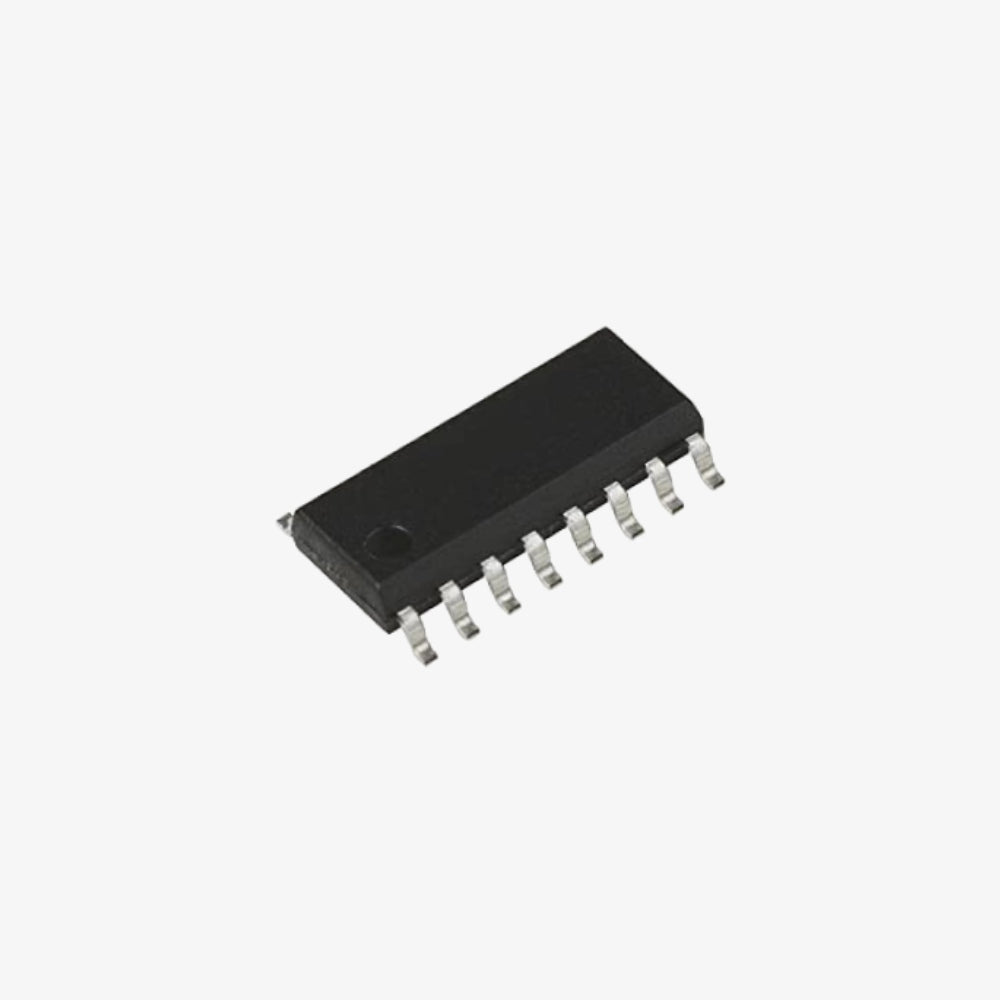

CD4052 Differential 4-Channel Multiplexer/Demultiplexer IC - SOIC-16 SMD Package

he CD4052 analog multiplexers and demultiplexers are digitally-controlled analog switches featuring low ON impedance and very low OFF leakage current. These multiplexer circuits consume extremely low quiescent power across the full VDD â€?VSS and VDD â€?VEE supply voltage ranges, independent of the control signals' logic state. The CD4052 is a differential 4-channel multiplexer with two binary control inputs (A and B) and an inhibit input.

Features/Specifications:

• Series: CD4052B / HEF4052BT
• Product Category: Multiplexer Switch ICs
• Product: Multiplexers/Demultiplexers
• Number of Channels: 4 Channels
• Configuration: 2 x 4:1
• Operating Supply Voltage: 5 ~ 18V
• Power Dissipation: 700 mW
• Supply Current: 100 µA
• On Resistance â€?Max: 240 Ohms
• Minimum Operating Temperature: -55°C
• Maximum Operating Temperature: +125°C
• Bandwidth: 25 MHz
• Propagation Delay Time: 30 ns
• Mounting Style: SMD/SMT
• Package: SOIC-16

Package Includes:

1 x CD4052 Differential 4-Channel Multiplexer/Demultiplexer IC - SOIC-16 Package

Note: Product images are for illustrative purposes only and may differ from the actual product.
