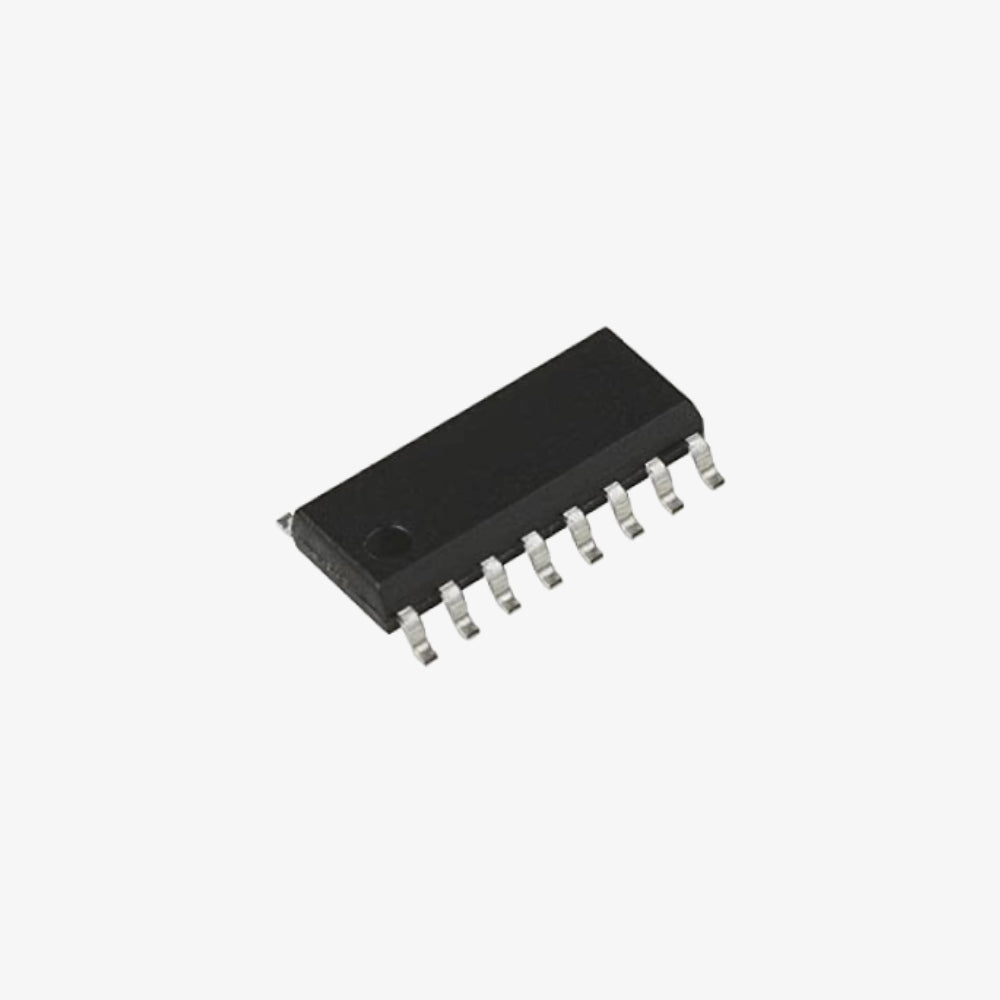

CD4053 Triple 2-Channel Multiplexer/Demultiplexer IC - SOIC-16 SMD Package

The CD4053 analog multiplexers and demultiplexers are digitally-controlled analog switches featuring low ON impedance and very low OFF leakage current. These multiplexer circuits consume extremely low quiescent power across the full VDD �VSS and VDD �VEE supply voltage ranges, independent of the control signals' logic state

Features/Specs:

• Series: CD4053
• Product Category: Multiplexer Switch ICs
• Product: Multiplexers/Demultiplexers
• Number of Channels: 3 Channels
• Configuration: 3 x 2:1
• Operating Supply Voltage: 5V ~ 20V
• Maximum Dual Supply Voltage: +/-10V
• Power Dissipation: 200 mW
• Supply Type: Single Supply, Dual Supply
• Supply Current â€?Max: 100 µA
• On Resistance â€?Max: 240 Ohms
• Propagation Delay Time: 60 ns
• On Time â€?Max: 720 ns
• Off Time â€?Max: 450 ns
• Bandwidth: 30 MHz
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: +125°C
• Product Type: Multiplexer Switch ICs
• Mounting Style: SMD/SMT
• Package/Case: SOIC-16

Package Includes:

1 x CD4053 Triple 2-Channel Multiplexer/Demultiplexer - SOIC-16 Package

Note: Product images are for illustrative purposes only and may differ from the actual product.
