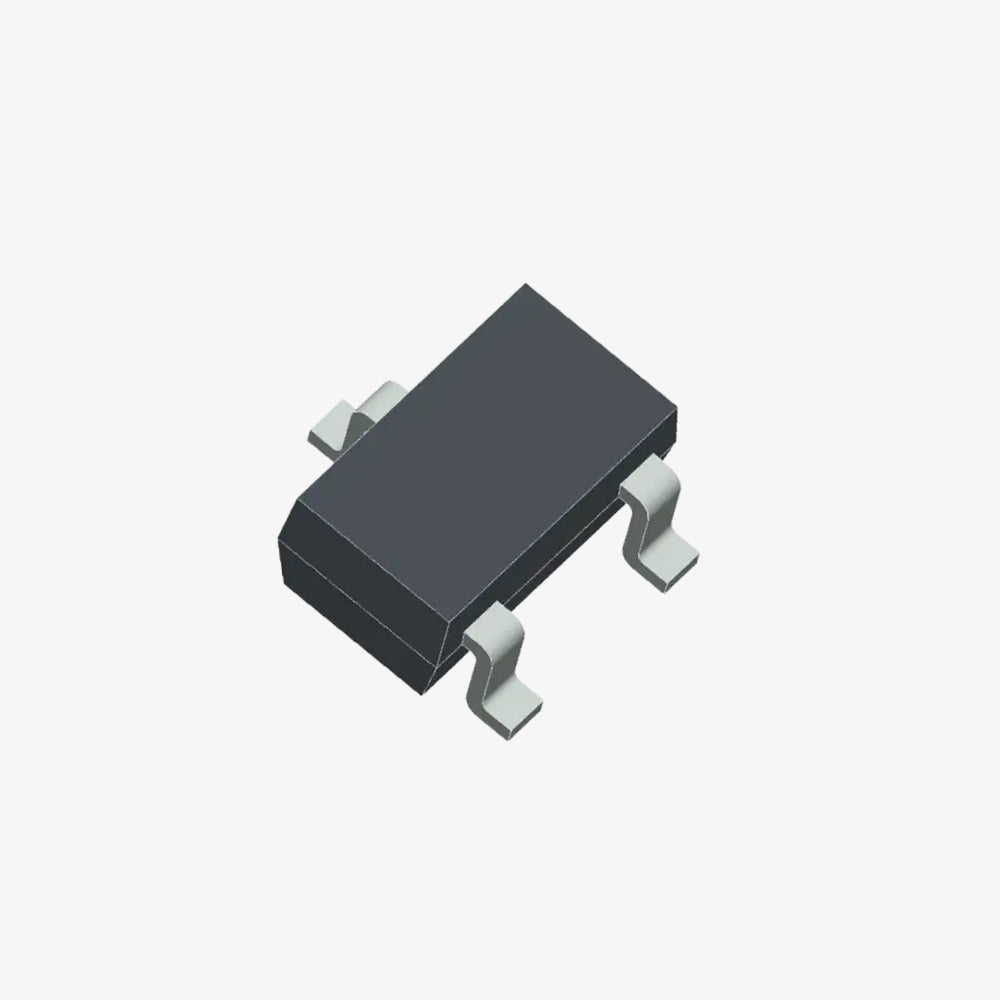

CJ2310 N-Channel MOSFET SOT-23 SMD Package

The CJ2310 is an N-channel (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for use in low-voltage, high-current switching applications. It is housed in a compact SOT-23 surface-mount device (SMD) package, making it ideal for high-density circuit board layouts. Here’s a detailed description of the product:

Key Features:

• Type: N-Channel MOSFET
• Package: SOT-23 (Surface Mount Device)
• Polarity: N-Channel
• Maximum Drain-Source Voltage (Vds): 60V
• Maximum Continuous Drain Current (Id): 3A
• Maximum Power Dissipation (Pd): 350mW
• Low On-Resistance (Rds(on)): Typically 0.1Ω at Vgs = 10V
• Gate Threshold Voltage (Vgs(th)): 1V to 3V

Applications:

• Load Switching: Ideal for switching low-voltage loads.
• Power Management: Suitable for use in power management applications in portable devices.
• Battery-Powered Applications: Commonly used in battery-powered applications due to its low on-resistance and high efficiency.
• DC-DC Converters: Can be used in DC-DC converter circuits for efficient power conversion.

Package Contents:

1 x CJ2310 N-Channel MOSFET SOT-23 SMD Package

Note: Product images are for illustrative purposes only and may differ from the actual product.
