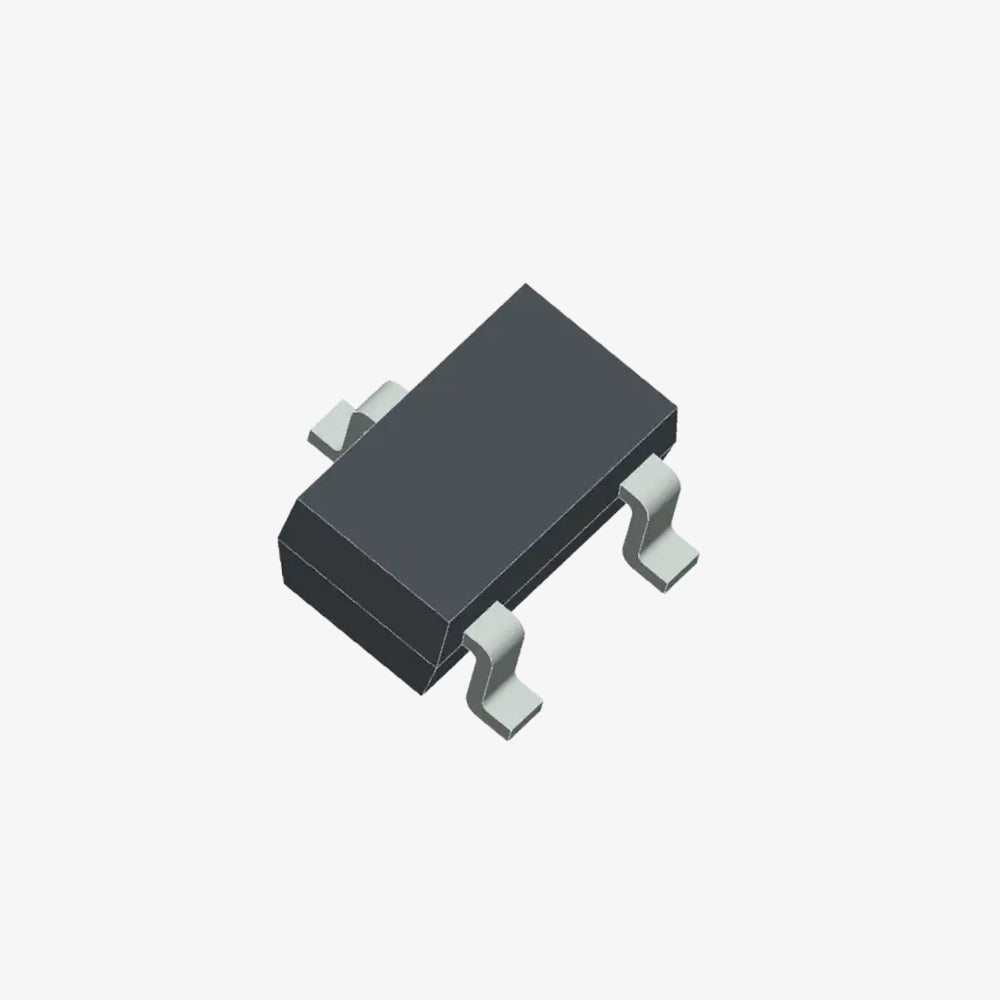

CJ3400 30V 5.8A 350mW N-Channel MOSFET SOT-23 SMD Package

The CJ3400 is an N-Channel MOSFET designed for efficient switching and amplification in a variety of electronic applications. It is housed in a compact SOT-23 surface-mount device (SMD) package, making it suitable for high-density circuit designs.

Key Features:

1. Type: N-Channel
2. Package: SOT-23 (3-pin surface-mount package)
3. Maximum Voltage (VDS): 30V
4. Maximum Current (ID): 5.8A
5. Power Dissipation (Ptot): 350mW
6. Low On-Resistance (RDS(on)): Typically 25 mΩ at VGS = 10V
7. Fast Switching Speed: Ideal for high-speed applications
8. Gate Threshold Voltage (VGS(th)): Typically 1.0V

Electrical Characteristics:

• Drain-Source Voltage (VDS): 30V
• Gate-Source Voltage (VGS): ±20V
• Continuous Drain Current (ID): 5.8A
• Pulsed Drain Current (IDM): 20A
• Power Dissipation (Ptot): 350mW
• On-Resistance (RDS(on)):
  • 25 mΩ at VGS = 10V
  • 40 mΩ at VGS = 4.5V
• Gate Charge (Qg): Typically 9nC

Package and Pin Configuration:

The CJ3400 MOSFET is housed in a compact SOT-23 package with three pins:

• Pin 1: Gate (G)
• Pin 2: Source (S)
• Pin 3: Drain (D)

Note: Product images are for illustrative purposes only and may differ from the actual product.
