CJ3407 30V 4.1A 350mW P-Channel MOSFET SOT-23 SMD Package

The CJ3407 is a P-Channel MOSFET designed for efficient switching and amplification in various electronic applications. It is housed in a small SOT-23 surface-mount device (SMD) package, making it suitable for compact and high-density circuit designs.

Key Features:

1. Type: P-Channel
2. Package: SOT-23 (3-pin surface-mount package)
3. Maximum Voltage (VDS): -30V
4. Maximum Current (ID): -4.1A
5. Power Dissipation (Ptot): 350mW
6. Low On-Resistance (RDS(on)): Typically 70 mΩ at VGS = -10V
7. Fast Switching Speed: Suitable for high-speed applications
8. Gate Threshold Voltage (VGS(th)): Typically -1.3V

Electrical Characteristics:

• Drain-Source Voltage (VDS): -30V
• Gate-Source Voltage (VGS): ±20V
• Continuous Drain Current (ID): -4.1A
• Pulsed Drain Current (IDM): -20A
• Power Dissipation (Ptot): 350mW
• On-Resistance (RDS(on)):
  • 70 mΩ at VGS = -10V
  • 100 mΩ at VGS = -4.5V
• Gate Charge (Qg): Typically 10 nC

Package and Pin Configuration:

The CJ3407 MOSFET is housed in a compact SOT-23 package with three pins:

• Pin 1: Gate (G)
• Pin 2: Source (S)
• Pin 3: Drain (D)

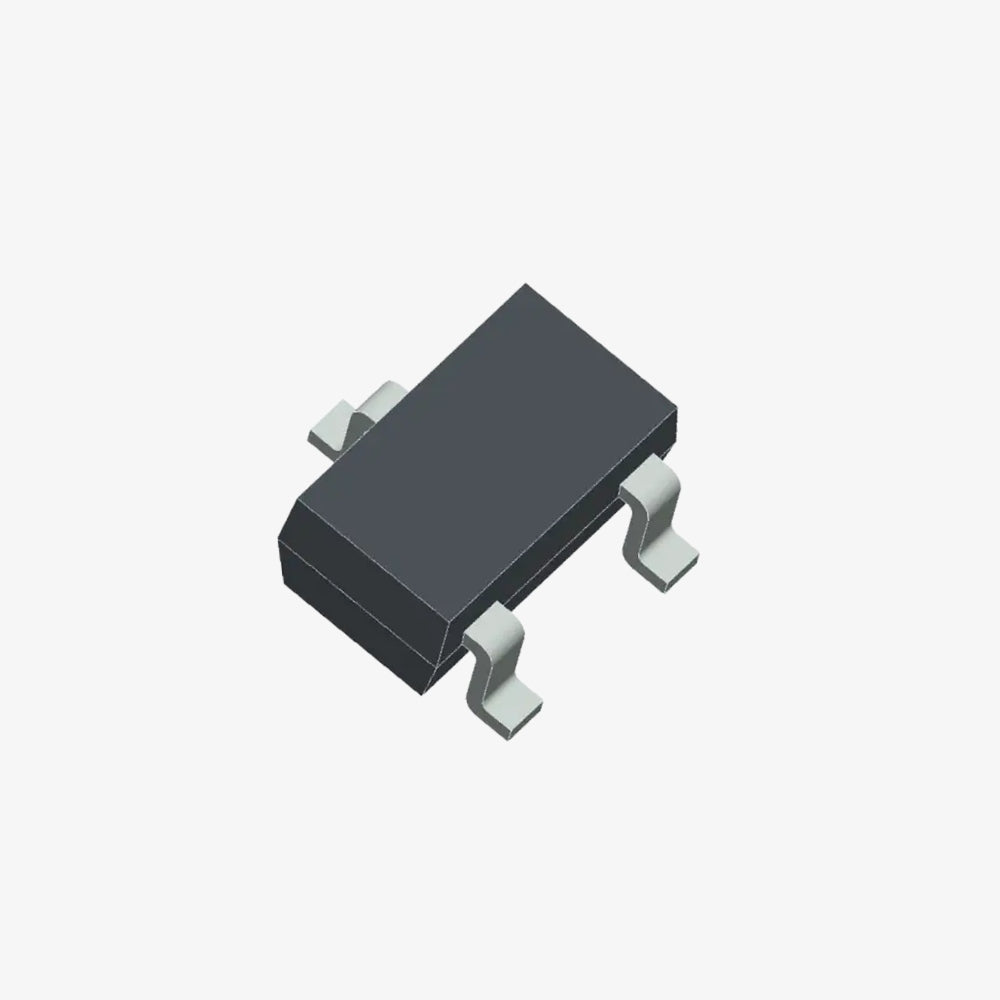

Note: Product images are for illustrative purposes only and may differ from the actual product.
