CJQ4459 MOSFET 30V 6.5A SOP-8 SMD Package

The CJQ4459 is an N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for high-efficiency switching and amplification applications. It is housed in an SOP-8 surface-mount device (SMD) package, making it suitable for high-density circuit board layouts. Here’s a detailed description of the product:

Key Features:

• Type: N-Channel
• Package: SOP-8 (Small Outline Package)
• Polarity: N-Channel
• Maximum Drain-Source Voltage (Vds): 30V
• Maximum Continuous Drain Current (Id): 6.5A
• Maximum Power Dissipation (Pd): 1.5W
• Low On-Resistance (Rds(on)): Typically 18mΩ at Vgs = 10V
• Gate Threshold Voltage (Vgs(th)): 1V to 3V

Applications:

• Load Switching: Ideal for switching low-voltage loads.
• Power Management: Suitable for use in power management applications in portable devices.
• Battery-Powered Applications: Commonly used in battery-powered applications due to its low on-resistance and high efficiency.
• DC-DC Converters: Can be used in DC-DC converter circuits for efficient power conversion.

Pin Configuration:

• Pin 1 (G): Gate
• Pin 2 (S): Source
• Pin 3 (S): Source
• Pin 4 (S): Source
• Pin 5 (D): Drain
• Pin 6 (D): Drain
• Pin 7 (D): Drain
• Pin 8 (D): Drain

Electrical Characteristics:

• Drain-Source Voltage (Vds): 30V max
• Gate-Source Voltage (Vgs): ±20V max
• Continuous Drain Current (Id): 6.5A max
• Power Dissipation (Pd): 1.5W max
• On-Resistance (Rds(on)): 18mΩ typical at Vgs = 10V
• Total Gate Charge (Qg): 9nC typical
• Turn-On Delay Time (td(on)): 10ns typical
• Turn-Off Delay Time (td(off)): 25ns typical

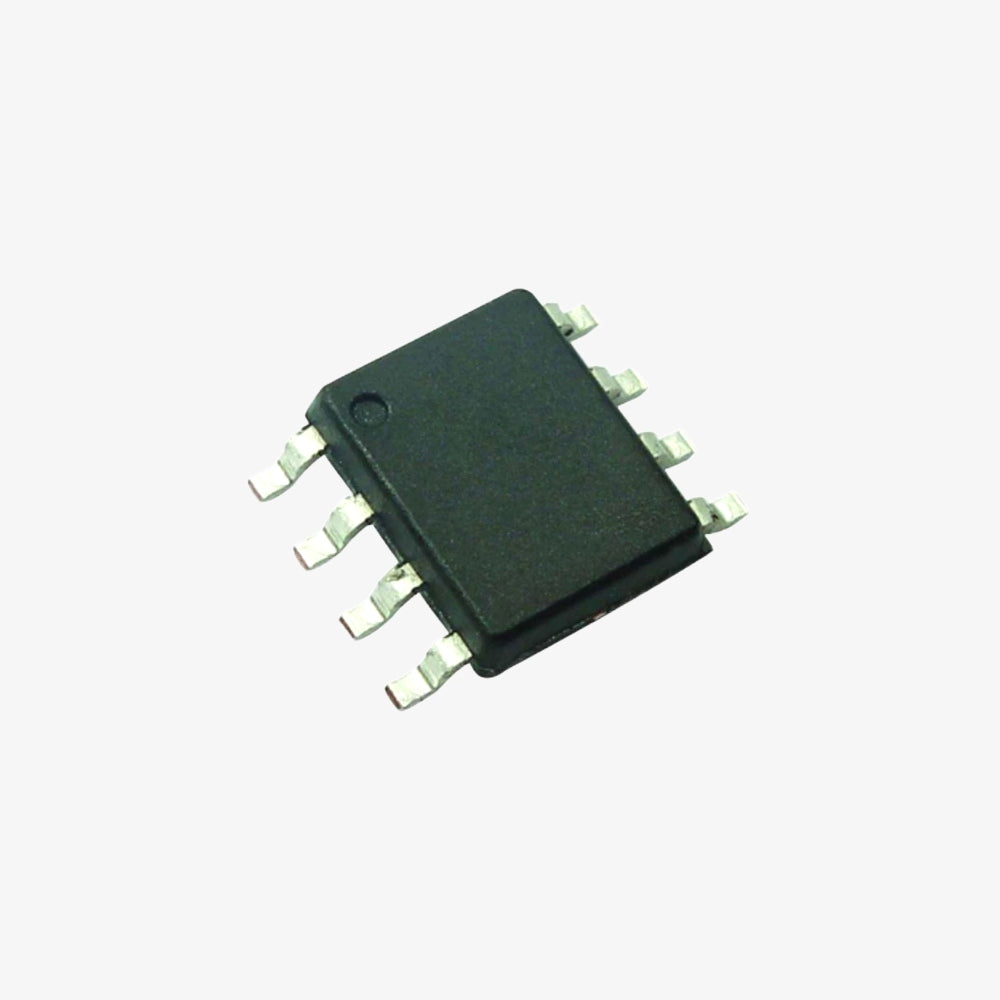

Note: Product images are for illustrative purposes only and may differ from the actual product.
