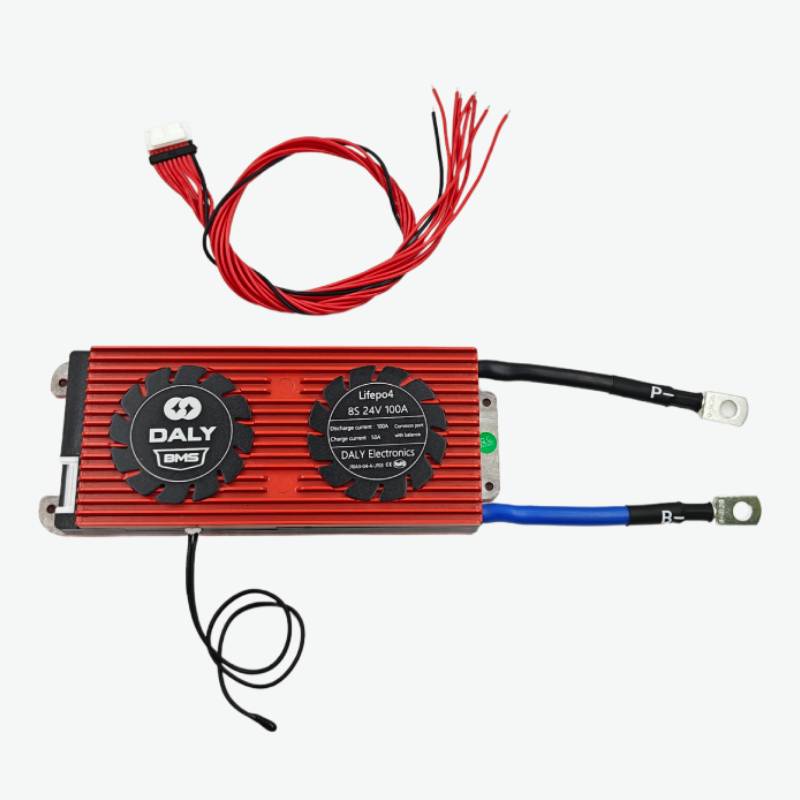

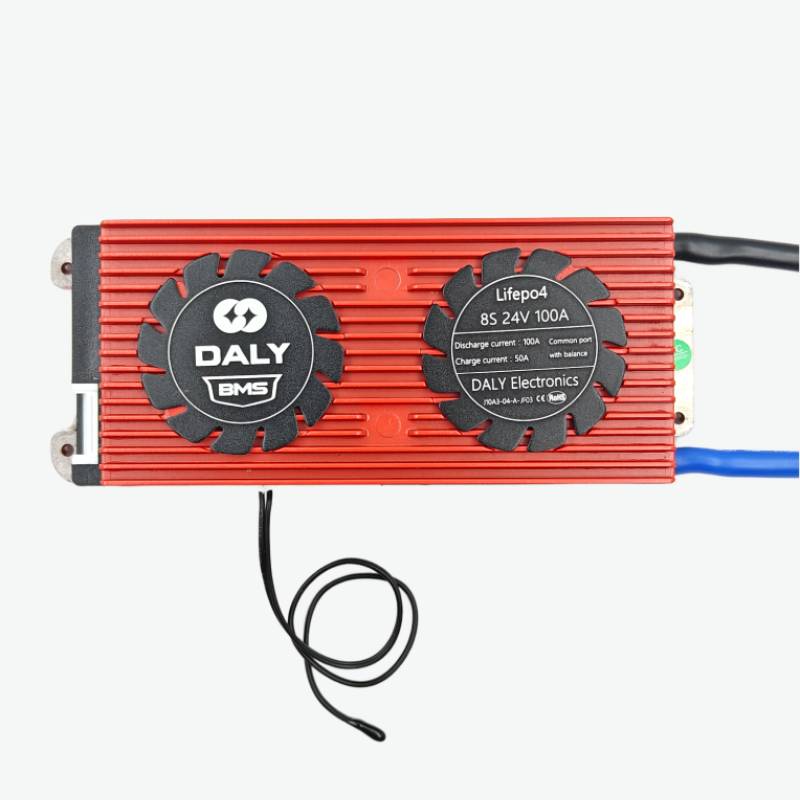

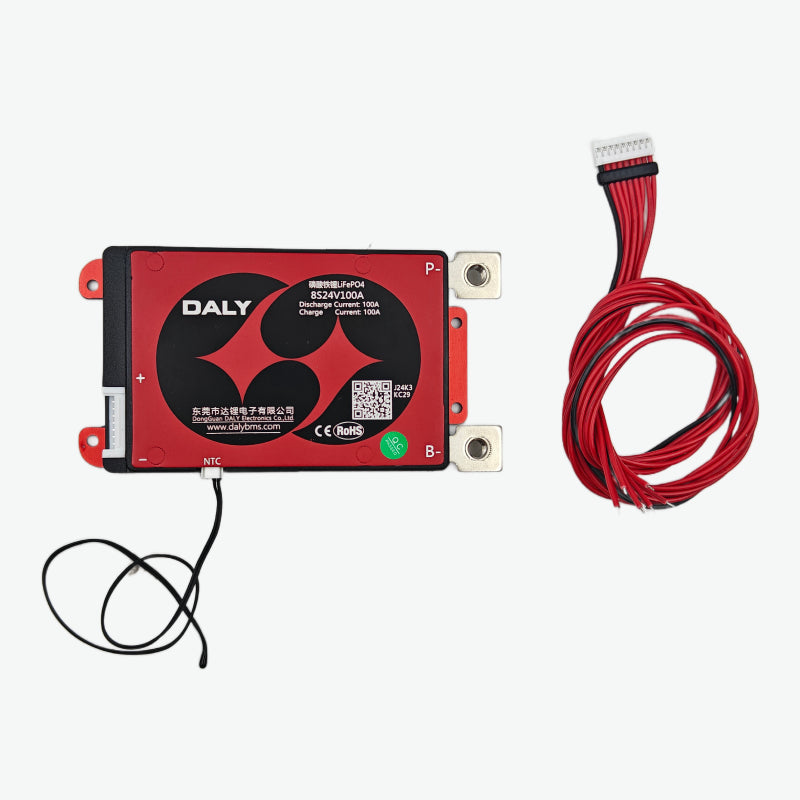

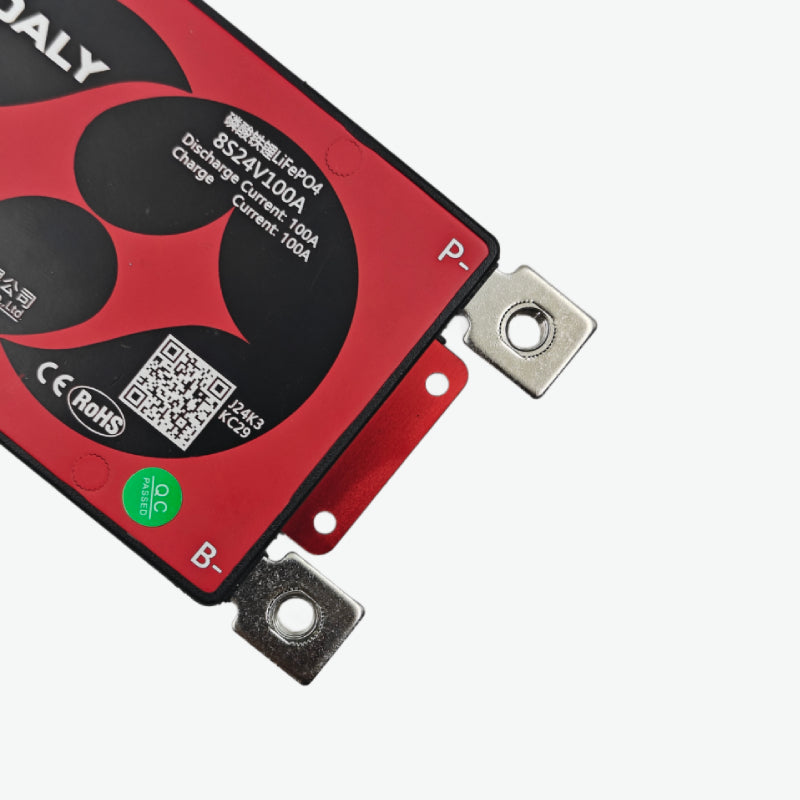

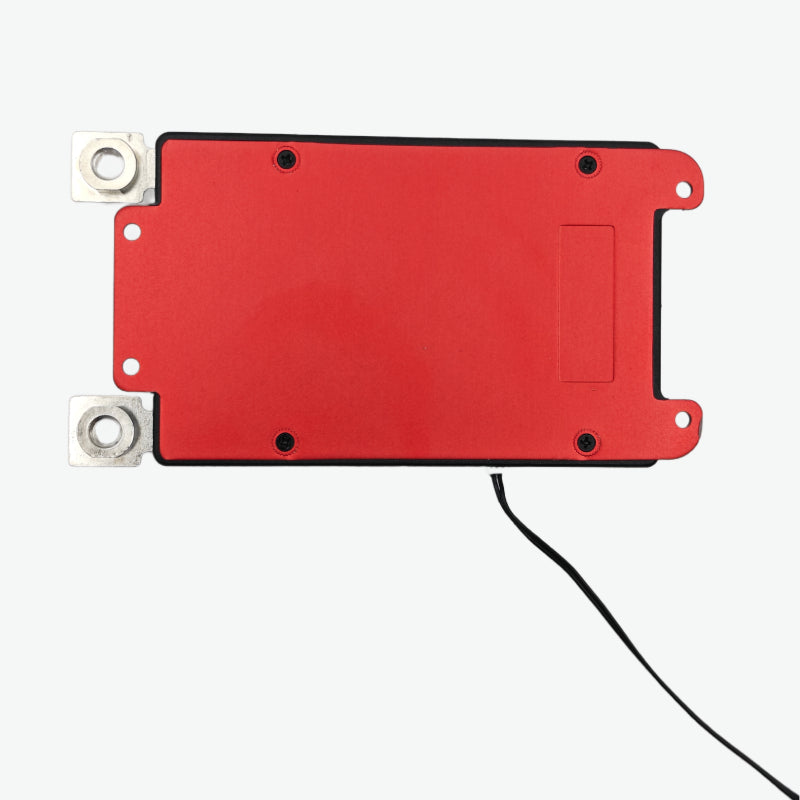

DALY LiFePO4 8S 24V 100A Waterproof Battery Management System - BMS Protection Board
DALY LiFePO4 8S 24V 100A Waterproof Battery Management System - BMS Protection Board
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share

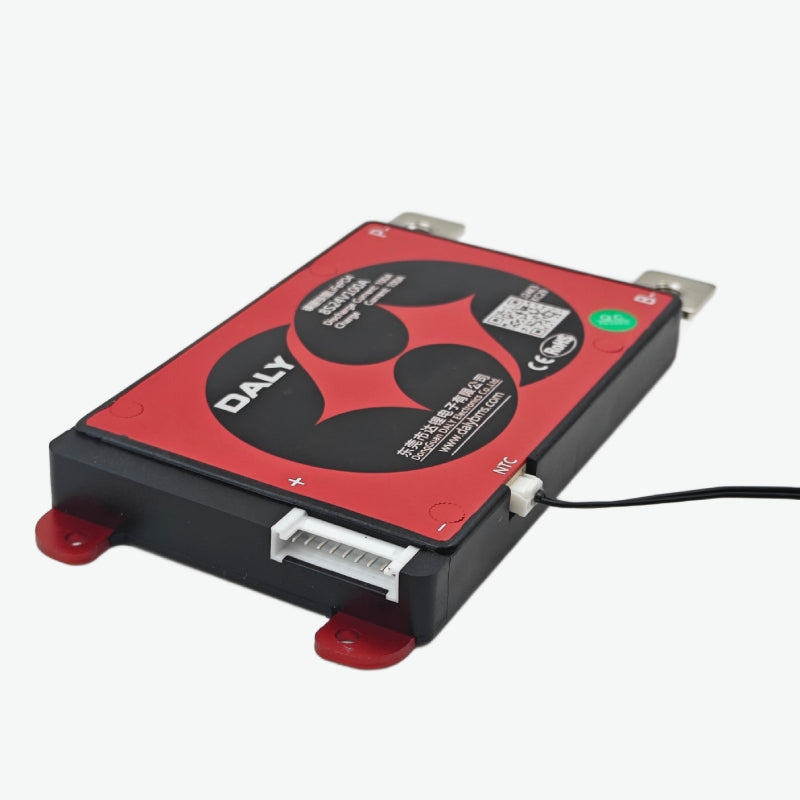

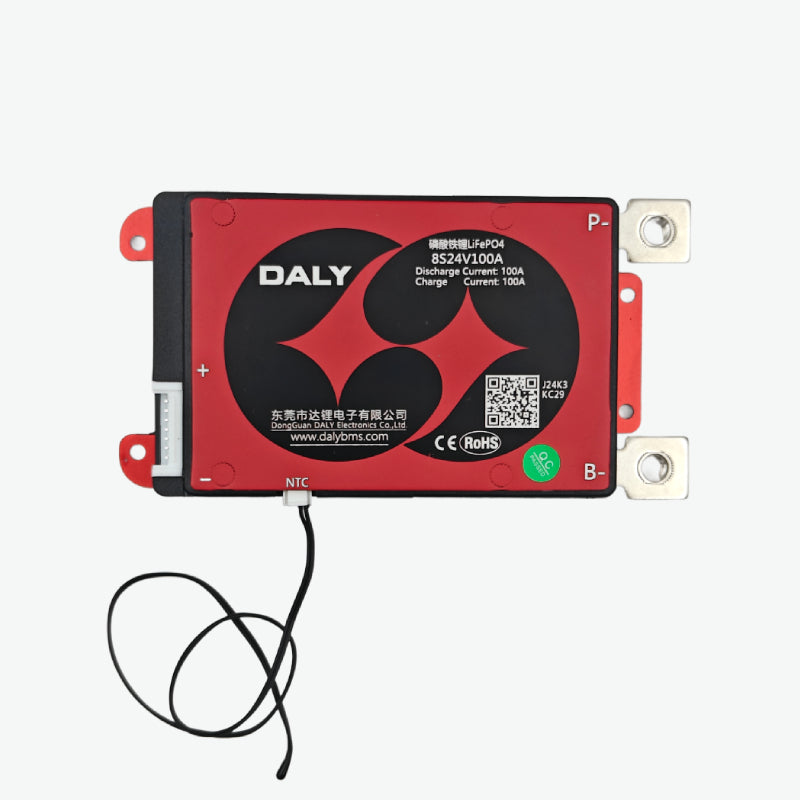

DALY LiFePO4 8S 100A is a Lithium Battery Protection Board (PCM BMS) designed for balance charging in LiFePO4 battery packs. It utilizes an A-level protective integrated circuit (IC) to ensure robust safety and efficient performance. With a 100A continuous discharge current, it is an ideal solution for high-demand applications that require reliable power. The board incorporates a power MOSFET with high voltage resistance and low internal resistance, and its integrated heat sink significantly enhances cooling performance, ensuring the system operates safely even under high loads.
DALY LiFePO4 8S 100A Waterproof BMS Features:
- State of charge calculations.
- Cell over-voltage and under-voltage protection.
- Intelligent passive battery balancing for optimal battery health.
- Fully sealed waterproof design (IP65 rated) providing dustproof, shockproof, and anti-squeezing protection for demanding environments.

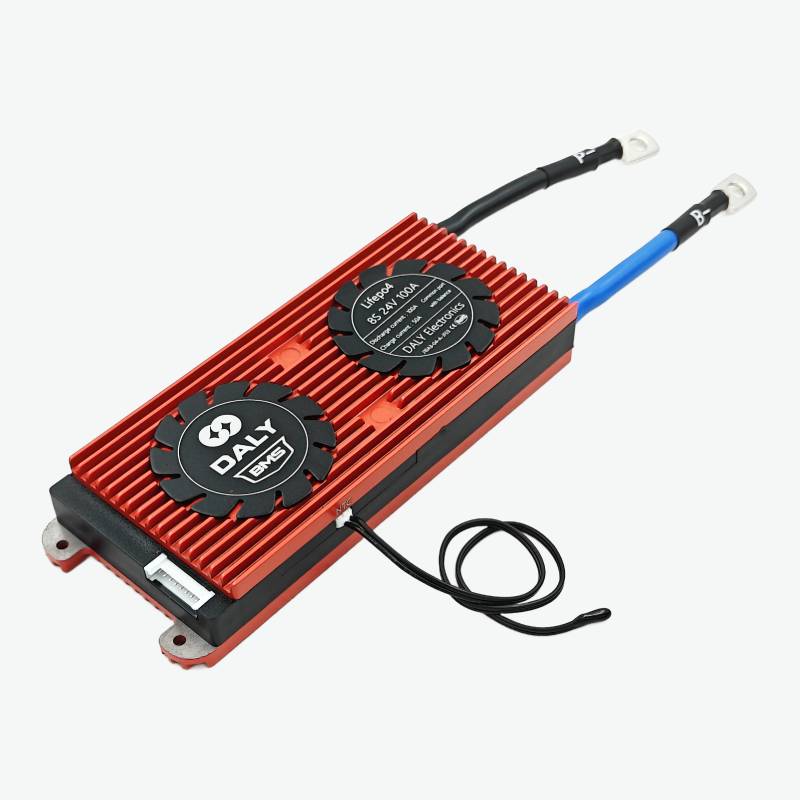

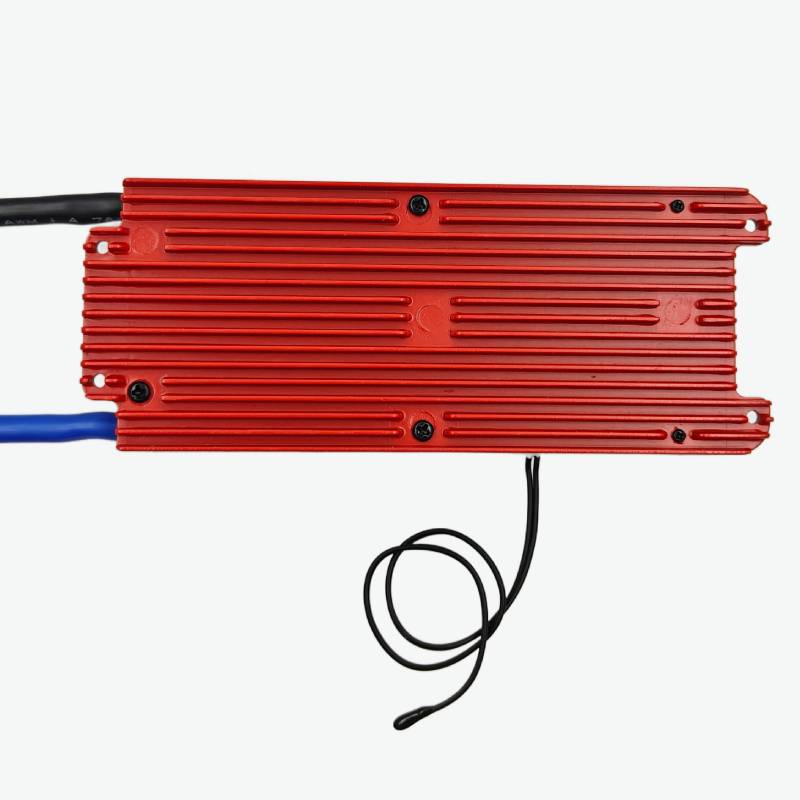

- Aluminum heat sink for enhanced heat dissipation.
DALY LiFePO4 8S 100A Waterproof BMS Specifications:
| Specification | Value |
|---|---|
| Model | LiFePO4 8S 100A Waterproof |
| Charge Voltage (V) | 29.2V |
| Charge Current (A) | 50A |
| Balance Current (mA) | 30±5 |
| Balance Detect Voltage (V) | 3.50V |
| Working Current (uA) | 100uA |
| Overcharge Detect Voltage (V) | 3.65V ±0.05 |
| Overcharge Release Voltage (V) | 3.50V ±0.05 |
| Over-Discharge Detect Voltage (V) | 2.00V ±0.1 |
| Over-Discharge Release Voltage (V) | 2.50V ±0.1 |
| Working Temperature Range (°C) | -20°C to 60°C |
| Length (mm) | 125mm |
| Width (mm) | 65mm |
| Height (mm) | 13mm |
Â
Package Includes:
1 x DALY LiFePO4 8S 100A Waterproof Battery Management System - BMS Protection Board
