DALY LiFePo4 8S 24V 60A Smart Waterproof Battery Management System Common port with Balance- BMS Protection Board

DALY LiFePo4 8S 24V 60A Smart Waterproof Battery Management System Common port with Balance- BMS Protection Board

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

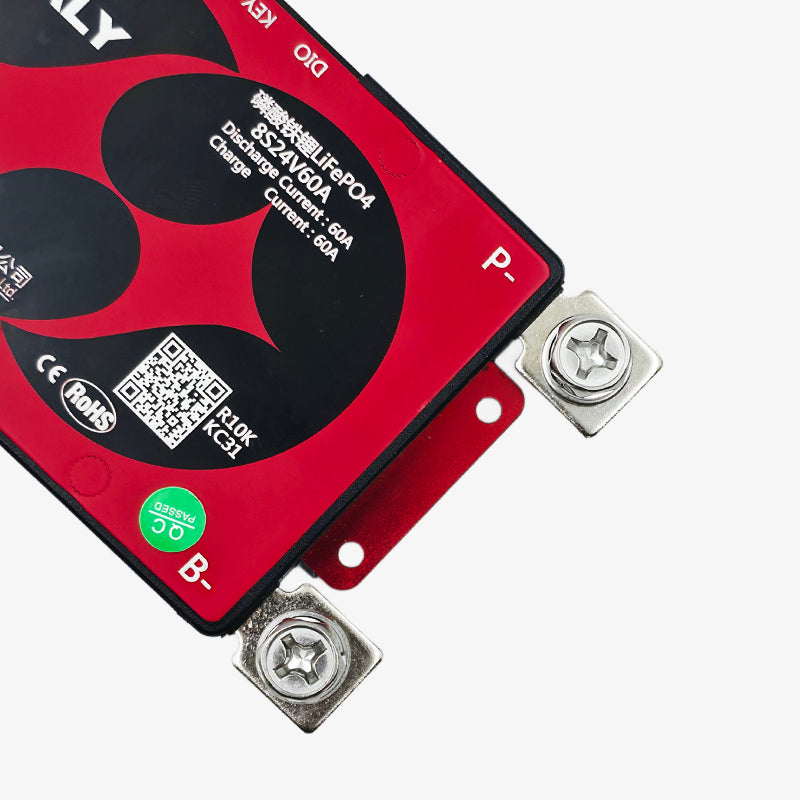

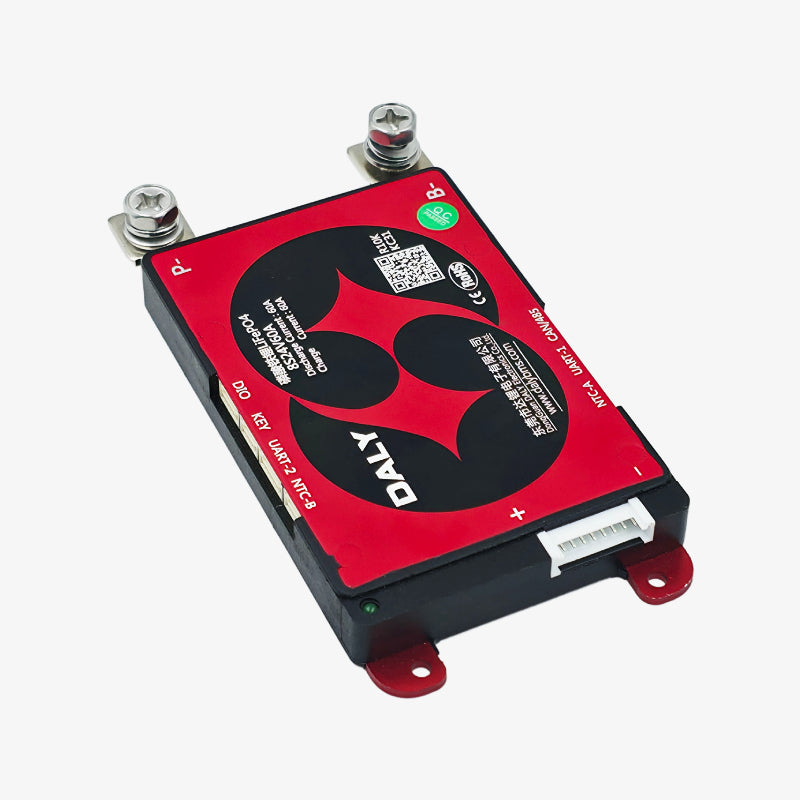

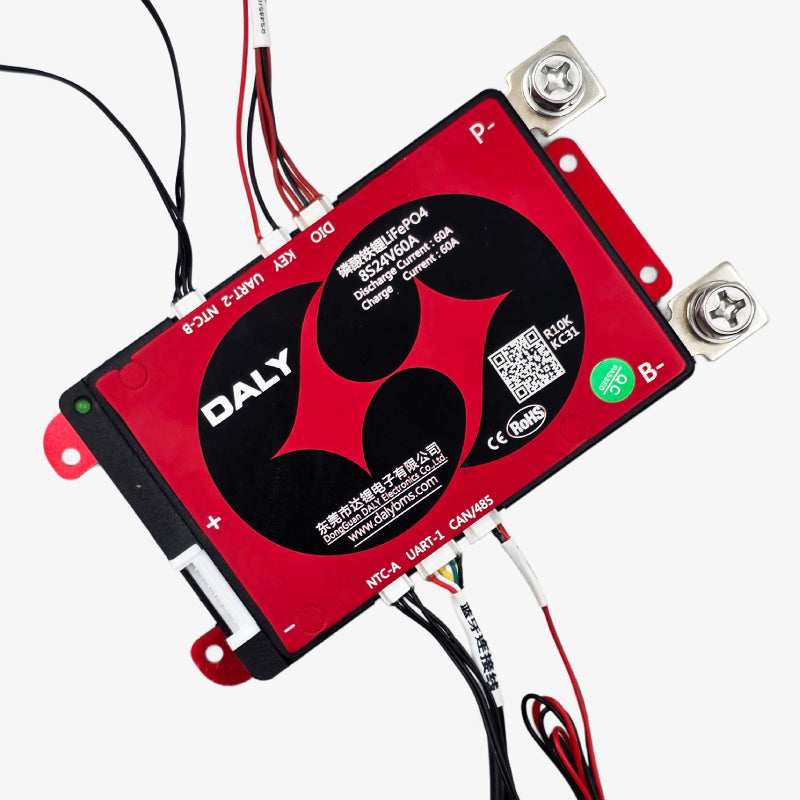

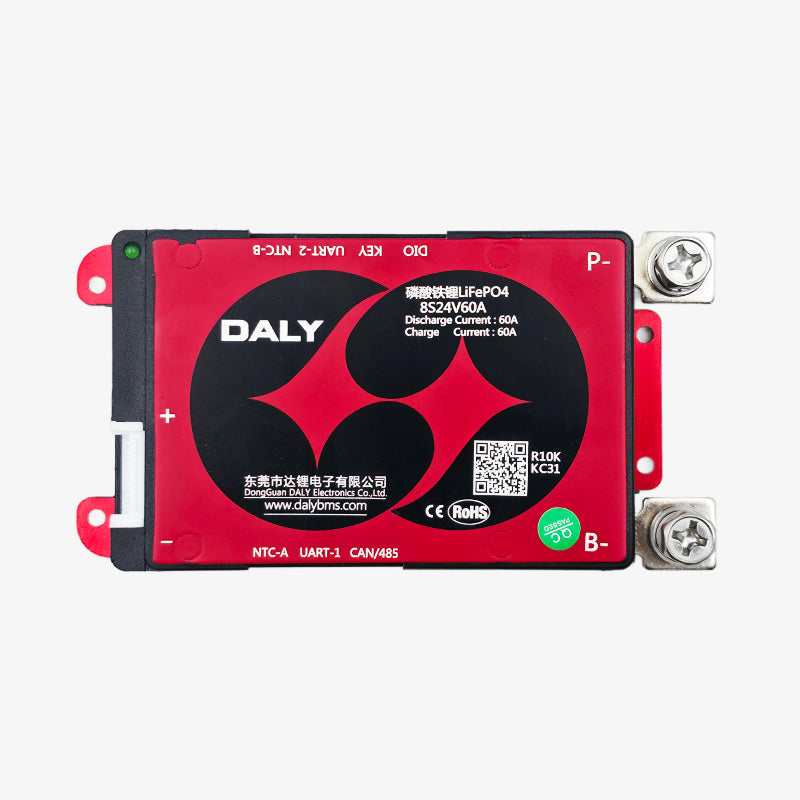

DALY LiFePo4 8S 24V 60A Smart BMS is a Lithium Battery Management System designed for safe and efficient operation of 8-cell LiFePo4 battery packs. It employs a high-precision protective control circuit that ensures reliable performance and long-term stability. Its capability to support a continuous discharge current of 60A makes it suitable for a wide range of medium to high-power applications.

Features:

  1. State of charge monitoring.
  2. Cell over-voltage and under-voltage protection.
  3. Intelligent passive balancing for all 8 cells.

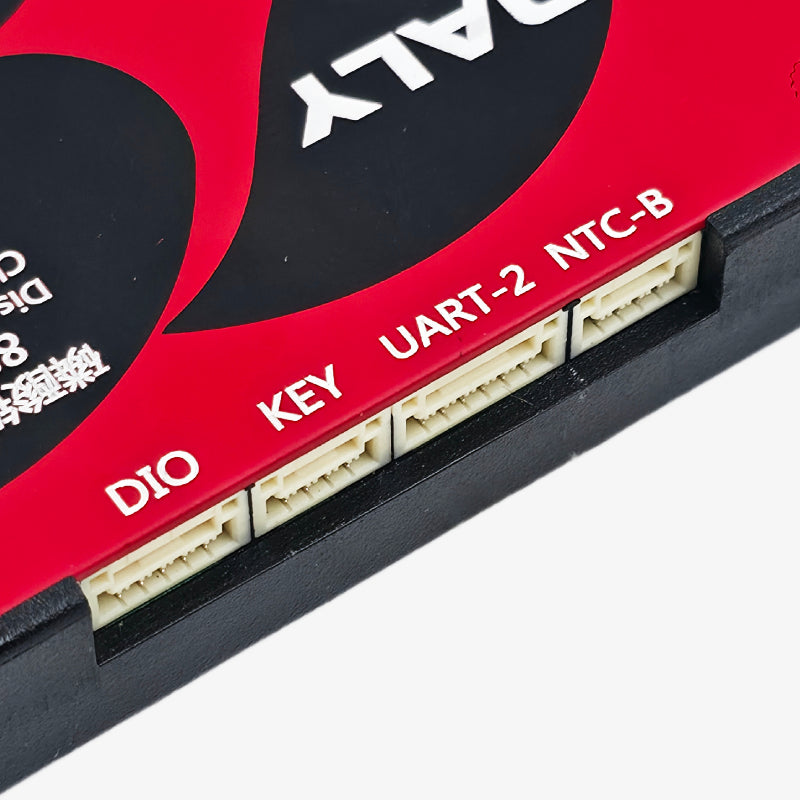

  4. Multi-communication support for real-time data and diagnostics.
  5. Protection against over-current, short circuit, and temperature faults.
  6. Durable and sealed construction for improved resistance to dust, vibration, and moisture.

Specification:

Specification Value
Model LiFePo4 8S 24V 60A Smart BMS
Battery Configuration 8S LiFePo4 (25.6V Nominal)
Continuous Discharge Current 60A
Charge Current (A) 30A
Charge Voltage (V) 29.2V
Overcharge Detect Voltage (V) 3.75�.80V
Over Discharge Detect Voltage (V) 2.0�.2V
Balance Current (mA) 30 ±5

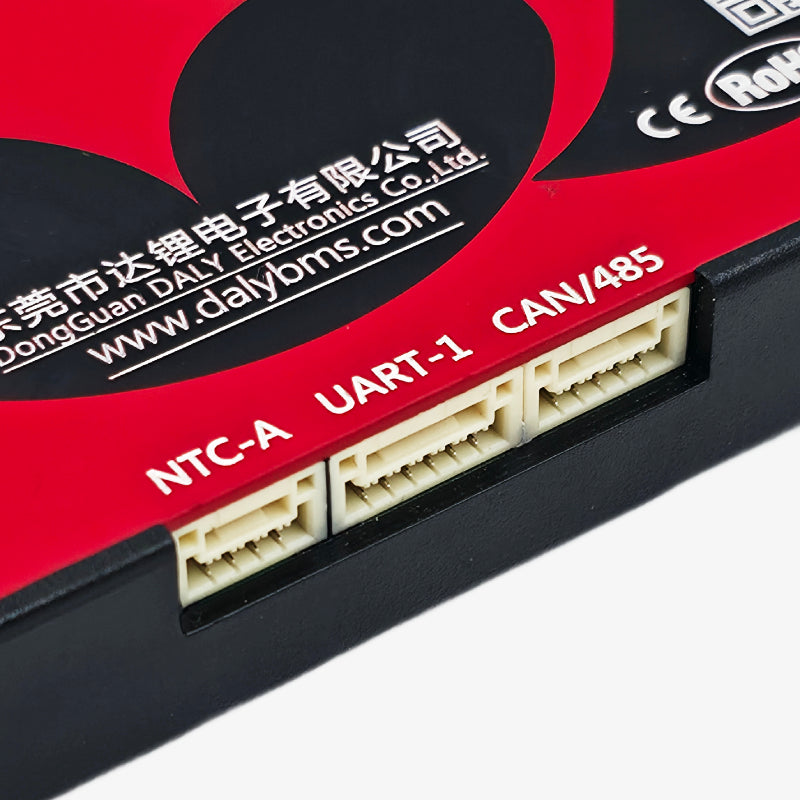

Communication CAN / UART / RS485
Short Circuit Protection Yes (Auto Recovery)
Operating Temperature (°C) -20 to 70

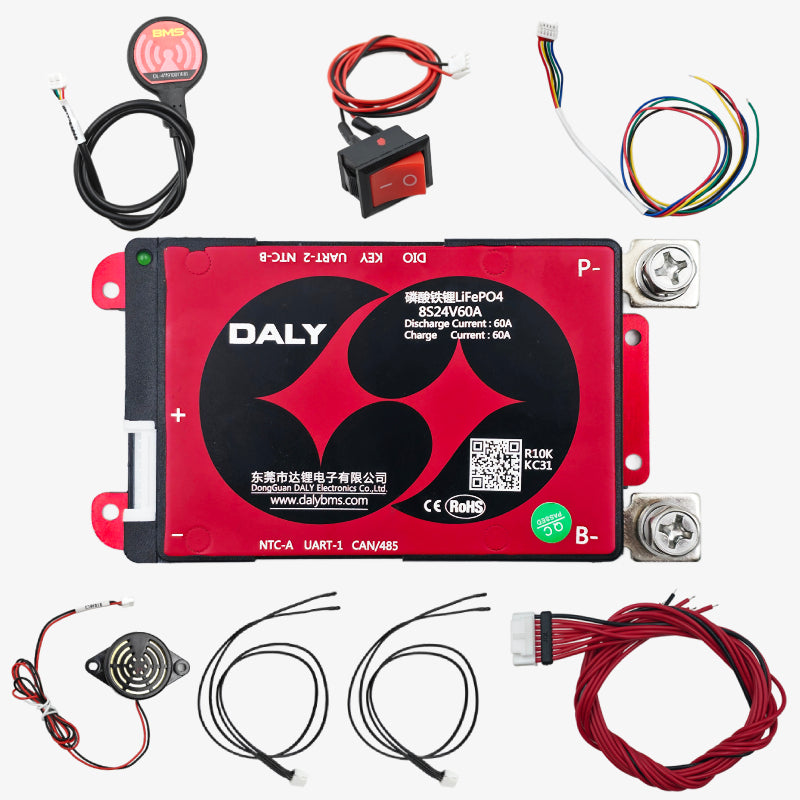

Package Includes:

1 × DALY LiFePo4 8S 24V 60A Smart Waterproof Battery Management System Common port with Balance- BMS Protection Board
