DALY LiFePo4 8S 24V 60A Waterproof Battery Management System �BMS Protection Board
DALY LiFePo4 8S 24V 60A Waterproof Battery Management System �BMS Protection Board
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
DALY LiFePo4 8S 24V 60A Waterproof BMS is a rugged and reliable Battery Management System (BMS) designed for 8-cell LiFePo4 battery packs. Engineered with a fully sealed waterproof casing, it offers robust protection in challenging environments. It ensures safe and balanced charging, supports a continuous discharge current of 60A, and integrates high-performance MOSFETs with low internal resistance for optimal efficiency and heat management.
DALY LiFePo4 8S 24V 60A Waterproof BMS Features:
- Waterproof, dustproof, and shock-resistant design
- Balanced charging for all 8 LiFePo4 cells
- Overcharge, over-discharge, overcurrent, and short circuit protection
- High-quality MOSFETs for efficient switching
- Suitable for solar systems, electric vehicles, and marine batteries
DALY LiFePo4 8S 25.6V 60A Waterproof BMS Specification:
| Specification | Value |
|---|---|
| Model | LiFePo4 8S 24V 60A |
| Charge Voltage (V) | 29.2 |
| Charge Current (A) | 30 |
| Continuous Discharge (A) | 60 |
| Balance Current (mA) | 30 ±5 |
| Balance Detect Voltage (V) | 3.50 |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.55 ±0.05 |
| Over Discharge Detect Voltage (V) | 2.2 ±0.1 |
| Over Discharge Release Voltage (V) | 2.5 ±0.1 |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 80 x 61 x 12 |

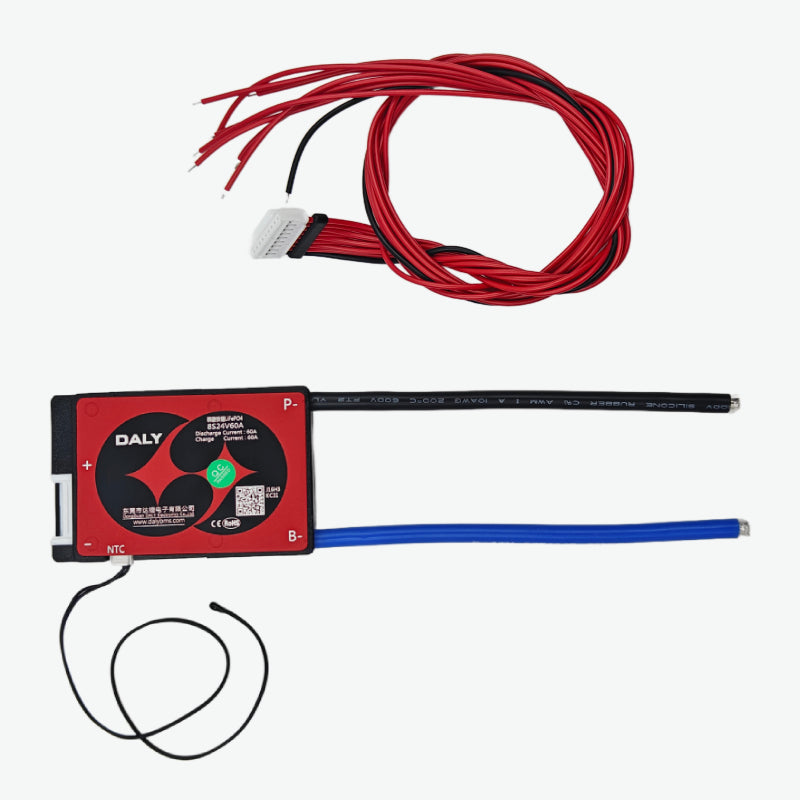

Package Includes:
1 x DALY LiFePo4 8S 24V 60A Waterproof Battery Management System �BMS Protection Board
