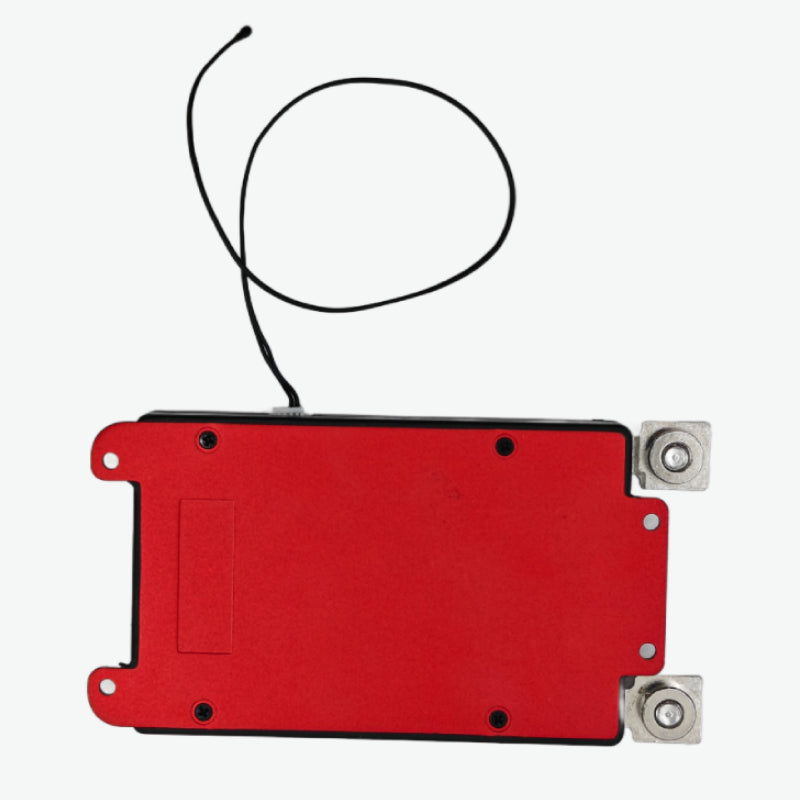

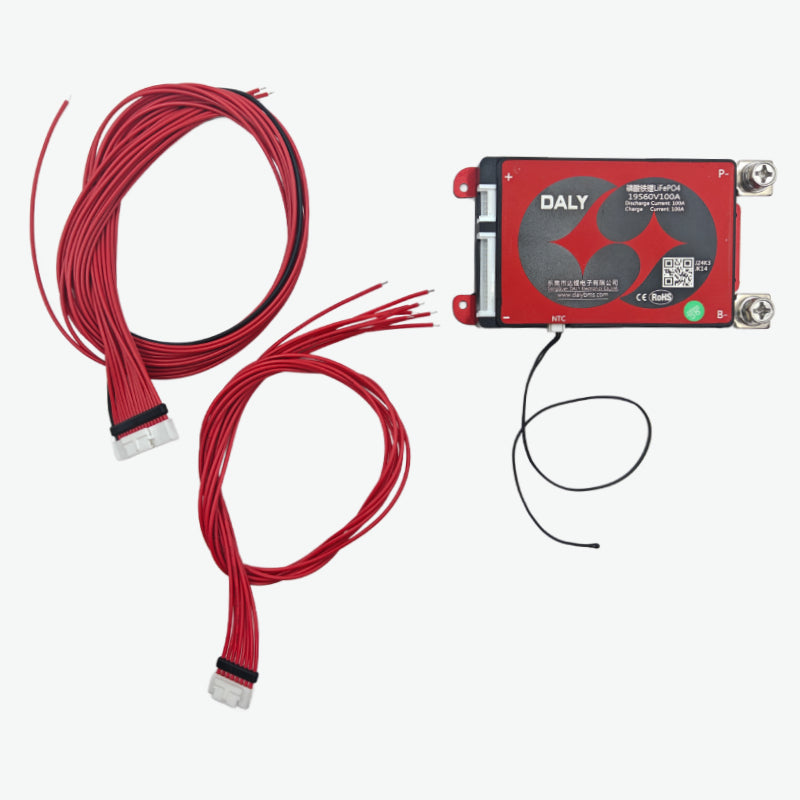

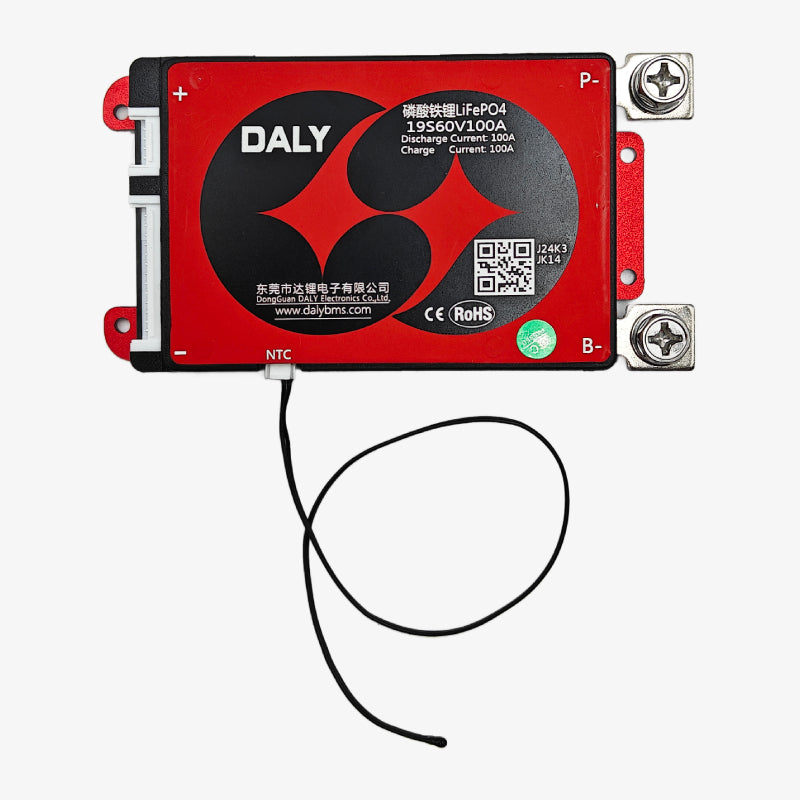

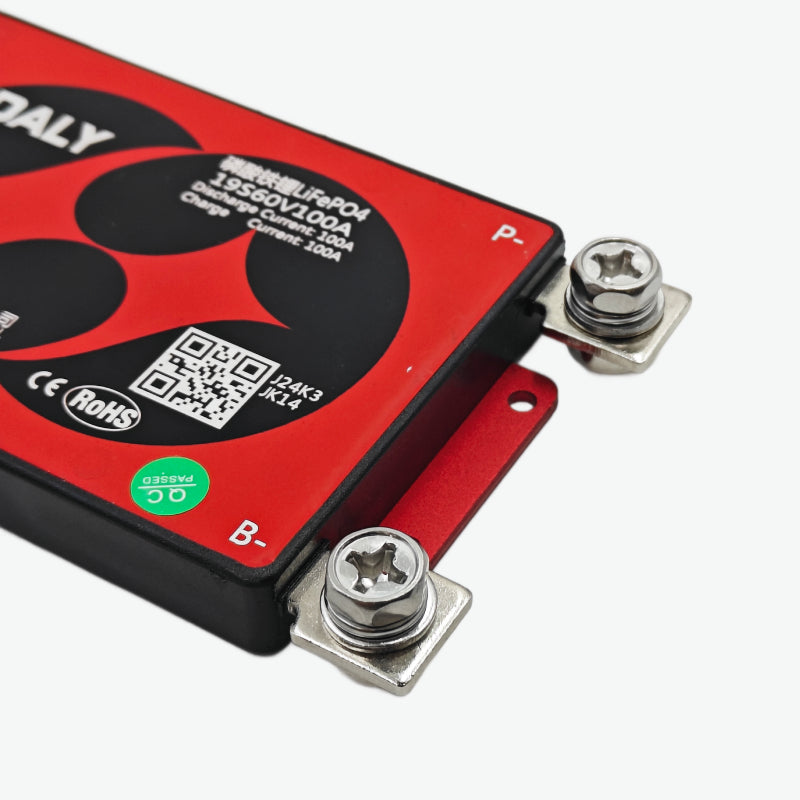

DALY LiFePo4 19S 60V 100A Waterproof Battery Management System - BMS Protection Board
DALY LiFePo4 19S 60V 100A Waterproof Battery Management System - BMS Protection Board
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
DALY LiFePo4 19S 60V 100A BMS is a Lithium Battery Protection Board (PCM BMS) designed for balance charging in LiFePo4 battery packs. It employs an A-level protective integrated circuit (IC) that ensures robust safety and efficient performance. Its high load capability with a 100A continuous discharge current makes it an ideal solution for high-demand battery applications. The board incorporates a power MOSFET with high voltage resistance and low internal resistance, while an integrated heat sink significantly aids in cooling.
DALY LiFePo4 19S 60V 100A BMS Module Features:
- State of charge calculations.
- Cell over-voltage and under-voltage protection.
- Intelligent battery balancing (passive).
- Fully sealed waterproof technology with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.
Specification:
| Specification | Value |
|---|---|
| Model | LiFePo4 19S 60V 100A |
| Charge Voltage (V) | 69,35 |
| Charge Current (A) | 100 |
| Balance Current (mA) | 30±5 |
| Balance Detect Voltage (V) | 3.6 |
| Working Current (uA) | 100 |
| Overcharge Detect Voltage (V) | 3.75±0.05 |
| Overcharge Release Voltage (V) | 3.55±0.05 |
| Over Discharge Detect (V) | 2.2±0.05 |
| Over Discharge Release (V) | Off load |
| Working Temperature Range (°C) | -20 to 70 |
| Cable Size (AWG) | 10 |
| Length (mm) | 65 |
| Width (mm) | 125 |
| Height (mm) | 13 |
Â
Package Includes:
1 x DALY LiFePo4 19S 60V 100A Waterproof Battery Management System - BMS Protection Board
