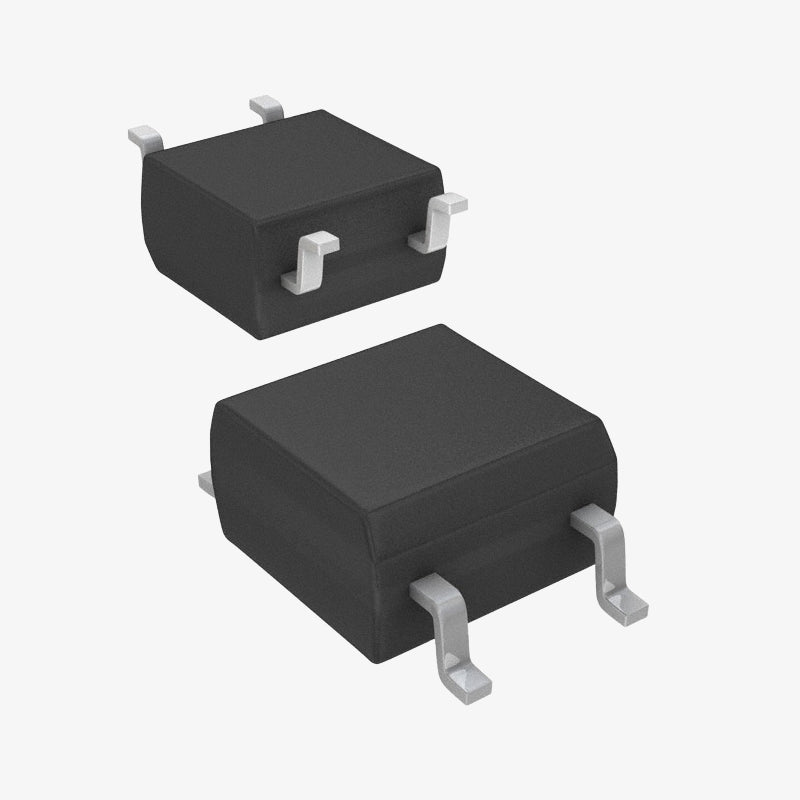

DB107S Bridge Rectifier - SOP-4 SMD Package

The DB107S is a single-phase bridge rectifier in a compact SOP-4 SMD package, designed for converting AC input into DC output in a wide range of power supply and adapter circuits. This bridge rectifier integrates four diodes in a full-bridge configuration to efficiently handle rectification of input voltages. It offers high surge current capability, low forward voltage drop, and reliable thermal performance in compact designs, making it ideal for applications in AC-DC converters, LED drivers, and charger circuits.

Features of DB107S Bridge Rectifier IC:

1. Single-phase full-wave bridge rectifier for AC to DC conversion
2. Compact SOP-4 SMD package for space-saving PCB layouts
3. Reverse voltage capability up to 1000V
4. Forward average current up to 1.5A
5. Peak surge current capability for reliable startup
6. Low forward voltage drop ensures efficiency
7. Ideal for power adapters, LED drivers, and SMPS circuits
8. RoHS compliant and suitable for automated SMD assembly

Specifications of DB107S:

• Model: DB107S
• Type: Bridge Rectifier
• Peak Repetitive Reverse Voltage: 1000V
• Average Forward Current: 1.5A
• Peak Forward Surge Current: 50A
• Forward Voltage Drop: 1.1V (typical)
• Package: SOP-4 â€?SMD
• Operating Temperature Range: -55°C to +150°C

Package Includes:

1 × DB107S Bridge Rectifier â€?SOP-4 SMD Package
