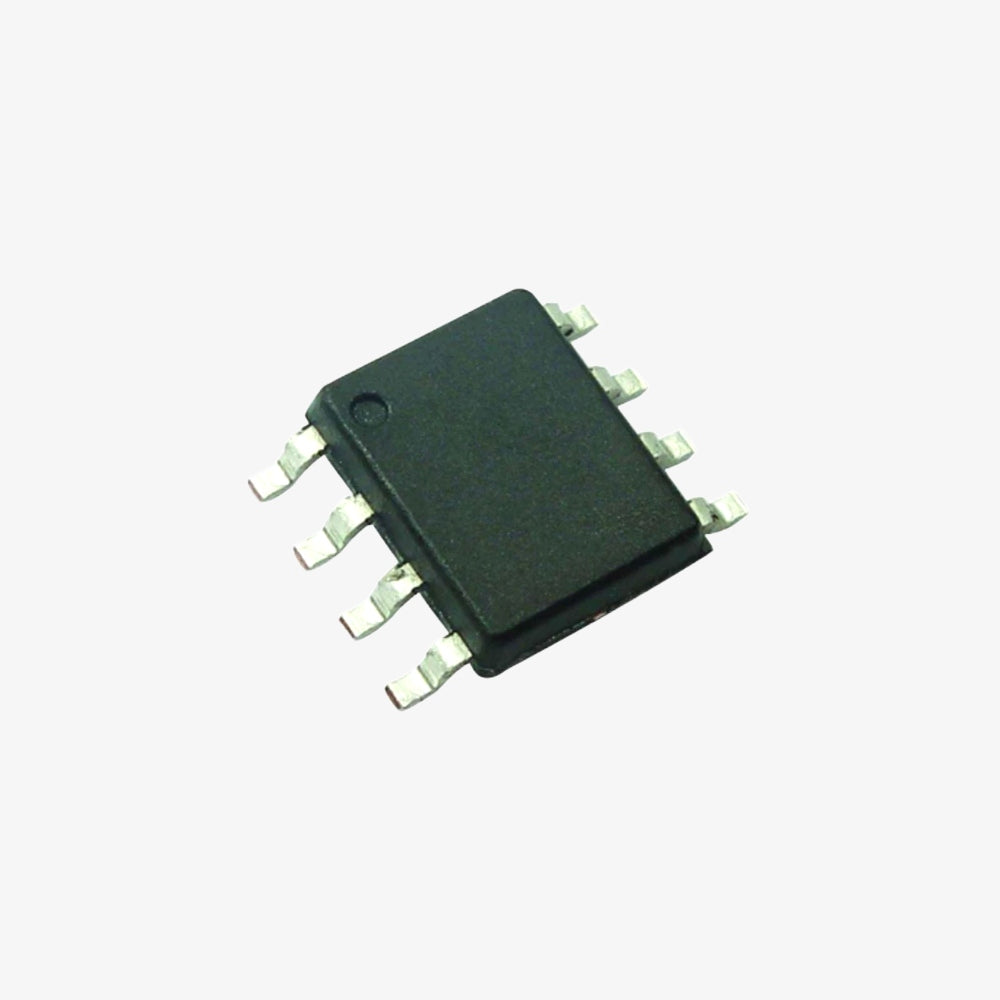

DS3695 Multipoint RS485/RS422 Transceivers IC - SOP-8 SMD Package

The DS3695 is a multipoint RS485/RS422 transceiver IC designed for high-speed and reliable communication over long distances. It is suitable for use in industrial and communication systems where robust data transmission is required. The DS3695 is housed in a SOP-8 SMD package, providing a compact and efficient solution for RS485/RS422 communication.

Specifications:

• IC Type: RS485/RS422 Transceiver
• Package Type: SOP-8 SMD
• Package Size: 8 Pins
• Data Rate: Up to 10 Mbps
• Input Voltage Range: ±7 V
• Supply Voltage: 3.3 V to 5 V
• Operating Temperature Range: -40°C to +85°C

Pin Configuration:

1. RO: Receiver Output
2. RE: Receiver Enable
3. DE: Driver Enable
4. DI: Driver Input
5. GND: Ground
6. A: Non-inverting Input/Output
7. B: Inverting Input/Output
8. VCC: Supply Voltage

Features:

• High-speed data transmission up to 10 Mbps
• Differential signaling for noise immunity
• Low power consumption
• Built-in failsafe features for reliable operation
• Compact SOP-8 package for space-efficient designs

Applications:

• Industrial automation
• Data acquisition systems
• Networking and communication systems
• Point-to-point and multipoint communication

Package Includes:

1 x DS3695 Multipoint RS485/RS422 Transceivers IC (SOP-8 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
