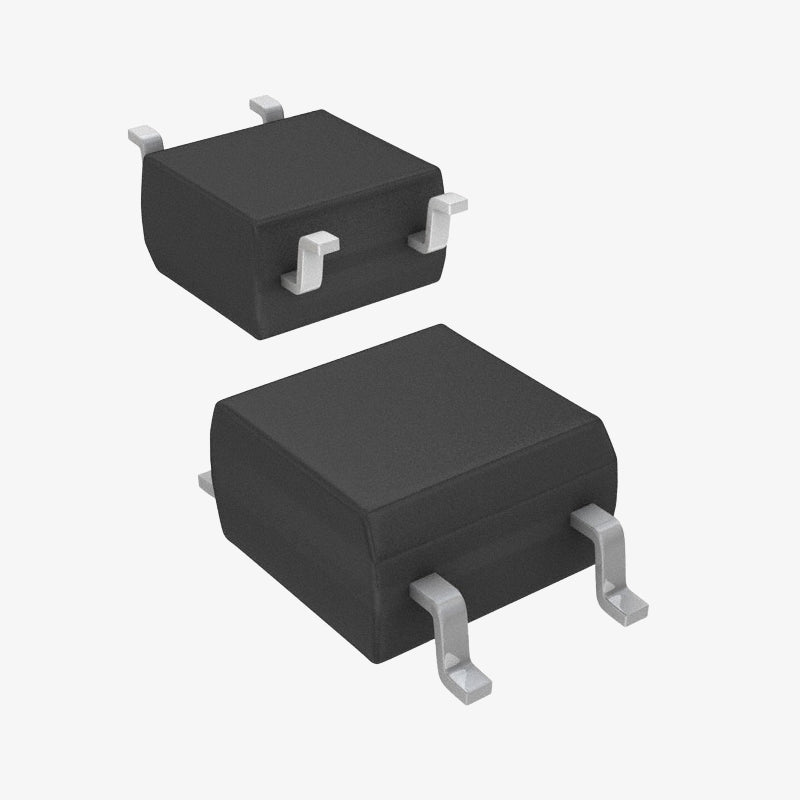

EL357N Optocoupler IC - SOP-4 SMD Package

The EL357N(C)(TA)-G is a high-performance optocoupler IC manufactured by Everlight, featuring a single-channel configuration with a phototransistor output. Designed for digital signal isolation and low-speed data communication, it integrates an infrared LED and a phototransistor inside a compact SOP-4 SMD package. With a high isolation voltage of 3750 Vrms and a wide current transfer ratio (CTR), this optocoupler is ideal for power supplies, relays, AC adapters, and microcontroller interfacing in noisy environments. The EL357N ensures robust performance while maintaining minimal board space.

Features of EL357N(C)(TA)-G Optocoupler IC:

1. Single-channel phototransistor output optocoupler
2. Compact SOP-4 surface-mount package
3. High isolation voltage of 3750 Vrms for safe signal separation
4. Wide CTR range: 50% to 600%
5. Low input current requirement and fast response
6. Suitable for signal isolation in SMPS, relays, and AC adapters
7. RoHS compliant and halogen-free
8. Manufactured by Everlight with industry-standard reliability

Specifications of EL357N(C)(TA)-G:

• Model: EL357N(C)(TA)-G
• Function: Single-channel Optocoupler
• Input Type: Infrared LED
• Output Type: Phototransistor
• CTR Range: 50% â€?600%
• Isolation Voltage: 3750 Vrms
• Supply Current (IF): 5 mA (typical)
• Collector-Emitter Voltage: 80V max
• Switching Time: 2 µs (typical)
• Package: SOP-4 â€?SMD
• Operating Temperature: -55°C to +110°C
• Manufacturer: Everlight

Package Includes:

1 × EL357N(C)(TA)-G Optocoupler IC â€?SOP-4 SMD Package
