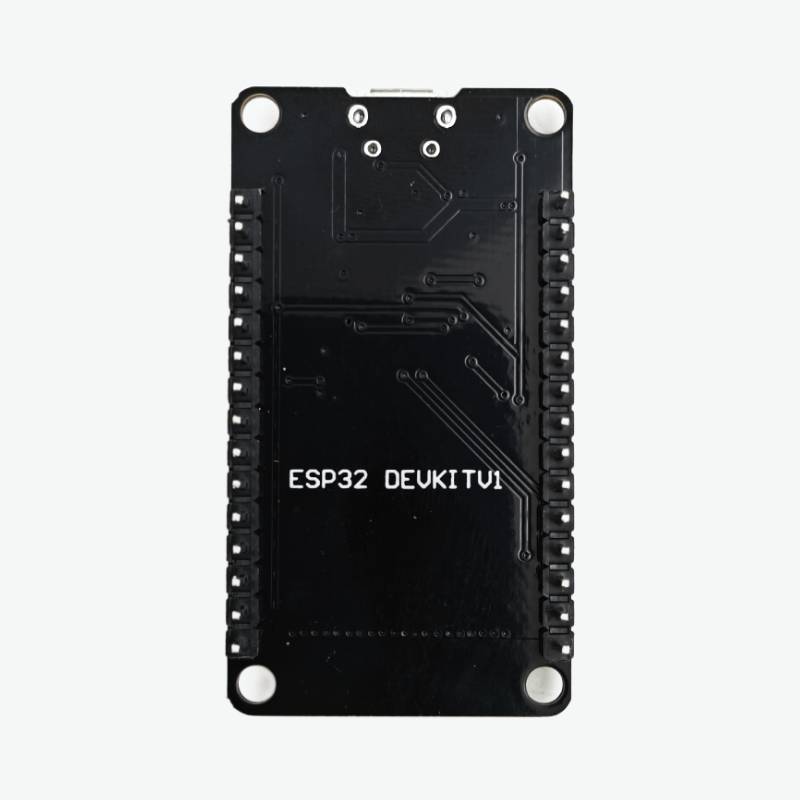

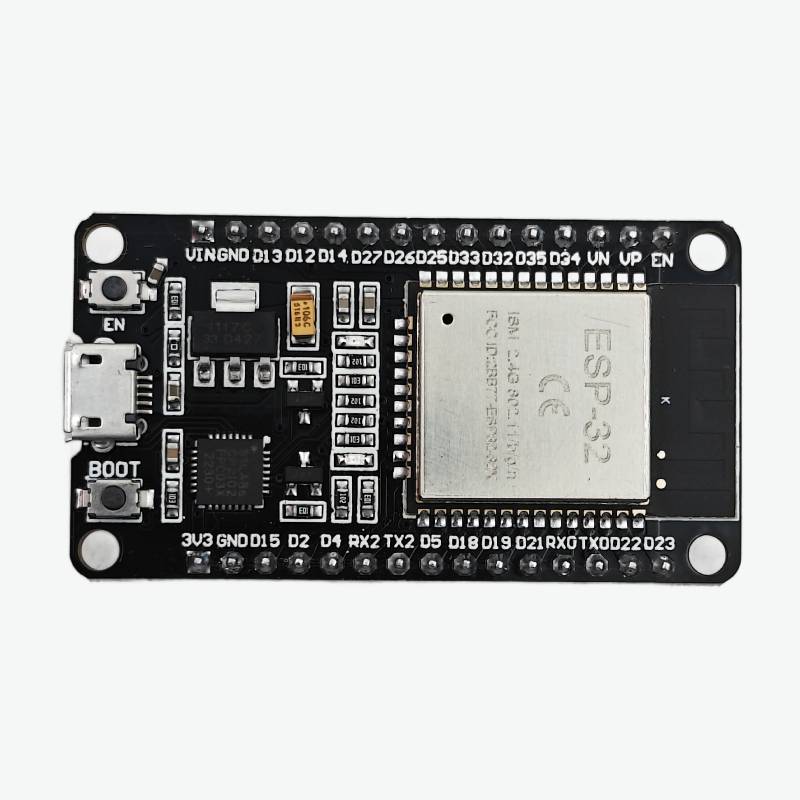

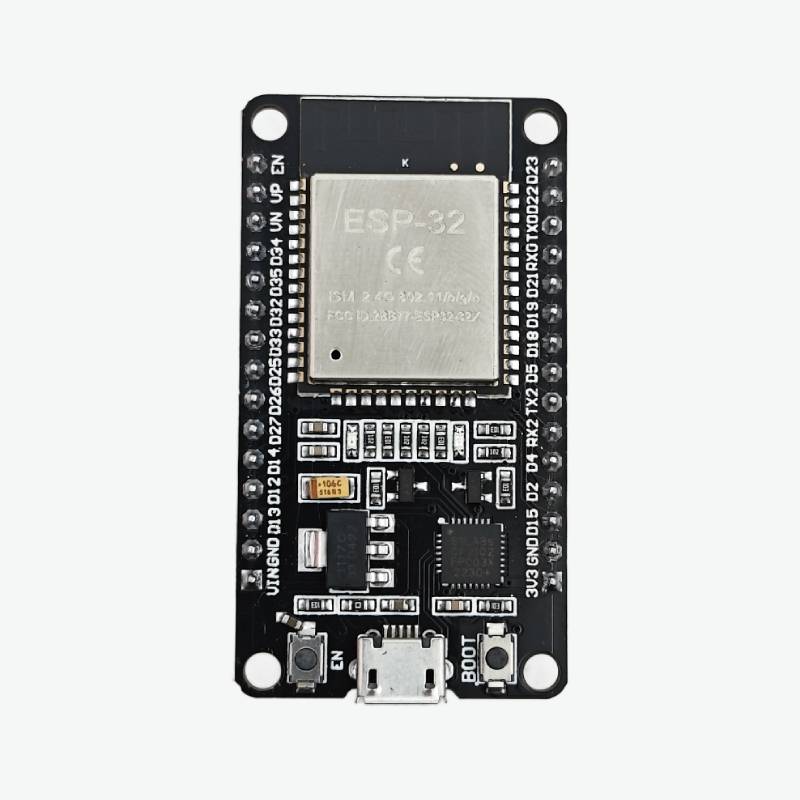

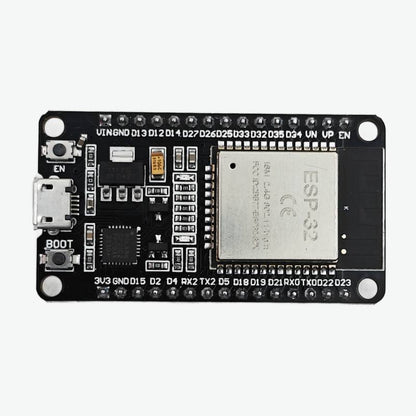

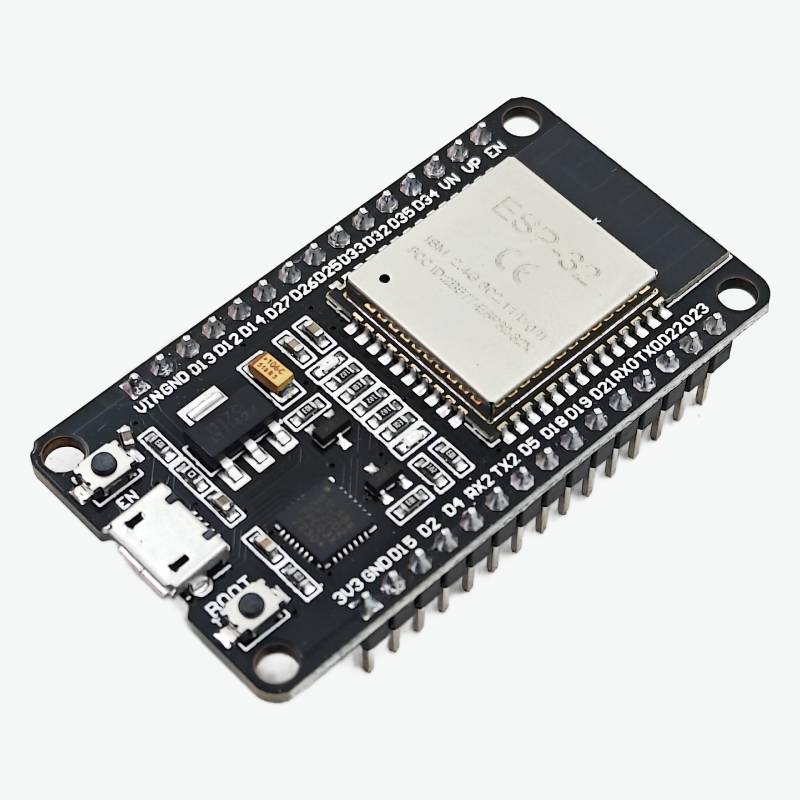

ESP32 30 Pin CP2102 Development Board with Wi-Fi and Bluetooth

The ESP32 Development Board is a powerful, feature-rich microcontroller module with integrated Wi-Fi and Bluetooth capabilities. Based on the ESP-WROOM-32 SoC, it supports dual-core processing, making it ideal for IoT, automation, and wireless sensor applications. With 30 pins, it provides ample GPIOs and interface support for a wide range of projects.

Features of ESP32 Development Board �30 Pin:

1. Dual-core 32-bit LX6 microprocessor
2. Integrated 2.4GHz Wi-Fi and Bluetooth (Classic + BLE)
3. 30-pin layout for compact form factor
4. 520KB SRAM + 4MB Flash memory
5. Multiple GPIOs with support for ADC, DAC, PWM, I2C, SPI, UART
6. PCB antenna for wireless communication
7. Built-in USB to Serial (CP2102/CH340) for easy programming
8. Low-power consumption with multiple sleep modes
9. Ideal for IoT, automation, robotics, and sensor networks

Specifications of ESP32 Development Board:

• Chipset: ESP-WROOM-32
• Microcontroller: Tensilica Xtensa Dual-Core 32-bit LX6
• Clock Speed: Up to 240MHz
• Flash Memory: 4MB
• SRAM: 520KB
• Wi-Fi: IEEE 802.11 b/g/n
• Bluetooth: v4.2 (Classic + BLE)
• GPIO Pins: 30
• USB Interface: Micro USB (via CP2102/CH340)
• Operating Voltage: 3.3V (logic), USB 5V input

• Mounting: Breadboard-compatible

Package Includes:

1 × ESP32 Development Board with Wi-Fi and Bluetooth â€?30 Pin â€?ESP-WROOM-32 Module
