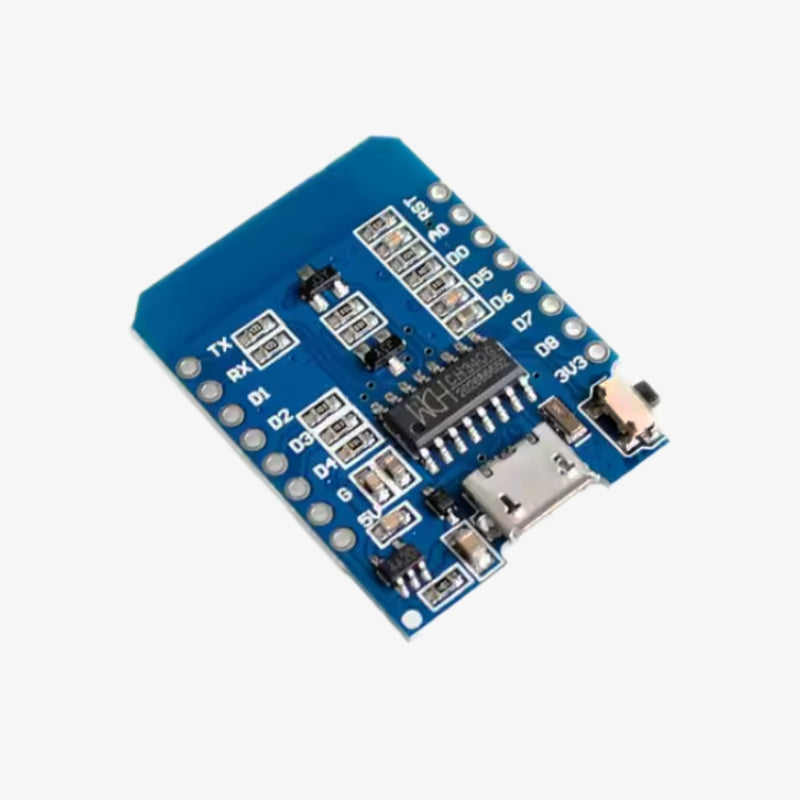

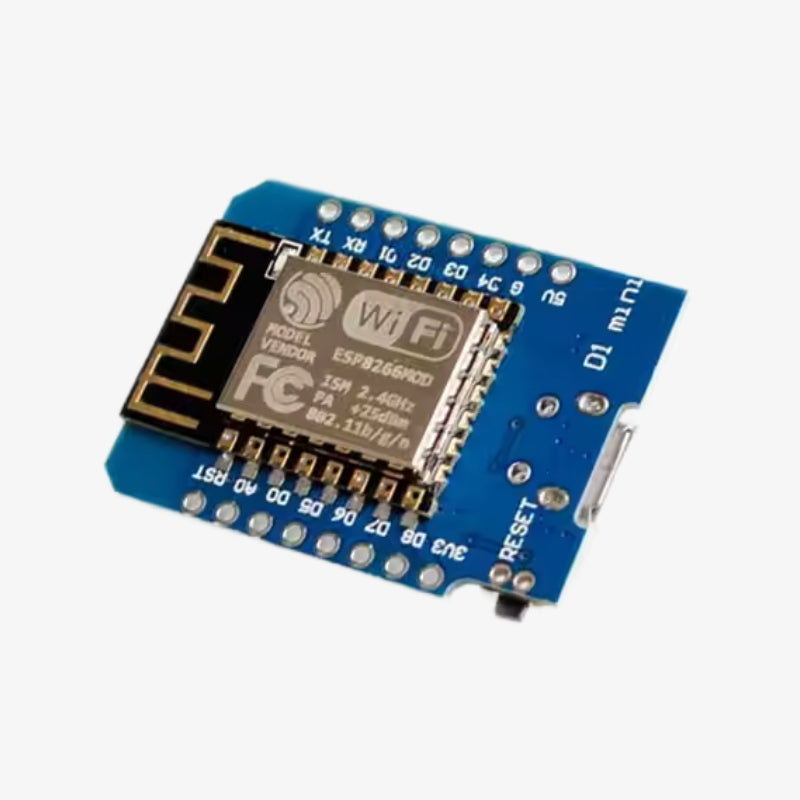

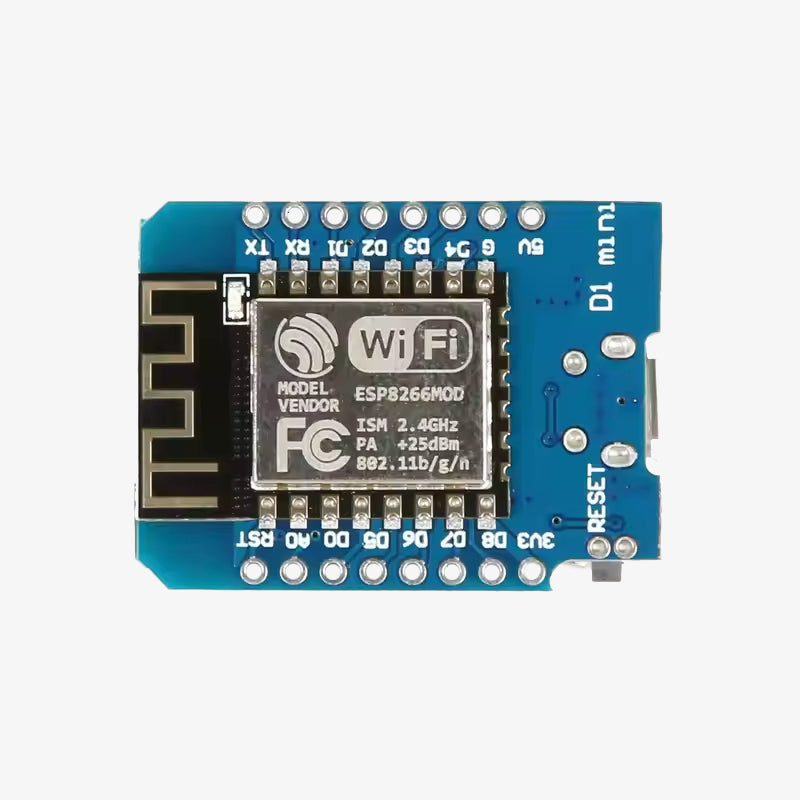

ESP8266 D1 Mini V2 NodeMCU Lua WiFi IoT Development Board

The ESP8266 D1 Mini V2 NodeMCU Lua IoT Dev Board is a compact and versatile development board designed for IoT applications. Featuring the powerful ESP8266 Wi-Fi module, it supports Lua scripting and Arduino IDE for easy programming. Its small form factor and extensive GPIO options make it perfect for smart devices, automation systems, and other Wi-Fi-enabled projects.

Features:

• Integrated ESP8266 Wi-Fi module for seamless connectivity.
• Compatible with Lua scripting and Arduino IDE.
• Compact design with 11 digital I/O pins and 1 analog pin.
• Supports SPI, I2C, UART, and PWM for versatile interfacing.
• Onboard micro USB for power and programming.
• Low power consumption, ideal for battery-operated devices.

Specifications:

• Microcontroller: ESP8266
• Operating Voltage: 3.3V
• Input Voltage: 5V (via micro USB)
• Wi-Fi Protocol: IEEE 802.11 b/g/n
• Dimensions: 34mm x 25mm
• Programming: Arduino IDE or Lua Script

Package Includes:

1 x ESP8266 D1 Mini V2 NodeMCU Lua IoT Dev Board
