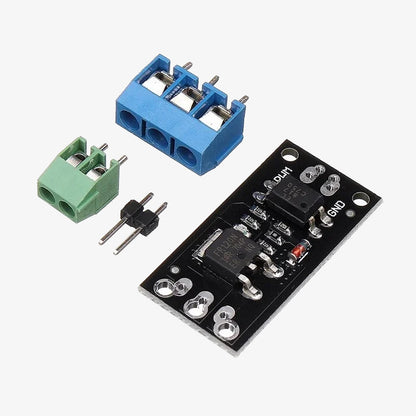

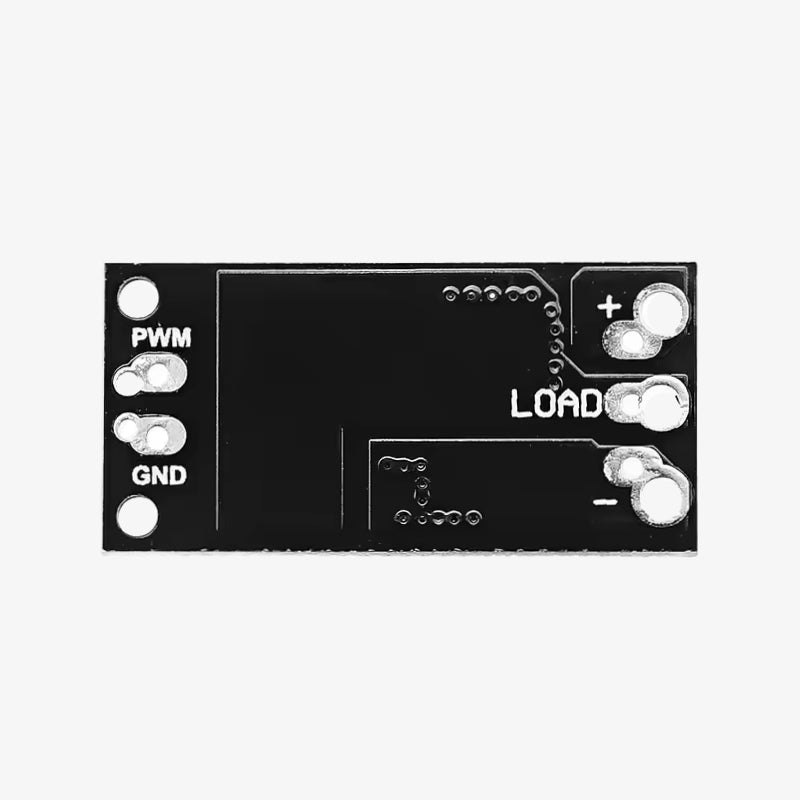

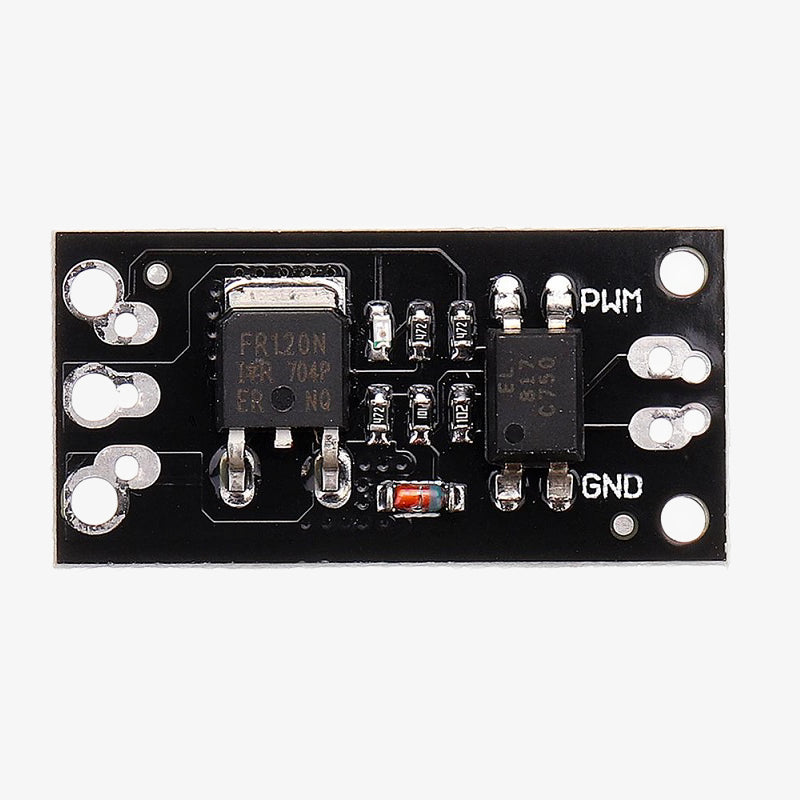

FR120N MOSFET Control Module for Relay Replacement

The FR120N MOSFET Control Module is a high-efficiency electronic switch designed to replace traditional mechanical relays. It provides fast switching speed, low power loss, and high reliability for DC load control applications. This module is ideal for use with Arduino, ESP32, Raspberry Pi, and other microcontroller-based projects requiring efficient MOSFET switching.

Features of FR120N MOSFET Control Module:

1. Replaces mechanical relays for longer lifespan and faster response.
2. Low on-resistance for minimal power dissipation.
3. Supports PWM signal control for motor speed and brightness adjustment.
4. Compatible with 3.3V and 5V logic levels.
5. Suitable for DC motor control, LED dimming, and power switching applications.

Specifications of FR120N MOSFET Control Module:

• MOSFET Model: FR120N
• Operating Voltage: DC 5V â€?36V
• Control Voltage: 3.3V / 5V
• Current Handling Capacity: Up to 9A
• Switching Mode: PWM or digital signal control

Package Includes:

1 × FR120N MOSFET Control Module
