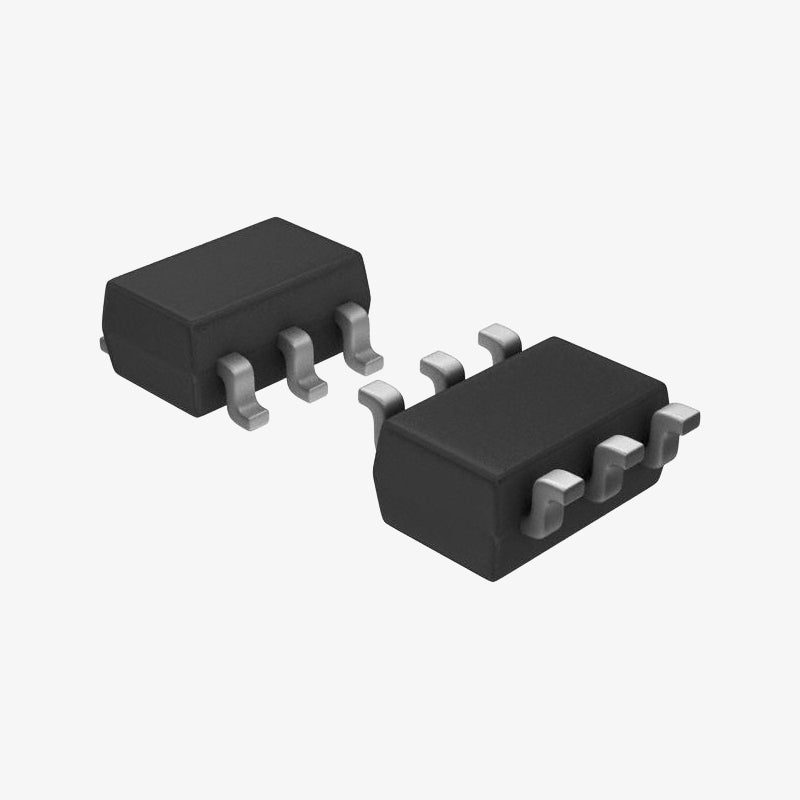

FS8205A Dual N Channel Power MOSFET - SOT-23-6 SMD Package

FS8205A Dual N Channel Power MOSFET - SOT-23-6 SMD Package

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

The FS8205A is a dual N-channel power MOSFET integrated in a single compact SOT-23-6 surface-mount package. It is designed for low-voltage, high-efficiency switching applications and is widely used in lithium battery protection circuits, load switching, and DC-DC converters. With low RDS(ON), fast switching, and high current capability, the FS8205A provides excellent performance in space-constrained electronic designs.

Features of FS8205A Dual N Channel Power MOSFET:

  1. Dual N-channel MOSFETs in a single SOT-23-6 package
  2. Low RDS(ON) for reduced conduction losses
  3. Fast switching speed for efficient power conversion
  4. Low gate threshold voltage for logic-level drive
  5. Ideal for battery protection, load switching, and portable devices
  6. Compact size suitable for high-density PCB designs

Specifications of FS8205A:

  • Model: FS8205A
  • Type: Dual N-Channel Power MOSFET
  • Drain-Source Voltage (V<sub>DS</sub>): 30V
  • Continuous Drain Current (I<sub>D</sub>): ±6A
  • Gate Threshold Voltage (V<sub>GS(th)</sub>): 1.0V to 2.5V
  • RDS(ON): 35mΩ max @ V<sub>GS</sub> = 4.5V
  • Package: SOT-23-6 â€?SMD
  • Operating Temperature Range: -55°C to +150°C

Package Includes:

1 × FS8205A Dual N Channel Power MOSFET â€?SOT-23-6 Package
