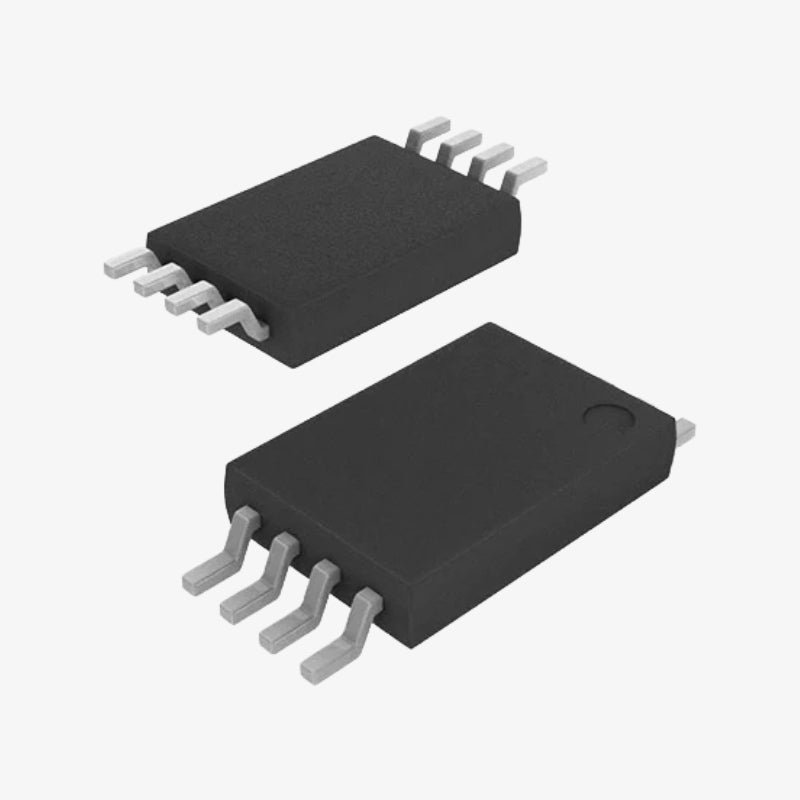

FS8205A Dual N-Channel Power MOSFET - TSSOP-8 SMD Package

The FS8205A is a dual N-channel enhancement mode Power MOSFET designed for high-efficiency power management in battery-operated devices. It integrates two identical MOSFETs in a single TSSOP-8 surface-mount package, making it ideal for applications requiring compact layout and low on-resistance. The device supports fast switching and high current handling, commonly used in battery protection circuits and load switches.

Features of FS8205A Dual N-Channel MOSFET:

1. Dual N-channel MOSFETs integrated in one package
2. Ultra-low RDS(on) for reduced conduction losses
3. Fast switching performance
4. Suitable for battery protection circuits and DC-DC converters
5. Compact TSSOP-8 package ideal for space-constrained applications

Specifications of FS8205A Dual N-Channel MOSFET:

• Model: FS8205A
• Type: Dual N-Channel Power MOSFET
• Drain-Source Voltage (VDS): 30V
• Continuous Drain Current (ID): 6A (per channel)
• Gate Threshold Voltage (VGS(th)): 1V to 2.5V
• RDS(on): 0.025Ω (typical) at VGS = 4.5V
• Package: TSSOP-8 â€?SMD
• Total Power Dissipation: 1.2W
• Operating Temperature Range: -55°C to +150°C

Package Includes:

1 × FS8205A Dual N-Channel Power MOSFET â€?TSSOP-8 Package
