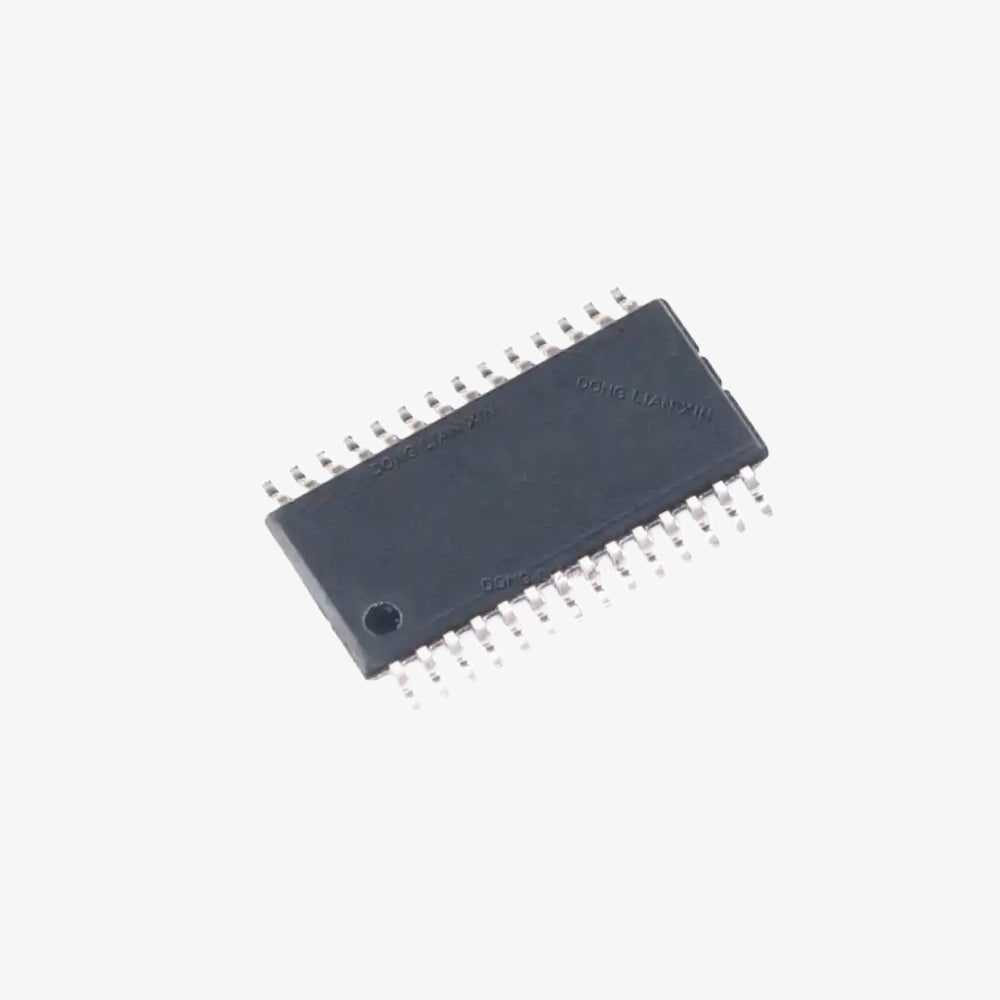

FT232RL USB to Serial UART Interface IC - SSOP-28 SMD Package

FT232RL USB to Serial UART Interface IC - SSOP-28 SMD Package

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

The FT232RL is a USB to Serial UART interface IC designed to provide a simple solution for interfacing microcontrollers with USB. It supports both asynchronous and synchronous serial communication and features a compact SSOP-28 surface-mount package, making it suitable for space-constrained applications. The FT232RL offers an integrated USB protocol engine, reducing the need for external components and simplifying the design process.

Specifications:

  • Interface Type: USB to Serial UART
  • Package Type: SSOP-28
  • USB Protocol: USB 2.0 Full Speed
  • Data Rate: Up to 3 Mbps (RS232) and 12 Mbps (RS422/RS485)
  • Supply Voltage: 3.3 V to 5.25 V
  • Operating Temperature Range: -40°C to +85°C
  • Integrated EEPROM: For device configuration and personalization
  • On-chip oscillator: Requires no external crystal
  • Baud Rate: Programmable from 300 bps to 3 Mbps

Pin Configuration:

  1. GND: Ground
  2. 3V3OUT: 3.3V output for external components
  3. VCC: Supply voltage input
  4. USBDP: USB D+ line
  5. USBDM: USB D- line
  6. SLEEP: Sleep indicator output
  7. RXD: UART receive data input
  8. TXD: UART transmit data output
  9. RTS: Request to send control output
  10. CTS: Clear to send control input
  11. DTR: Data terminal ready control output
  12. DSR: Data set ready control input
  13. DCD: Data carrier detect control input
  14. RI: Ring indicator control input

Features:

  • USB to UART interface: Seamlessly connects microcontrollers to USB ports
  • Integrated USB protocol engine: Simplifies USB communication
  • Low power consumption: Ideal for battery-powered applications
  • Support for various communication modes: Asynchronous, synchronous bit-bang
  • Integrated EEPROM: Stores device configurations
  • Compact design: SSOP-28 package for easy integration into small designs

Applications:

  • USB to serial adapters
  • Microcontroller communication interfaces
  • Industrial control systems
  • Consumer electronics
  • Data loggers and instrumentation

Package Includes:

  • 1 x FT232RL USB to Serial UART Interface IC (SMD SSOP-28 Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
