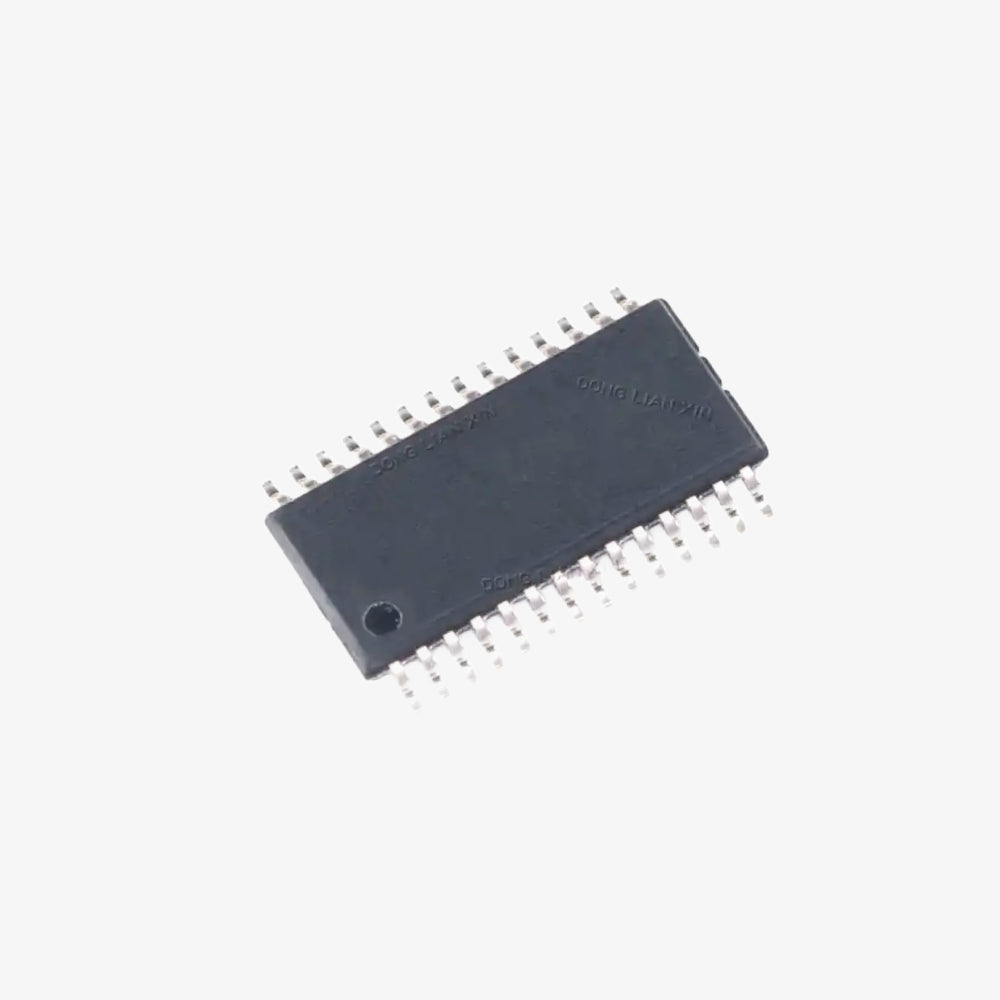

FT245RL USB To Parallel FIFO Interface IC (FTDI) - SSOP-28 SMD Package

The FT245RL is a USB to parallel FIFO interface IC from FTDI (Future Technology Devices International) designed to simplify the process of interfacing USB with parallel data buses. This IC converts USB signals directly into parallel FIFO signals, enabling fast data transfer between a USB port and a microcontroller or other parallel interfaces. The IC is available in a SSOP-28 SMD package, making it suitable for compact and space-constrained designs.

Features

• USB 2.0 Full-Speed Compatible: Provides USB 2.0 full-speed (12 Mbps) connectivity with built-in clock generation and data handling.
• Simple FIFO Interface: 8-bit parallel FIFO interface with easy-to-use control signals for seamless data transfer between USB and parallel devices.
• Integrated USB Protocol Engine: Manages the entire USB protocol, reducing the need for external components and simplifying design.
• Configurable FIFO Mode: Supports both asynchronous and synchronous FIFO modes, providing flexibility in various applications.
• Low Power Consumption: Operates with minimal power, making it ideal for portable and battery-powered devices.
• SSOP-28 SMD Package: Compact surface-mount package for easy integration into high-density PCB layouts.

Specifications

• USB Compatibility: USB 2.0 full-speed (12 Mbps)
• FIFO Data Bus Width: 8 bits
• FIFO Clock Speed: Up to 1 MHz (synchronous mode)
• Supply Voltage: 3.3V (core) with 5V tolerant I/O
• Operating Temperature: -40°C to +85°C
• Package Type: SSOP-28 (Shrink Small Outline Package)
• Pin Count: 28

Note: Product images are for illustrative purposes only and may differ from the actual product.
