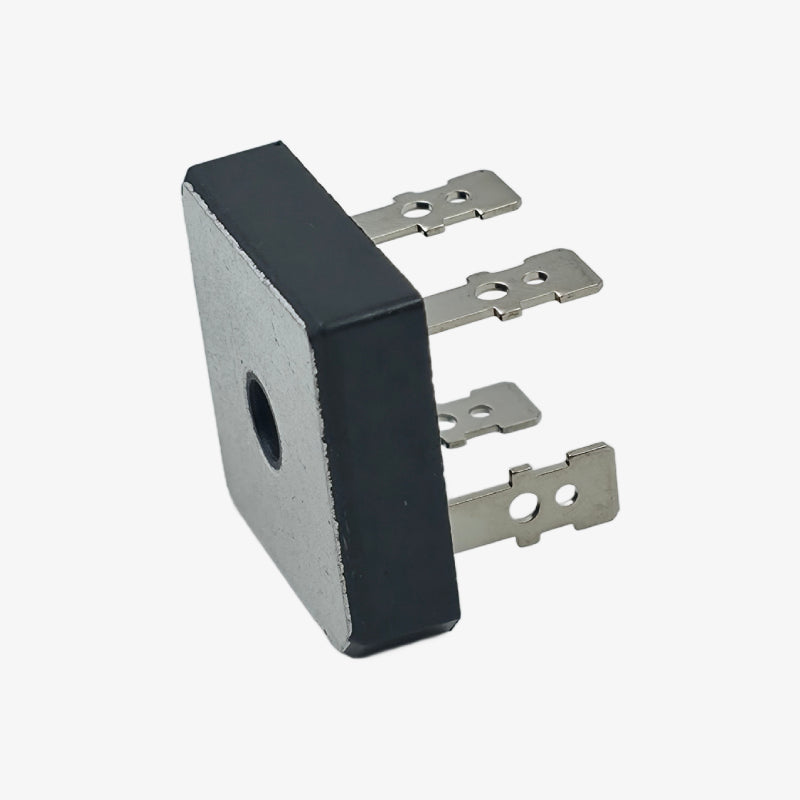

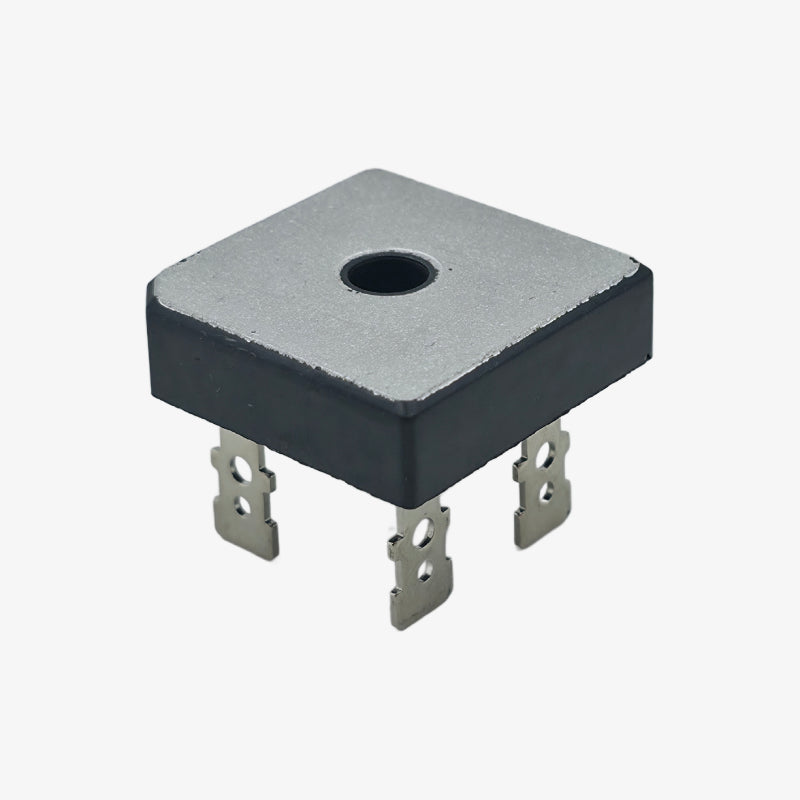

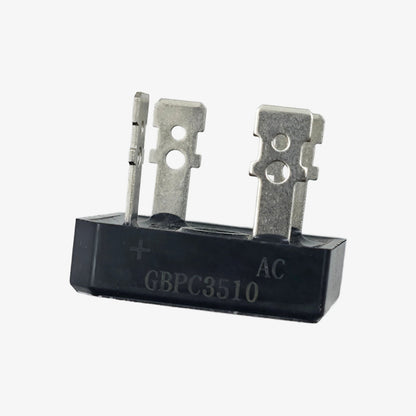

The GBPC3510 Bridge Rectifier 35A is a robust through-hole rectifier designed for high-current AC to DC conversion in industrial and power electronics. Constructed with a glass-passivated die and molded plastic body, it ensures excellent thermal stability and surge endurance. Ideal for power supplies, inverters, UPS systems, and motor control circuits.
Features:
- High current handling capability up to 35A
- Excellent surge tolerance of 400A
- Low forward voltage drop for efficient power conversion
- Glass-passivated junction with isolated epoxy case for heat dissipation
- Suitable for screw mounting and high-power PCB applications
Specifications:
- Average Forward Rectified Current (IF(AV)): 35A (TC = 50°C)
- Peak Repetitive Reverse Voltage (VRRM): 1000V
- Working Peak Reverse Voltage (VRWM): 1000V
- DC Blocking Voltage (VDC): 1000V
- RMS Reverse Voltage (VR(RMS)): 700V
- Peak Forward Surge Current (IFSM): 400A (8.3ms half-sine wave)
- Forward Voltage (VF): 1.1V at IF = 17.5A
- Reverse Current (IR) at 25°C: 5µA
- Reverse Current (IR) at 125°C: 500µA
- Typical Junction Capacitance (Cj): 300pF
- Thermal Resistance Junction-to-Case (RθJC): 1.4°C/W
- Operating Junction Temperature (TJ): -65°C to +150°C
- Storage Temperature (TSTG): -65°C to +150°C
Package Includes:
1 × GBPC3510 Bridge Rectifier 35A
