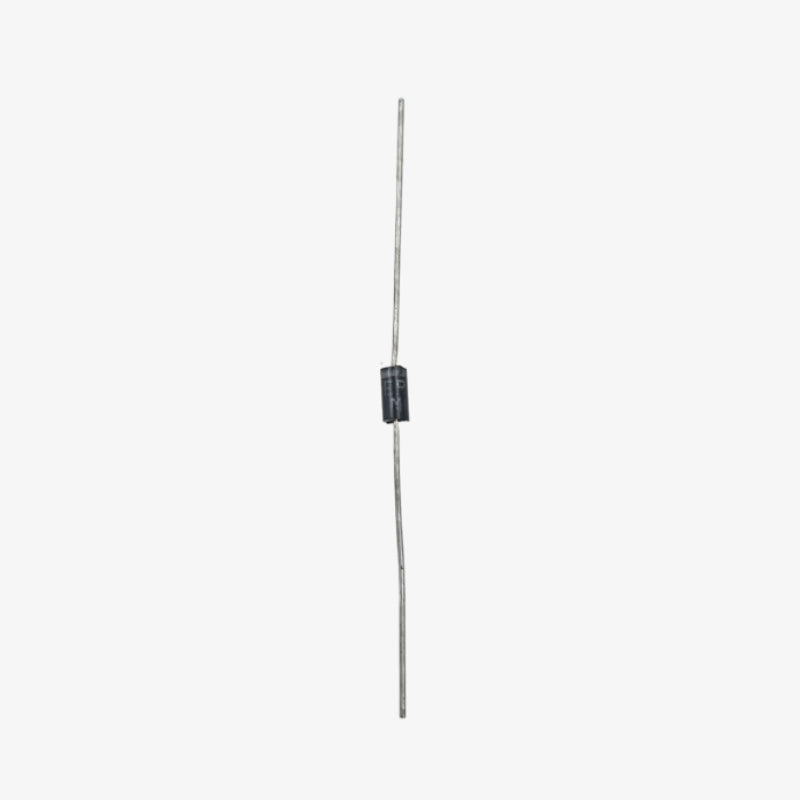

HER108 Ultra Fast Rectifier Diode 1A

The HER108 Ultra Fast Rectifier Diode 1A is designed for efficient AC to DC rectification in fast-switching applications. Its molded DO-41 body ensures reliable operation under high-speed load conditions. Ideal for power supplies, inverters, converters, and freewheeling circuits.

Features:

1. Low forward voltage drop for efficient operation

2. High current capability for demanding loads

3. High surge current tolerance with reliable construction

4. Fast switching for high-efficiency rectification

Specifications:

• Maximum Repetitive Peak Reverse Voltage (VRRM): 1000 V

• Maximum RMS Voltage (VRMS): 700 V

• Maximum DC Blocking Voltage (VDC): 1000 V

• Maximum Average Forward Rectified Current (IF(AV)): 1.0 A

• Peak Forward Surge Current (IFSM): 30 A

• Forward Voltage (VF) at 1 A: 1.85 V

• Peak Reverse Current (IR) at 25°C: 5 µA
• Peak Reverse Current (IR) at 100°C: 150 µA

• Reverse Recovery Time (trr): 70 ns

• Typical Junction Capacitance (CJ): 20 pF

• Operating Temperature Range (TJ): -65°C to +125°C

• Storage Temperature Range (TSTG): -65°C to +125°C

Package Includes:

1 × HER108 Ultra Fast Rectifier Diode 1A
