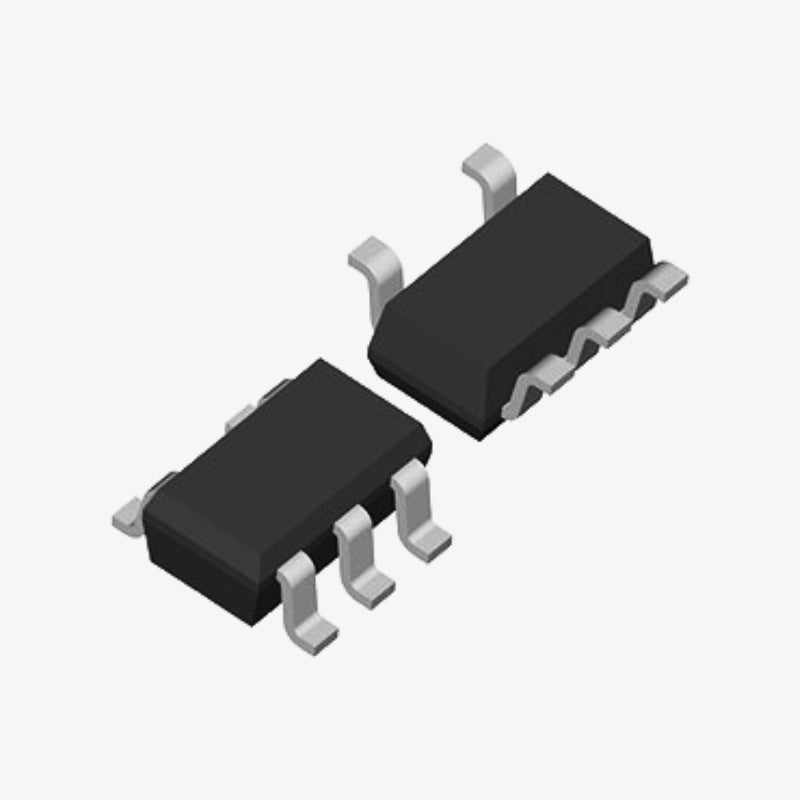

HT7833 500mA Low Dropout Linear Voltage Regulator IC - SOT-23-5 SMD Package

The HT7833 is a high-performance low dropout (LDO) linear voltage regulator IC designed to provide a stable 3.3V output from input voltages up to 6V. With a maximum output current of 500mA, this regulator offers low quiescent current and excellent line and load regulation. The HT7833 is widely used in battery-powered devices, microcontroller circuits, portable electronics, and IoT applications where compact size and high efficiency are essential.

1. Fixed output voltage of 3.3V
2. Supports output current up to 500mA
3. Low dropout voltage: 250mV @ 500mA
4. Low quiescent current for energy-efficient operation
5. Built-in current limit and thermal protection
6. Compact SOT-23-5 SMD package
7. Ideal for portable devices, IoT, and microcontroller-based circuits

• Model: HT7833
• Input Voltage Range: 2.5V to 6V
• Output Voltage: 3.3V fixed
• Output Current: Up to 500mA
• Dropout Voltage: ~250mV @ 500mA load
• Quiescent Current: <2µA (typical)
• Protections: Overcurrent and thermal shutdown
• Package: SOT-23-5 â€?SMD
• Operating Temperature: -40°C to +85°C
