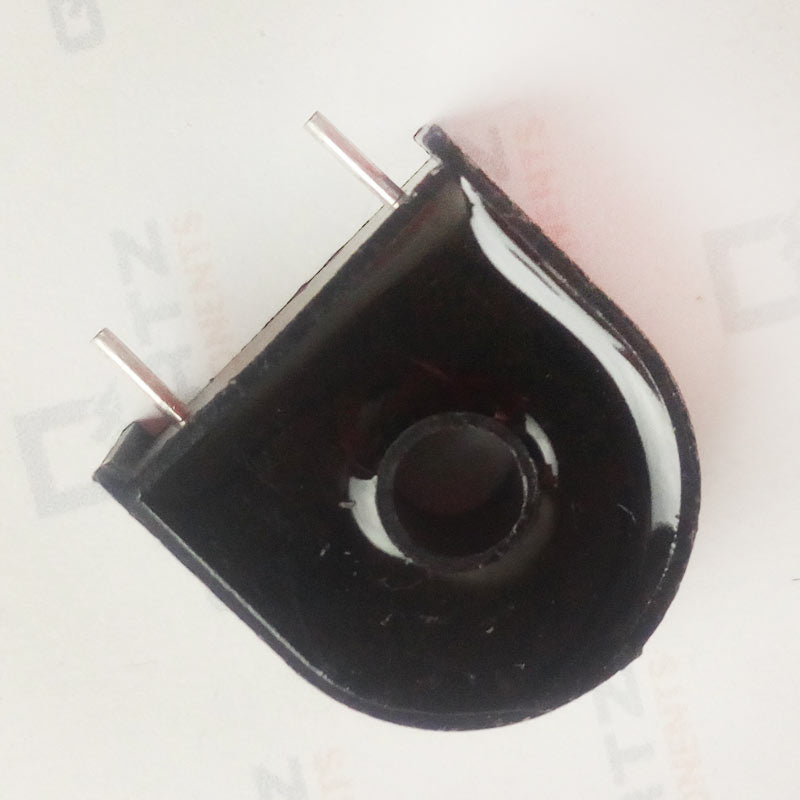

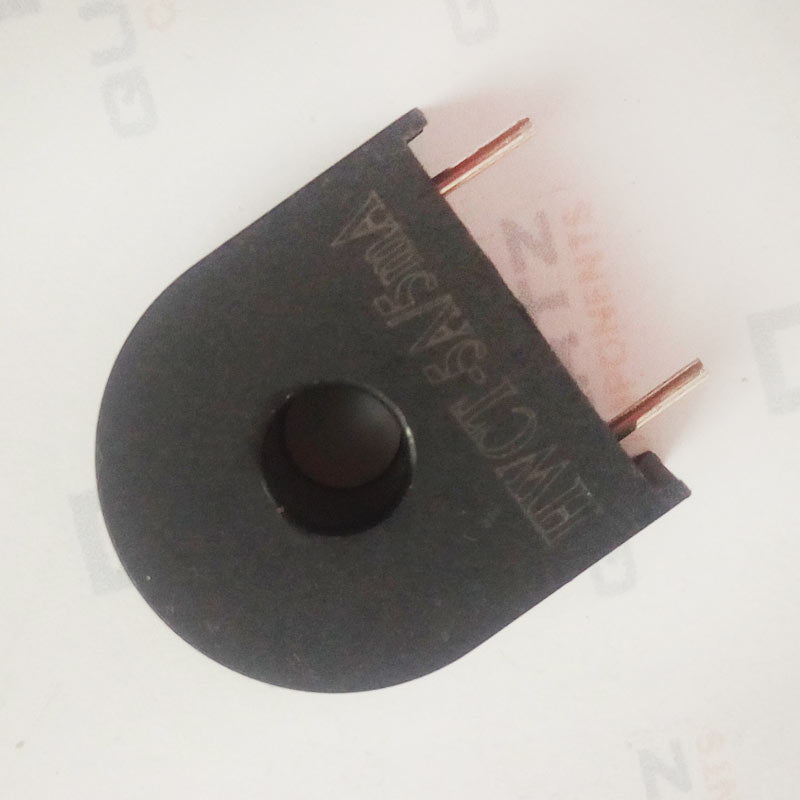

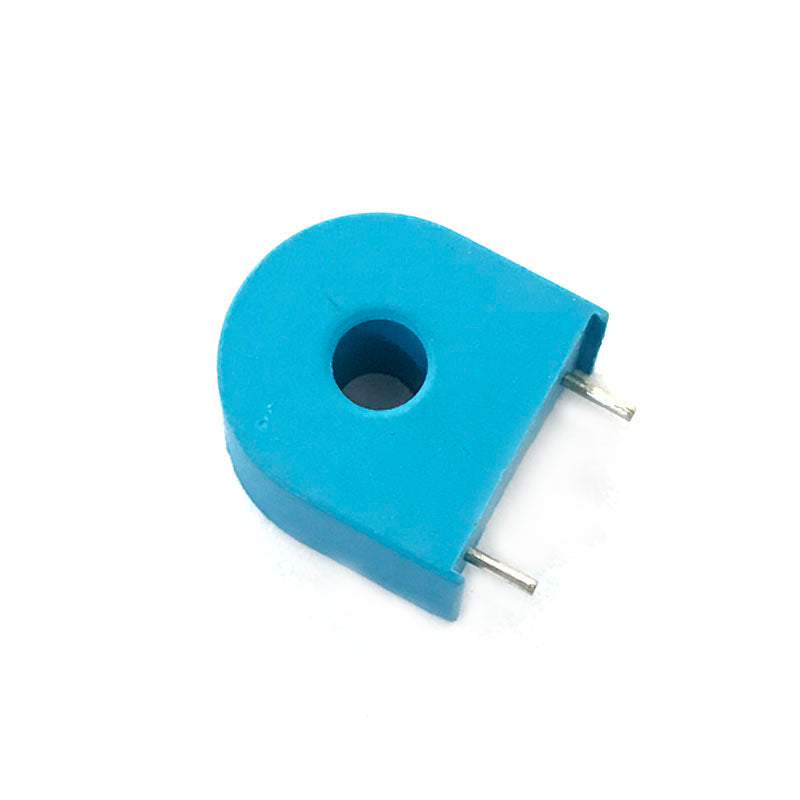

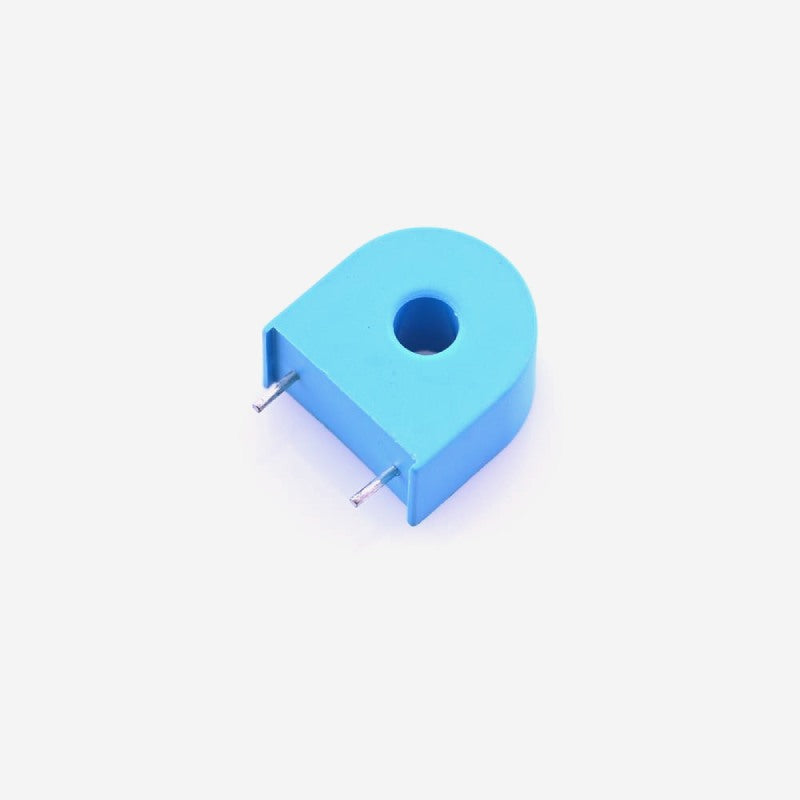

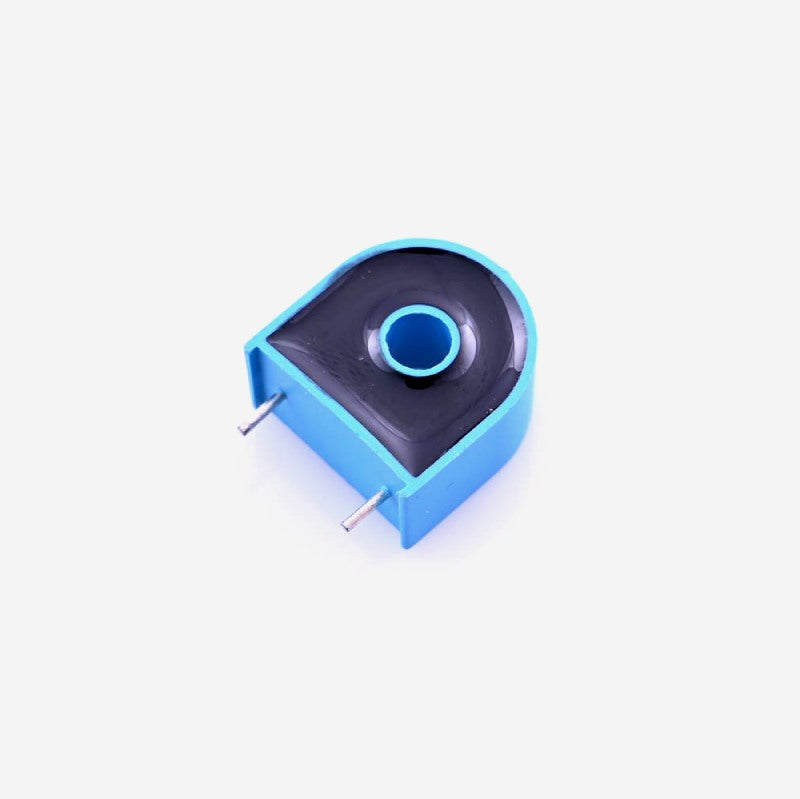

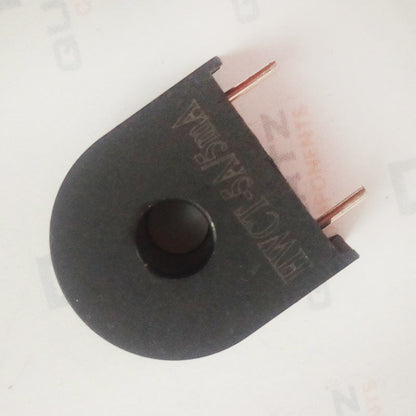

HWCT-5A-5mA Precision Current Transformer

In data acquisition systems and in SCADA-related applications, the current measurement is a very important part of the whole system. It is important because the current flowing in the system determines the state and safety of the system if the current becomes too high in case of a short circuit or any fault protective actions must be taken. This Current Transformer can measure up to 20A current and the output current is proportional to the current measured by it and the maximum output signal current is 5mA. It is a high-accuracy sensor with an accuracy class of 0.2. You can use it for AC current measurement in home lines, in small AC systems, etc.

Specifications

• The module can be measured within 5 alternating current
• Maximum Primary Current at 50/60 Hz: 20 A
• Current Ratio: 5A:5mA
• Winding D.C. Resistance at 20 °C: 155 Ω
• Accuracy @RL â‰?0 Ω: 2%

Package Contents

1× HWCT-5A5mA Current Transformer
