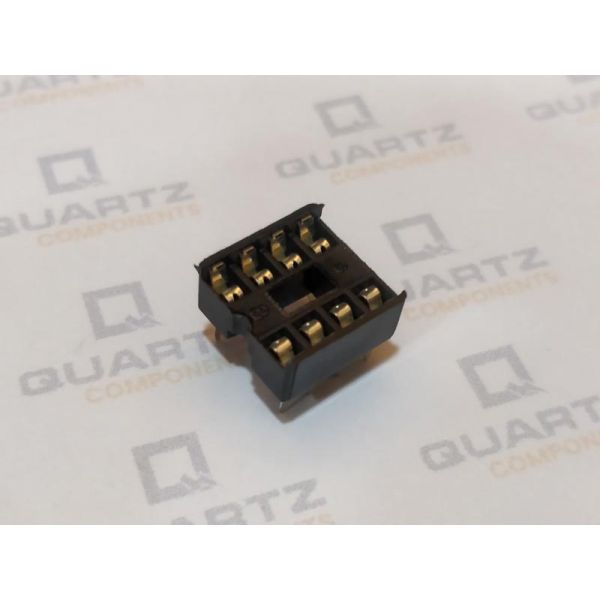

8 Pin DIP IC Base/Socket
8 Pin DIP IC Base/Socket
Couldn't load pickup availability
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

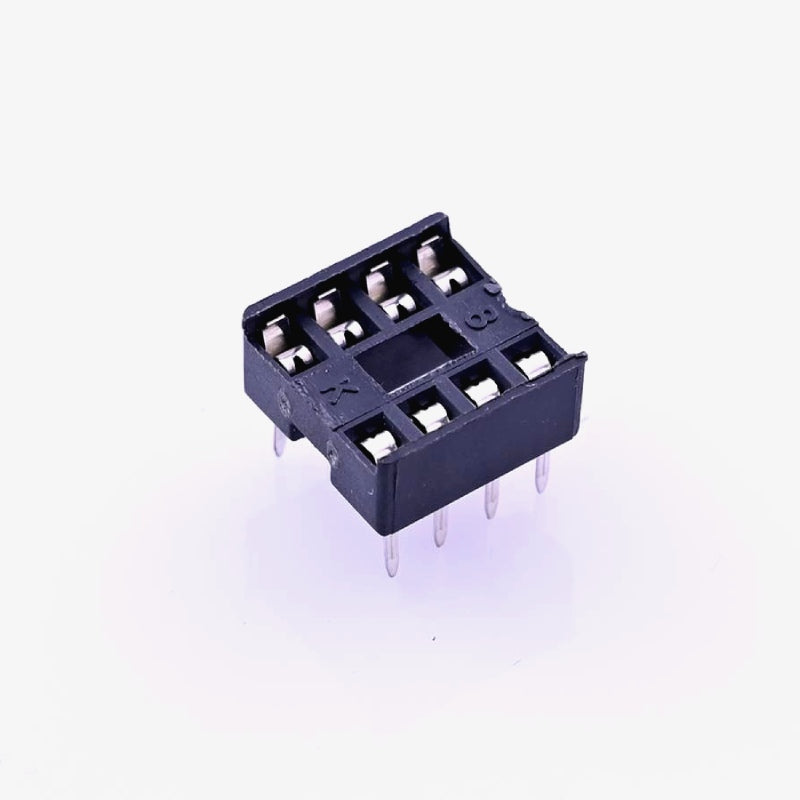

This is an 8 pin IC socket that is used as a base for 8 pin ICs with DIP package. It has wide enough holes to allow easy insertion of ICs. With this component, designers can mount the IC directly to the PCB or without having to solder the IC directly to the PCB. Because the IC is not soldered directly to the PCB, it can be easily replaced or reused in other circuits as per requirement. Commonly, the 8 pin IC base is used in prototypes / PCB circuit design testing. They can be joined end to end when working with ICs with more than 8 pins. The contacts of the IC base are tin-plated to reduce oxidation.
Â
Specifications of the 8 pin IC Base
- Protected open entry for easy insertion of IC
- Contacts: Brass contacts with tin-surface plating
- Contacts resistance : 10 mW
- Current rating :1 A
- Insulator : Thermoplastic Polyester
- Colour: Black
Additional Material
Package Includes
1 x 8 Pin DIP IC Base/Socket
