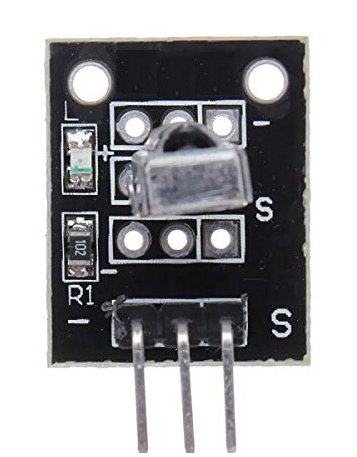

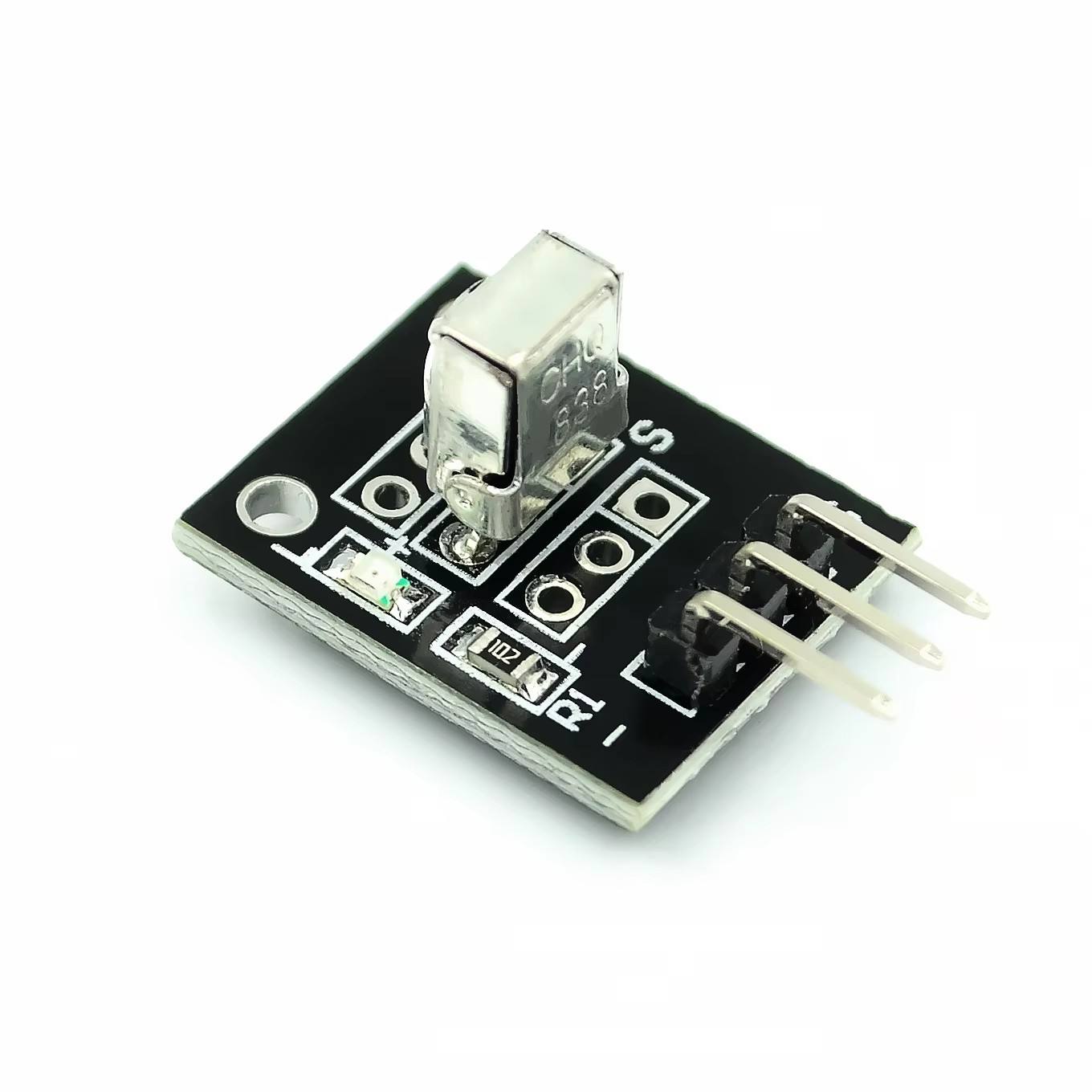

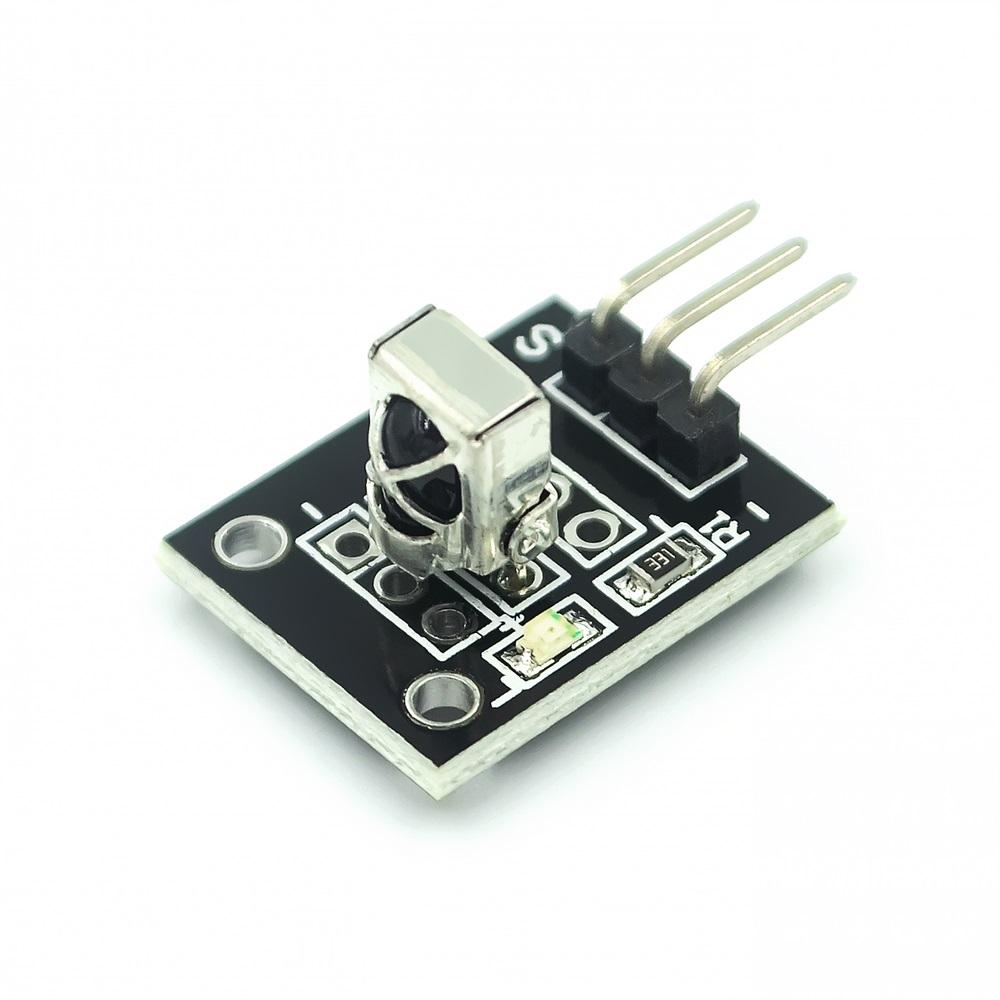

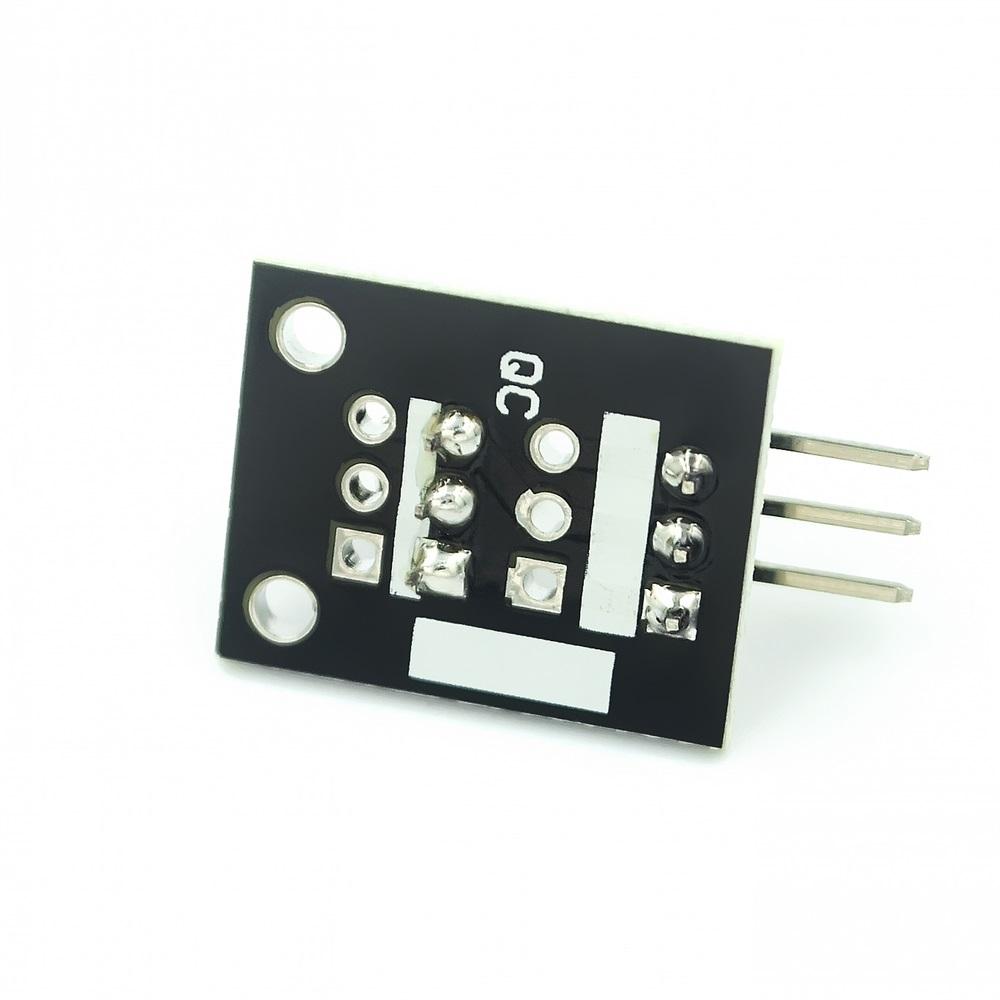

Infrared IR Sensor Receiver Module

The Infrared IR Sensor Receiver Module is a compact and reliable component designed for receiving IR signals from remote controls or other IR transmitters. It is widely used in Arduino and other microcontroller-based projects for implementing wireless communication or remote control functionality.

This module is equipped with a high-sensitivity IR receiver that can detect modulated IR signals (typically at 38kHz), making it suitable for decoding signals from standard TV/DVD remote controls. Its onboard filtering and amplification circuitry ensures stable and noise-resistant operation.

Features of IR Sensor Receiver Module:

1. Compact design, ideal for embedded Sprojects
2. Compatible with most standard IR remotes (38kHz frequency)
3. High sensitivity with long receiving range
4. Built-in demodulation and amplification circuit
5. Simple 3-pin interface: VCC, GND, and OUT
6. Ready-to-use with Arduino, Raspberry Pi, and other development boards

Specifications of IR Sensor Receiver Module:

• Operating Voltage: 3.3V to 5V DC
• Output: Digital signal (LOW when IR is received)
• Carrier Frequency: 38kHz
• Detection Range: Up to 8 meters (depends on environment and remote)
• Viewing Angle: ±45°
• Interface: 3-pin (VCC, GND, OUT)


Package Includes:

1 × Infrared IR Sensor Receiver Module for Arduino
