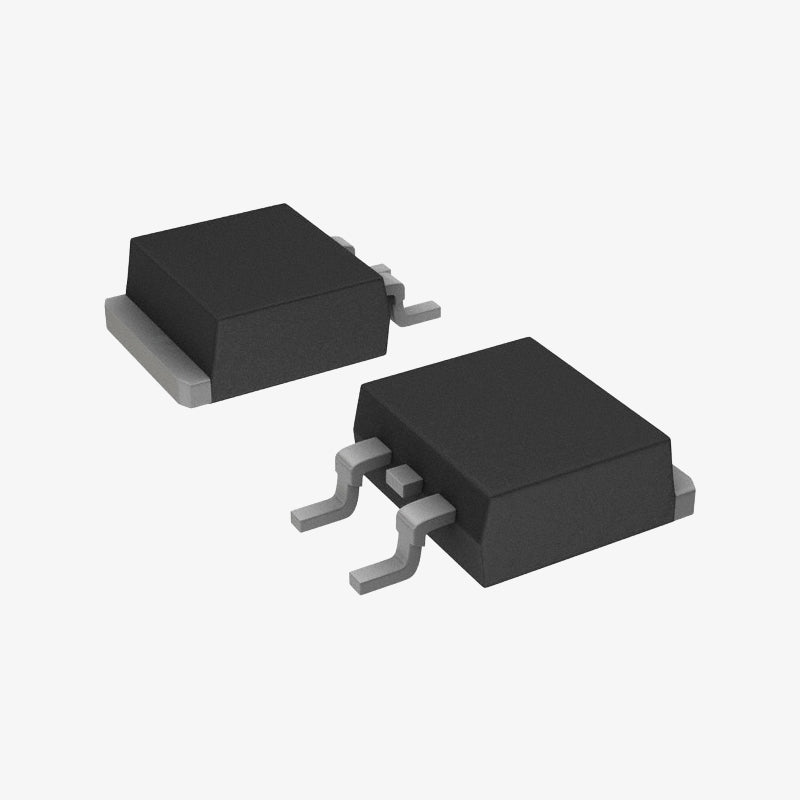

IRF540 N-Channel Power MOSFET (Generic) - D2PAK - TO-263 Package

The IRF540 is an N-channel power MOSFET designed for high-speed switching and efficient power control in a wide range of applications including motor drivers, power supplies, and DC-DC converters. With a drain-source voltage of up to 100V and continuous current handling of 33A, this MOSFET offers low RDS(on) for minimal conduction losses and excellent thermal performance. Packaged in a surface-mount D2PAK (TO-263), it is ideal for compact and thermally demanding designs.

Features of IRF540 N-Channel Power MOSFET:

1. N-channel enhancement-type MOSFET for switching and power control
2. Low RDS(on) enables high efficiency and low heat generation
3. High-speed switching capability
4. TTL and CMOS logic-level compatible gate drive
5. Rugged and reliable for industrial and consumer electronics
6. D2PAK �TO-263 surface-mount package for easy integration
7. RoHS compliant

Specifications of IRF540 N-Channel Power MOSFET:

• Model: IRF540
• Type: N-Channel Power MOSFET
• Drain-Source Voltage (VDS): 100V
• Continuous Drain Current (ID): 33A
• Gate Threshold Voltage (VGS(th)): 2.0V â€?4.0V
• RDS(on): 0.077Ω (max)Gate Charge (Qg): 67nC (typical)
• Power Dissipation: 130W
• Package: D2PAK â€?TO-263 â€?SMD
• Operating Temperature: -55°C to +175°C
• Manufacturer: Generic

Package Includes:

1 × IRF540 N-Channel Power MOSFET â€?Generic â€?D2PAK â€?TO-263 Package
