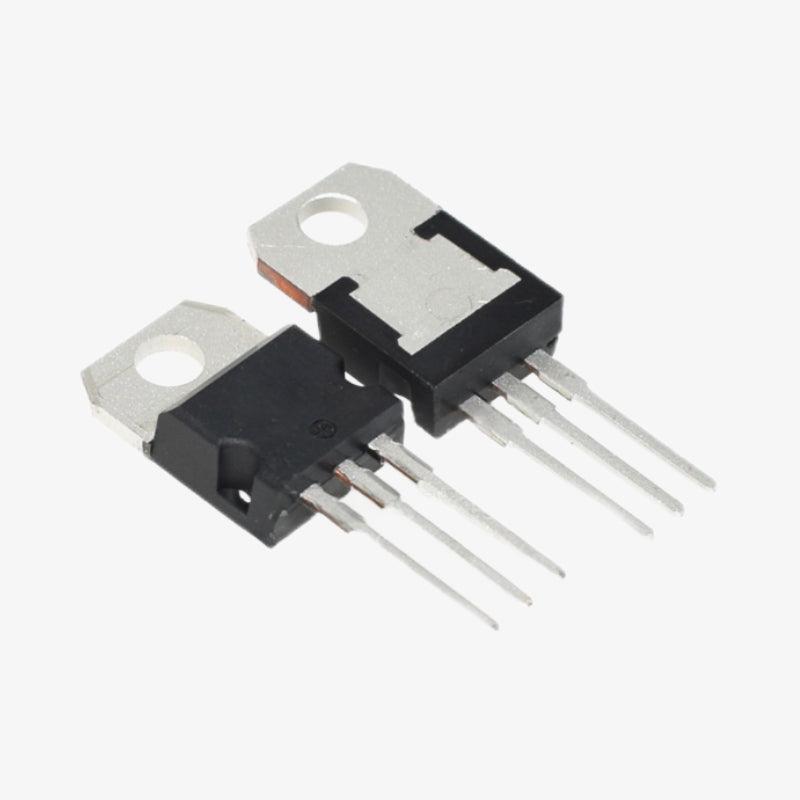

IRF840 Power MOSFET - 8A - TO-220 Package

The IRF840 is an N-channel power MOSFET designed for high-voltage switching applications. With a drain-source voltage rating of 500V and a continuous drain current of up to 8A, it is commonly used in power supplies, inverters, motor drivers, and general-purpose switching circuits. The TO-220 package offers excellent thermal performance, allowing for efficient heat dissipation in demanding environments.

Features of IRF840 Power MOSFET:

1. N-channel power MOSFET with high-voltage capability
2. 500V drain-source voltage suitable for high-power applications
3. Continuous drain current up to 8A
4. Low gate charge and fast switching speed
5. Rugged TO-220 package for effective heat management
6. Ideal for SMPS, inverter circuits, and motor control

Specifications of IRF840 Power MOSFET:

• Model: IRF840
• Type: N-Channel Power MOSFET
• Drain-Source Voltage: 500V
• Continuous Drain Current: 8A
• Gate Threshold Voltage: 2.0V to 4.0V
• RDS(ON): 0.85Ω max @ VGS=10V
• Total Gate Charge: 71nC (typical)
• Package: TO-220 â€?Through Hole
• Operating Temperature Range: -55°C to +150°C

Package Includes:

1 × IRF840 Power MOSFET â€?8A â€?TO-220 Package
