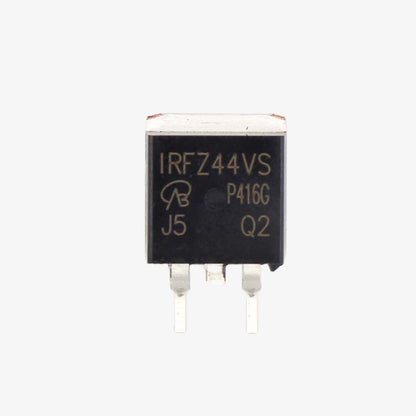

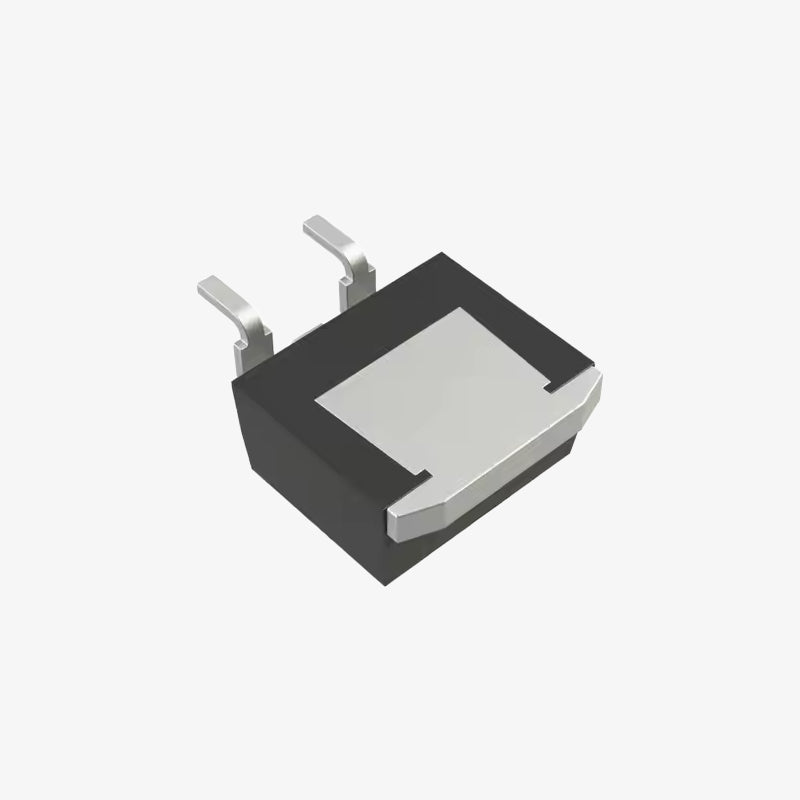

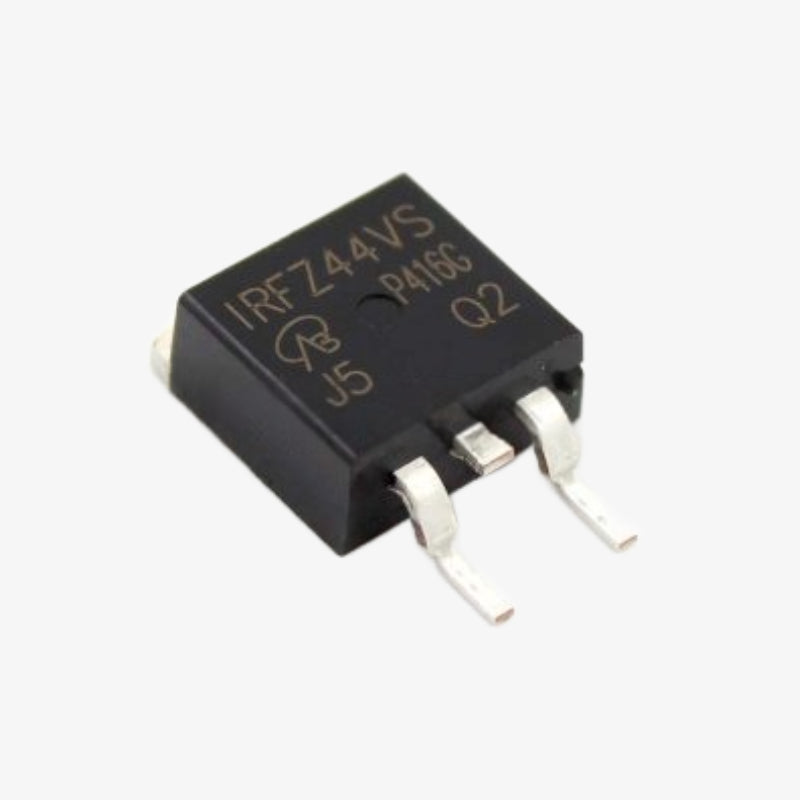

IRFZ44VS-VB N-Channel MOSFET (VBSemi) - TO-263 SMD Package

The IRFZ44VS-VB is an N-Channel power MOSFET designed by VBSemi, offering excellent switching performance with low on-resistance and high current handling capabilities. Packaged in a TO-263 surface-mount package, this MOSFET is ideal for DC-DC converters, motor drivers, battery protection, and general power switching applications.

Features of IRFZ44VS-VB MOSFET:

1. N-Channel enhancement mode MOSFET
2. Low on-resistance (RDS(on)) for efficient power delivery
3. High-speed switching capability
4. Suitable for low-voltage, high-current applications
5. TO-263 SMD package for compact PCB layouts
6. Rugged and reliable with high power handling

Specifications of IRFZ44VS-VB MOSFET:

• Type: N-Channel
• Drain-Source Voltage (Vds): 55V
• Continuous Drain Current (Id): 49A
• Gate Threshold Voltage (Vgs(th)): 2.0V to 4.0V
• On-Resistance (RDS(on)): 0.022Ω max at Vgs = 10V
• Total Gate Charge (Qg): ~67nC (typical)
• Package Type: TO-263 (D²PAK) â€?Surface Mount
• Manufacturer: VBSemi

Package Includes:

1 × IRFZ44VS-VB N-Channel MOSFET(VBSemi) - TO-263 SMD Package
