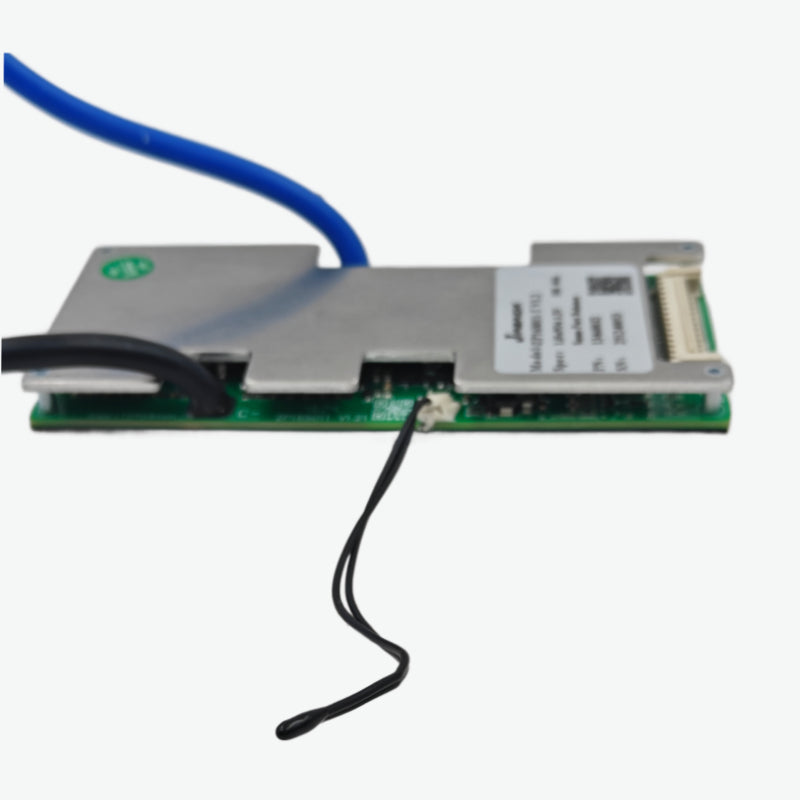

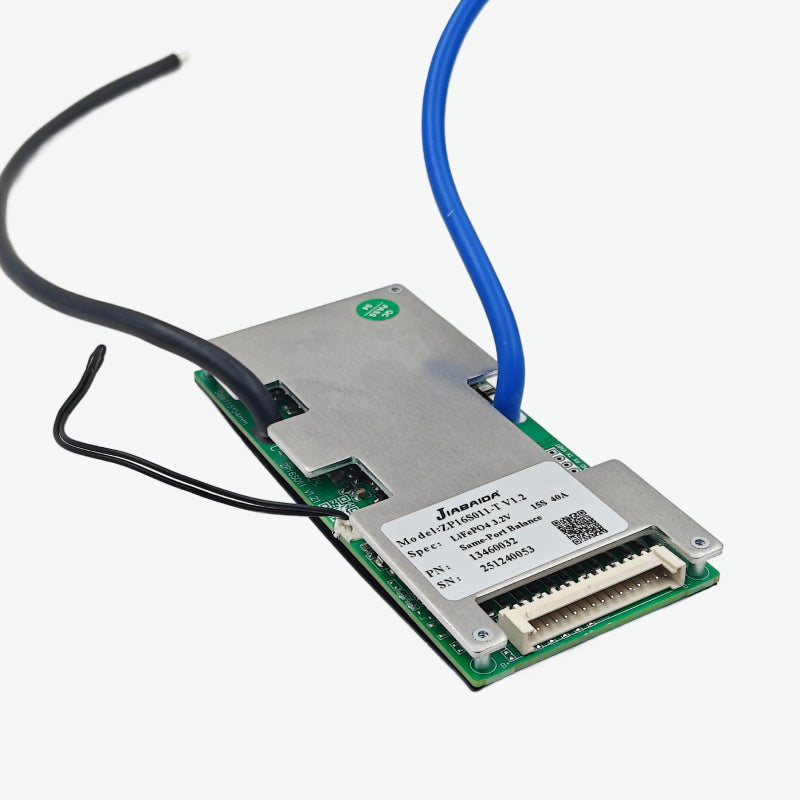

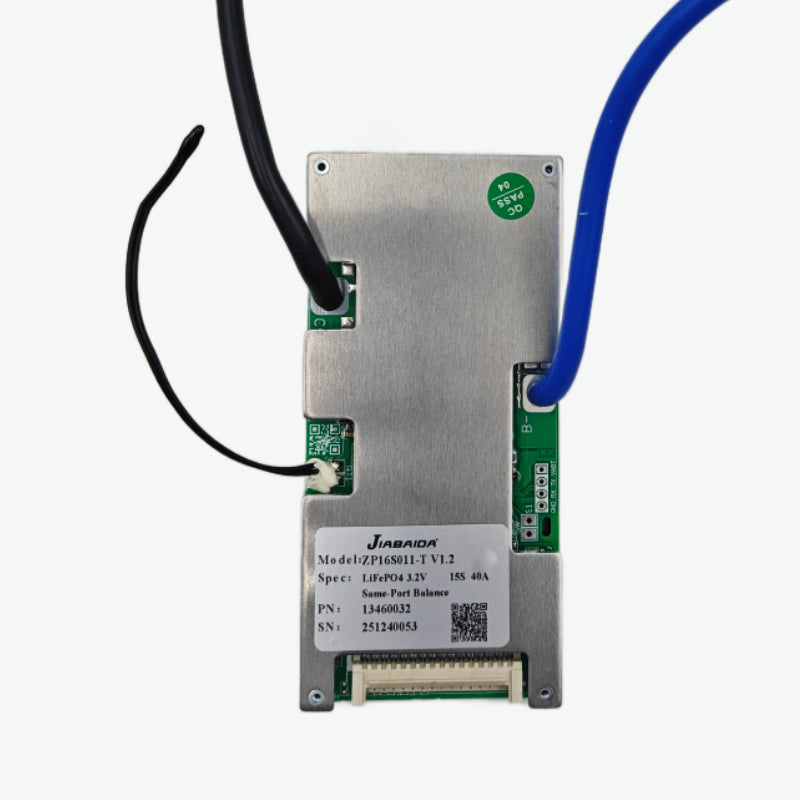

Jiabaida (JBD) LiFePo4 15S 48V 40A Battery Management System - BMS Protection Board

Jiabaida (JBD) LiFePo4 15S 48V 40A Battery Management System - BMS Protection Board

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

Jiabaida (JBD) LiFePo4 15S 48V 40A BMS is a smart Battery Management System  built on the ZP16S011 hardware, engineered for 15-cell LiFePo4 battery packs. It offers reliable protection against overcharge, over-discharge, overcurrent, and short circuits while providing passive balancing for maintaining cell voltage uniformity. With a continuous discharge current of 40A, it is suitable for applications such as electric bikes, energy storage systems, and portable power solutions.

Jiabaida (JBD) LiFePo4 15S 48V 40A BMS Features:

  • 40A continuous discharge capability for moderate-load applications
  • Passive balancing to improve battery pack performance and lifespan
  • Comprehensive protection circuitry for voltage and current control
  • Built on ZP16S011 hardware for stable operation
  • Ideal for medium-power LiFePo4 battery systems

Jiabaida (JBD) LiFePo4 15S 48V 40A BMS Specification:

Specification Value
Model ZP16S011
Supported Cells 15S (LiFePo4)
Nominal Voltage (V) 48V
Charge Voltage (V) 54.75V
Charge Current (A) 20A
Continuous Discharge Current (A) 40A
Balance Current (mA) 30 ±5
Overcharge Detect Voltage (V) 3.75 ±0.05
Overcharge Release Voltage (V) 3.55 ±0.05
Over Discharge Detect Voltage (V) 2.20 ±0.1
Over Discharge Release Voltage (V) 2.50 ±0.1
Operating Temperature (°C) -20 to 70
Dimensions (mm) 115 x 54 x 12mm



Package Includes:

1 x Jiabaida (JBD) LiFePo4 15S 48V 40A Battery Management System - BMS Protection Board
