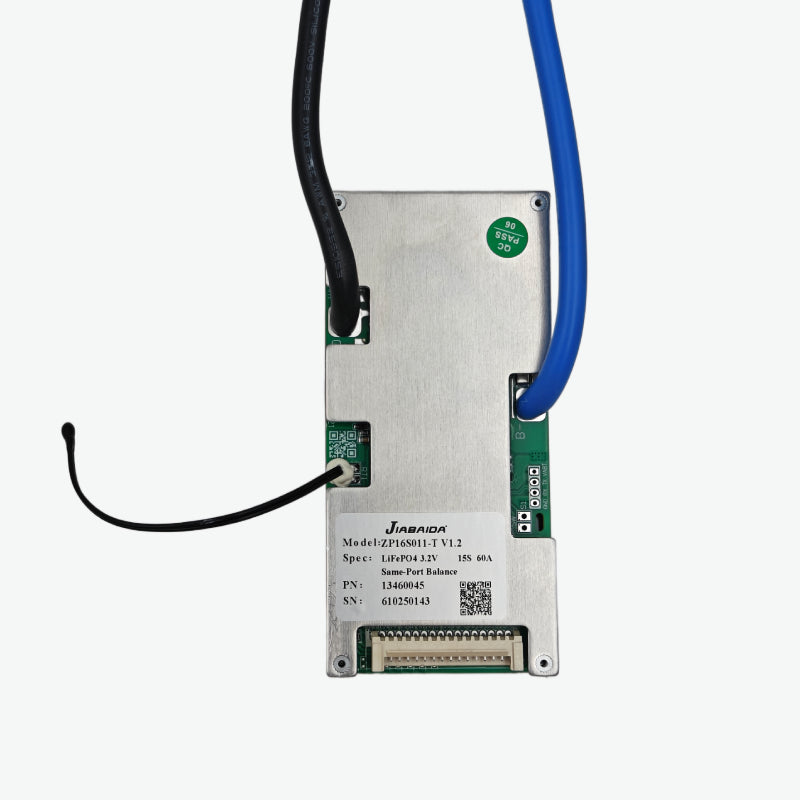

Jiabaida (JBD) LiFePo4 15S 48V 60A Battery Management System - BMS Protection Board
Jiabaida (JBD) LiFePo4 15S 48V 60A Battery Management System - BMS Protection Board
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
Jiabaida (JBD) LiFePo4 15S 48V 60A is a robust Battery Management System (BMS) based on the ZP16S011 hardware, engineered for 15-cell LiFePo4 battery packs requiring moderate to high discharge current. It offers intelligent passive balancing and comprehensive protection features such as overcharge, over-discharge, overcurrent, and short circuit protection. This BMS is ideal for medium- to high-demand applications like solar storage systems, electric bikes, and mobile power units.
Jiabaida (JBD) LiFePo4 15S 48V 60A BMS Features:
- 60A continuous discharge capability
- Passive balancing for optimized battery life
- Integrated over-voltage, under-voltage, short circuit, and overcurrent protection
- ZP16S011 hardware ensures efficient and stable performance
- Suitable for powerful LiFePo4 battery systems
Jiabaida (JBD) LiFePo4 15S 48V 60A BMS Specification:
| Specification | Value |
|---|---|
| Model | ZP16S011 |
| Supported Cells | 15S (LiFePo4) |
| Nominal Voltage (V) | 48V |
| Charge Voltage (V) | 54.75V |
| Charge Current (A) | 20A |
| Continuous Discharge Current (A) | 60A |
| Balance Current (mA) | 30 ±5 |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.55 ±0.05 |
| Over Discharge Detect Voltage (V) | 2.20 ±0.1 |
| Over Discharge Release Voltage (V) | 2.50 ±0.1 |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 115 x 54 x 12 |
Â
Package Includes:
1 x Jiabaida (JBD) LiFePo4 15S 48V 60A Battery Management System - BMS Protection Board
