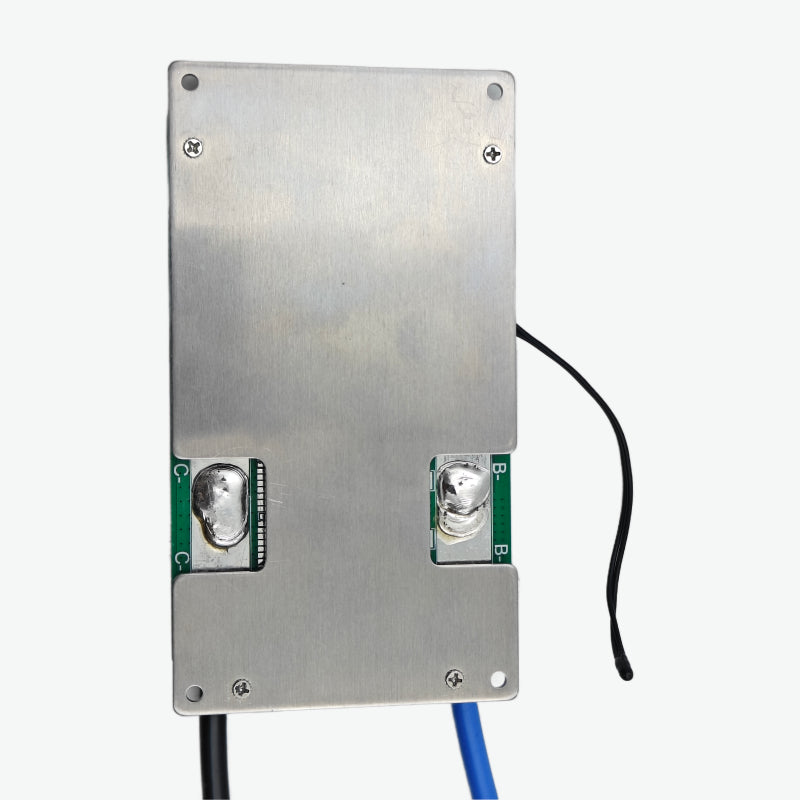

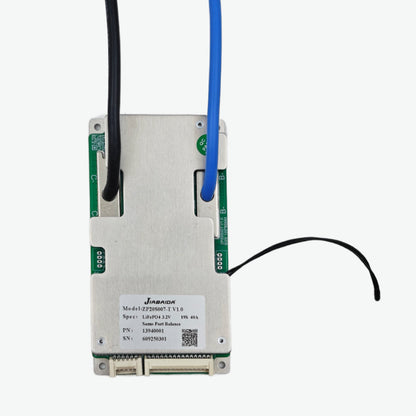

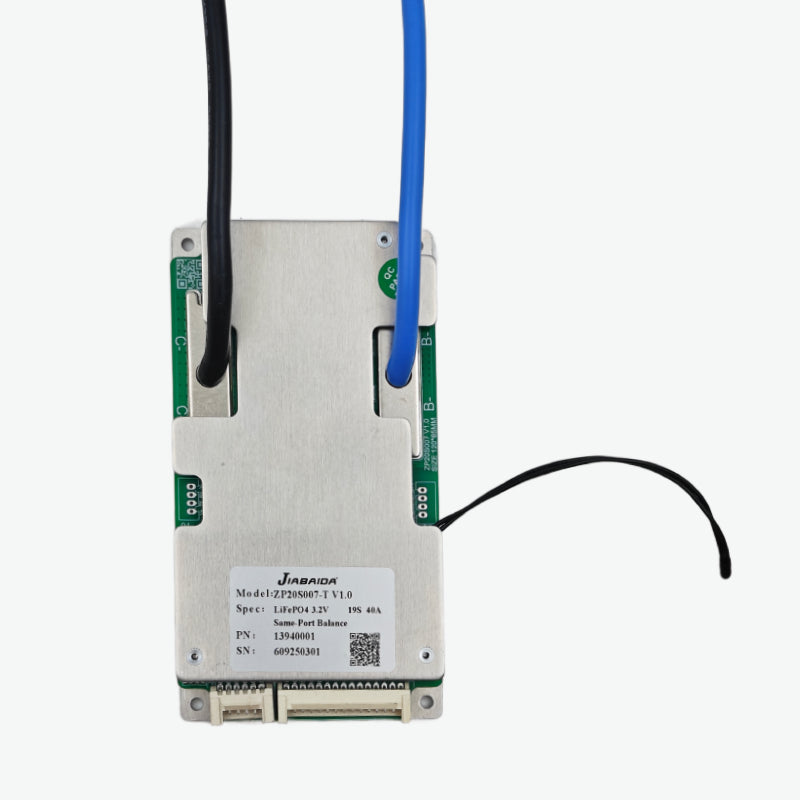

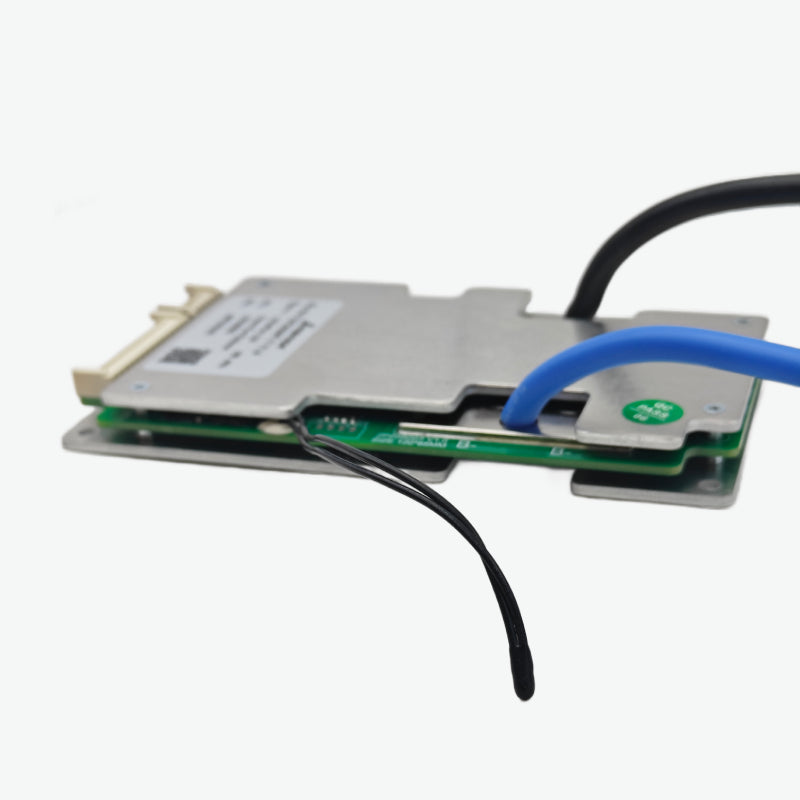

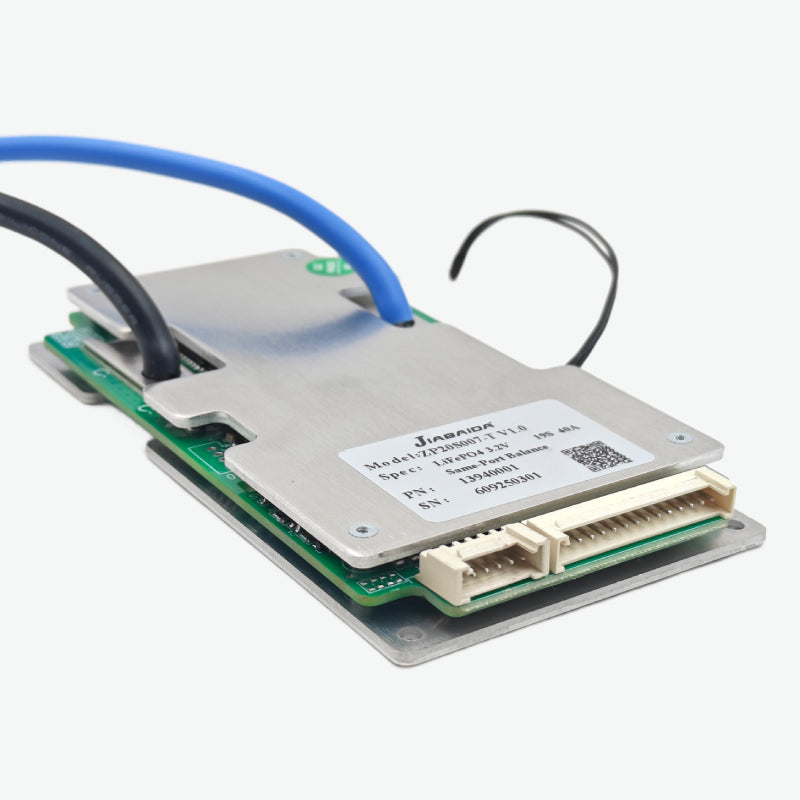

Jiabaida (JBD) LiFePo4 19S 40A Battery Management System - BMS Protection Board
Jiabaida (JBD) LiFePo4 19S 40A Battery Management System - BMS Protection Board
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
Jiabaida (JBD) LiFePo4 19S 40A is a reliable and intelligent Battery Management System (BMS) built on the ZP20S007 hardware platform, designed specifically for 19-cell LiFePo4 battery packs. It supports a continuous discharge of 40A and includes essential safety features like overcharge, over-discharge, short-circuit, and overcurrent protection. The board also integrates passive cell balancing to maintain battery health over time, making it ideal for applications such as solar storage systems, e-bikes, and backup power units.
Jiabaida (JBD) LiFePo4 19S 40A BMS Features:
- 40A continuous discharge for moderate-to-high power systems
- Intelligent passive balancing for cell longevity
- Comprehensive protection: over-voltage, under-voltage, overcurrent, short circuit
- ZP20S007 hardware ensures accurate and efficient battery control
- Compact and suitable for LiFePo4-based energy systems
Jiabaida (JBD) LiFePo4 19S 40A BMS Specifications:
| Specification | Value |
|---|---|
| Model | ZP20S007 |
| Supported Cells | 19S (LiFePo4) |
| Nominal Voltage (V) | 60.8V |
| Charge Voltage (V) | 69.35V |
| Charge Current (A) | 20A |
| Continuous Discharge Current (A) | 40A |
| Balance Current (mA) | 30 ±5 |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.55 ±0.05 |
| Over Discharge Detect Voltage (V) | 2.20 ±0.1 |
| Over Discharge Release Voltage (V) | 2.50 ±0.1 |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 120 x 65 x 14 |
Â

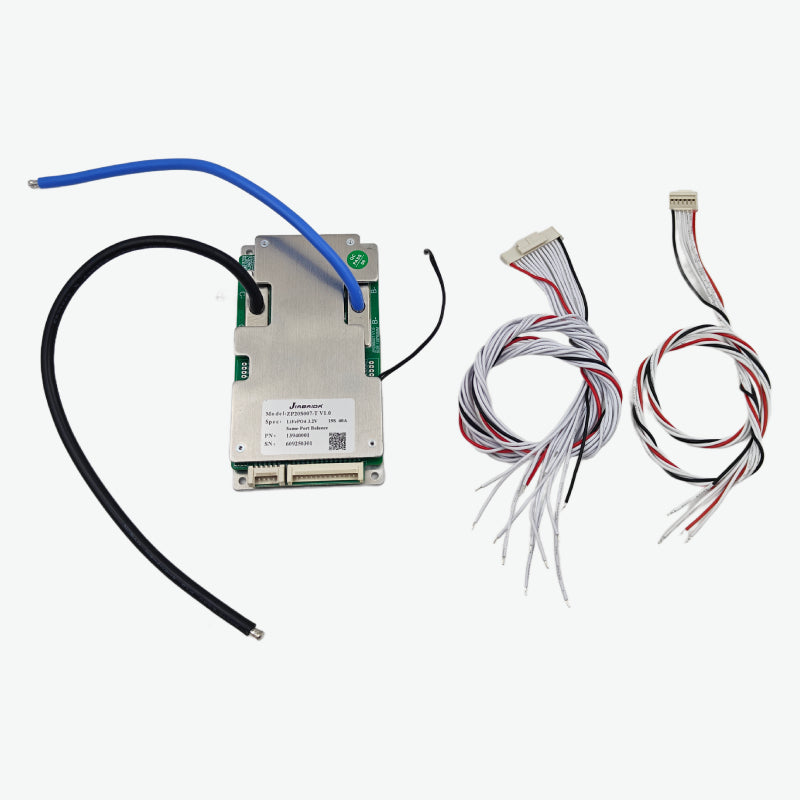

Package Includes:
1 x Jiabaida (JBD) LiFePo4 19S 40A Battery Management System - BMS Protection Board
