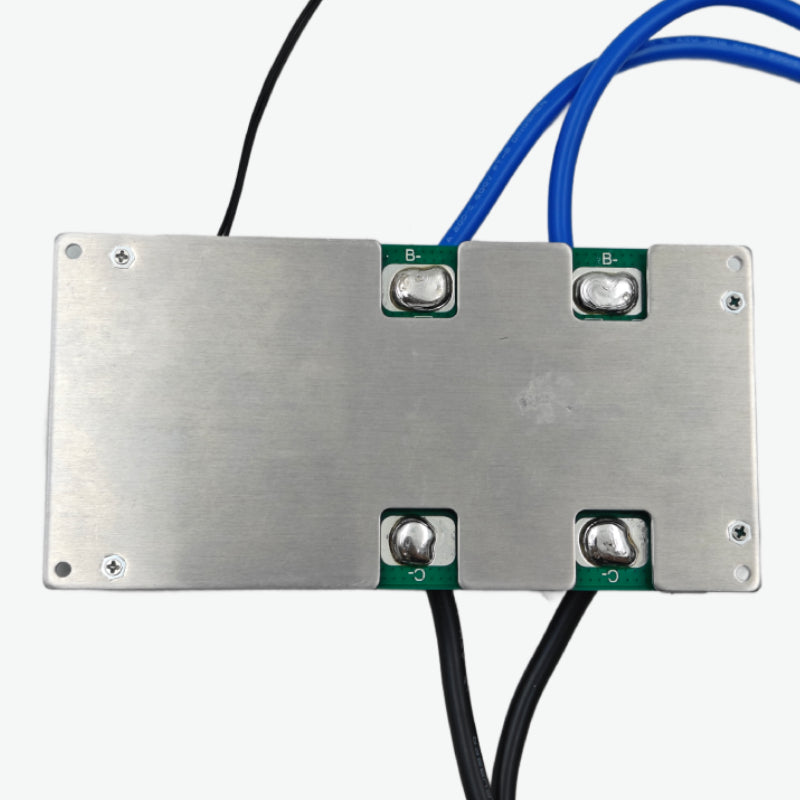

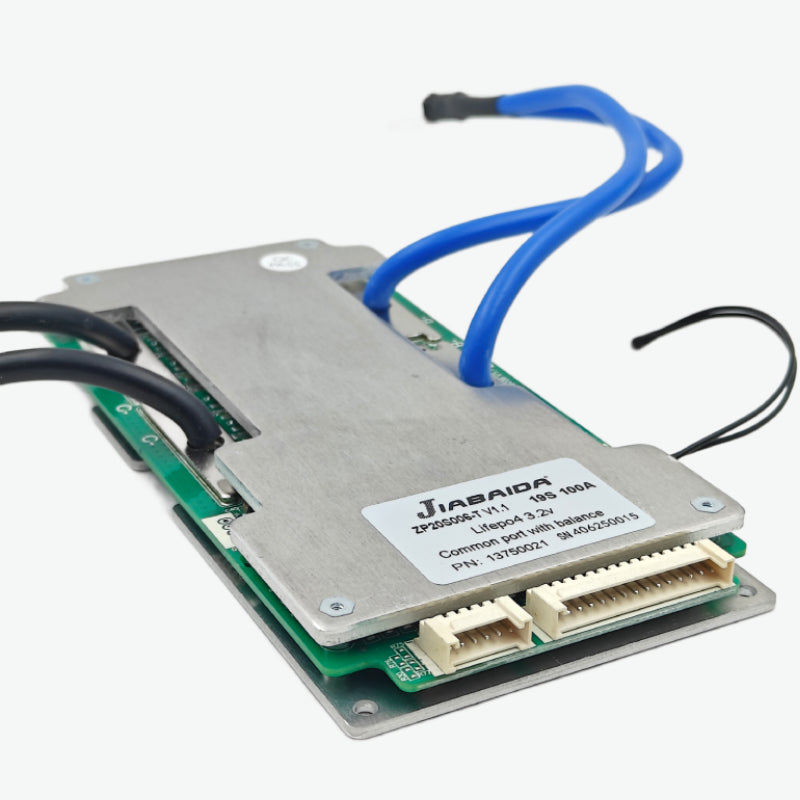

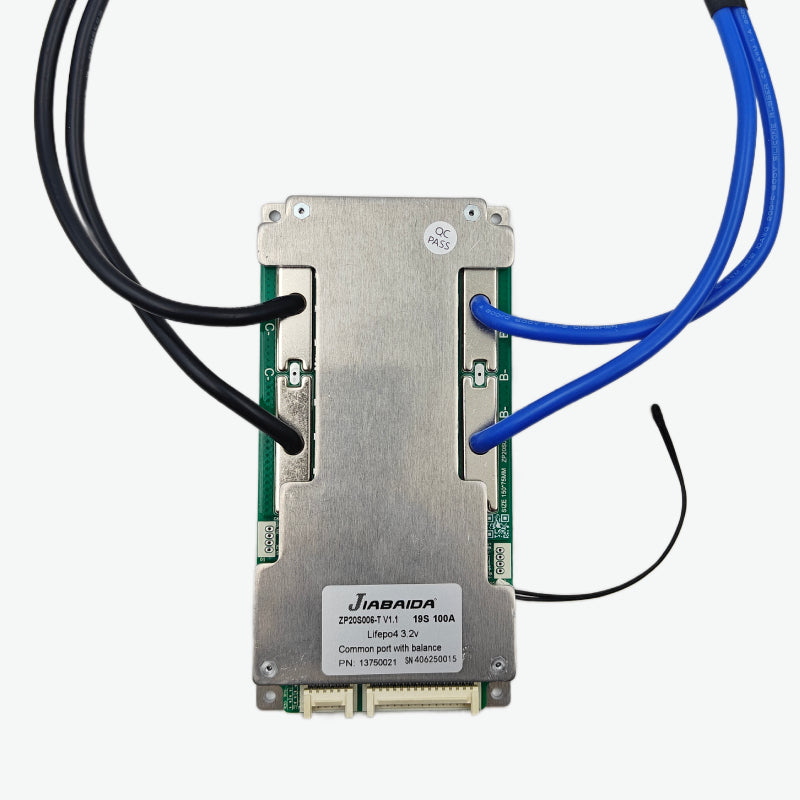

Jiabaida (JBD) LiFePo4 19S 60.8V 100A Battery Management System - BMS Protection Board

Jiabaida (JBD) LiFePo4 19S 60.8V 100A Battery Management System - BMS Protection Board

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

Jiabaida (JBD) LiFePo4 19S 60.8V 100A BMS is a high-performance Battery Management System designed using the TP20S001 hardware platform for large-scale LiFePo4 battery packs. This BMS supports advanced features such as smart communication, precise cell balancing, and comprehensive protection mechanisms. With a continuous discharge capacity of 100A, it is ideal for high-load applications including solar energy storage, electric vehicles, and industrial-grade battery systems.

Jiabaida (JBD) LiFePo4 19S 60.8V 100A BMS Features:

  • Advanced protection against overcharge, over-discharge, overcurrent, and short circuits
  • Smart BMS functionality with UART/CAN/RS485 communication support
  • Passive cell balancing for optimized pack health and longevity
  • TP20S001 platform ensures reliability and accuracy
  • Suitable for high-power LiFePo4-based applications

Jiabaida (JBD) LiFePo4 19S 60.8V 100A BMS Specification:

Specification Value
Model TP20S001
Supported Cells 19S (LiFePo4)
Nominal Voltage (V) 60.8
Charge Voltage (V) 68.4
Charge Current (A) 50
Continuous Discharge (A) 100
Balance Current (mA) ~30
Overcharge Detect Voltage (V) 3.75 ±0.05
Overcharge Release Voltage (V) 3.55 ±0.05
Over Discharge Detect Voltage (V) 2.2 ±0.1
Over Discharge Release Voltage (V) 2.5 ±0.1
Communication Interface UART / CAN / RS485
Operating Temperature (°C) -20 to 70
Dimensions (mm) 128 x 63 x 15

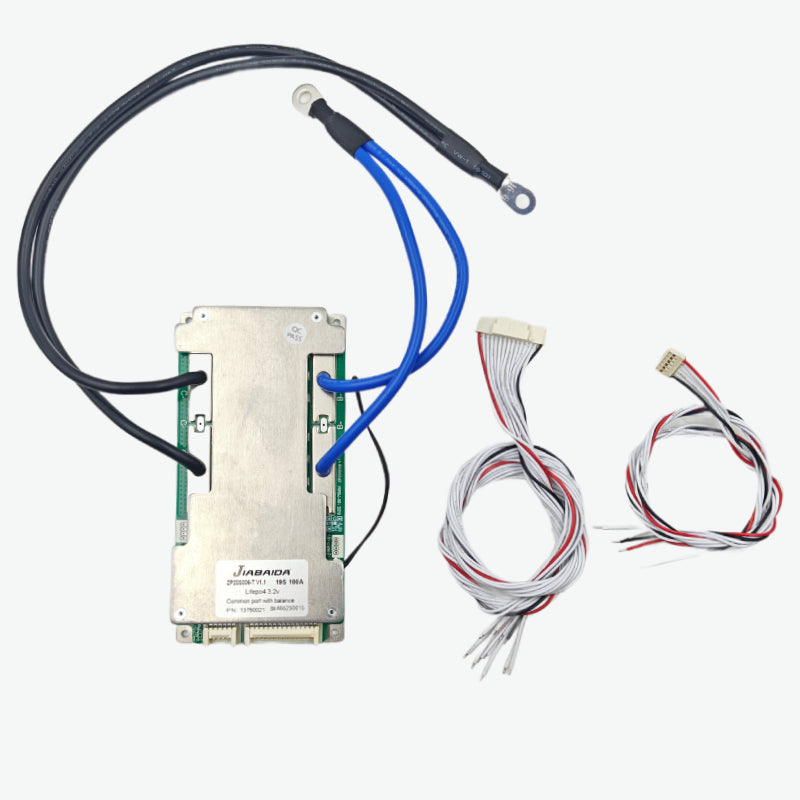

Package Includes:

1 x Jiabaida (JBD) LiFePo4 19S 60.8V 100A Battery Management System - BMS Protection Board
