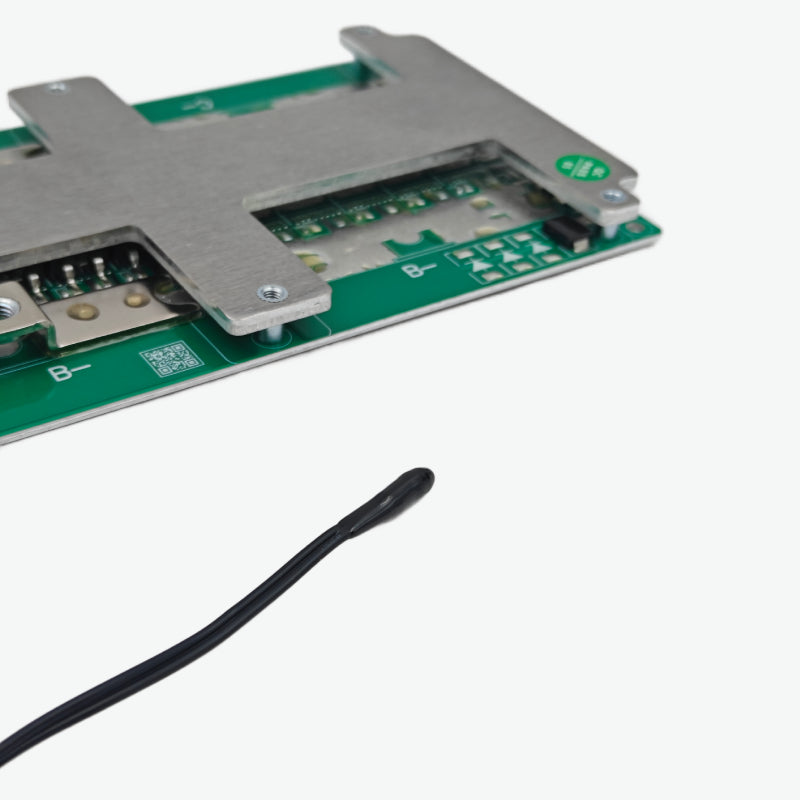

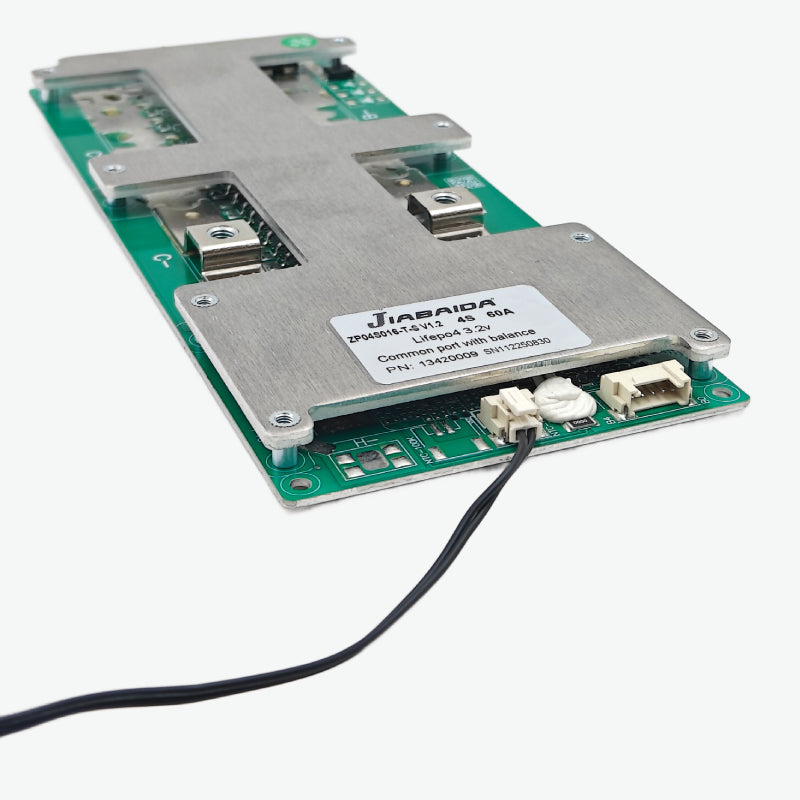

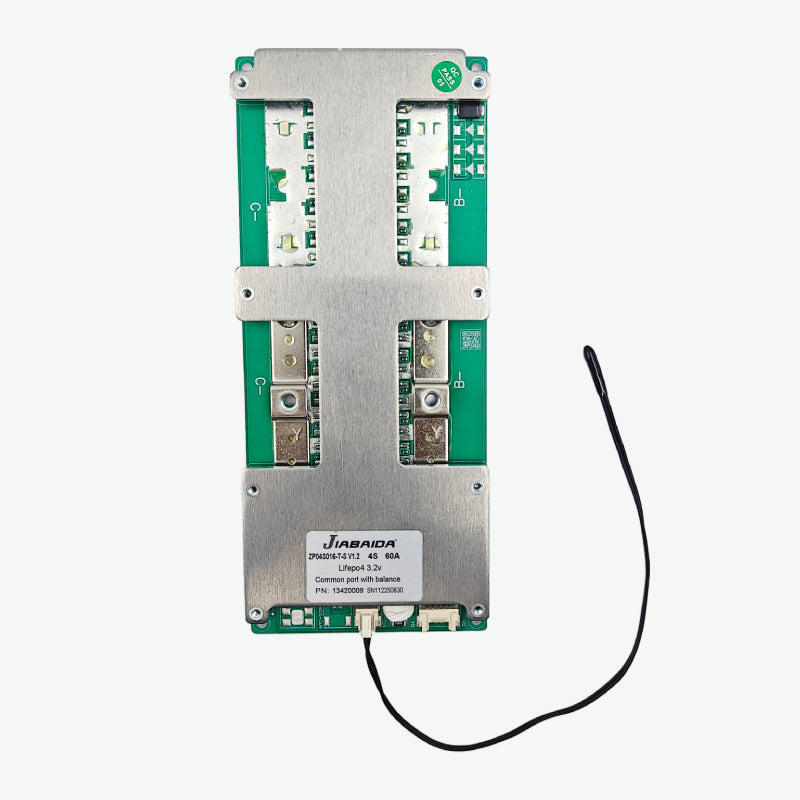

Jiabaida (JBD) LiFePo4 4S 12.8V 60A Battery Management System - BMS Protection Board
Jiabaida (JBD) LiFePo4 4S 12.8V 60A Battery Management System - BMS Protection Board
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
Jiabaida (JBD) LiFePo4 4S 12.8V 60AÂ Battery Management System is a high-performance BMS based on the HP04S024 model, engineered for 4S LiFePo4 battery packs requiring high discharge current. This BMS includes passive balancing and offers strong protection features such as overcharge, over-discharge, overcurrent, and short circuit protection. It is suitable for demanding applications like electric vehicles, solar storage, and power tools.
Jiabaida (JBD) LiFePo4 4S 12.8V 60A BMS Features:
- High 60A continuous discharge capability
- Intelligent passive balancing function
- Built-in protection against over-voltage, under-voltage, short circuit, and overcurrent

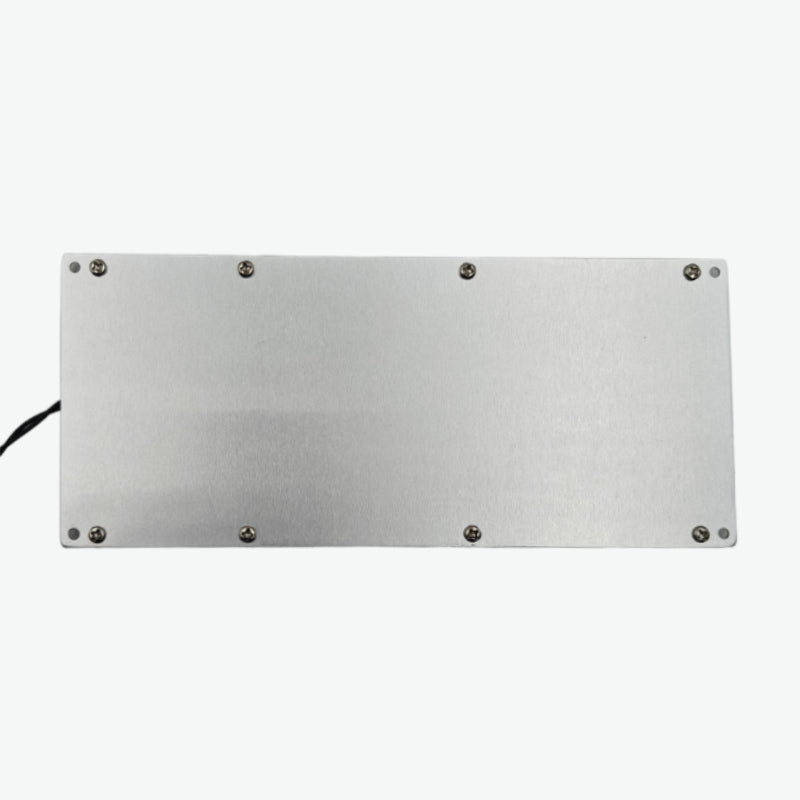

- Strong aluminum heat sink design for effective heat dissipation
- Suitable for heavy-duty LiFePo4 battery-powered systems
Jiabaida (JBD) LiFePo4 4S 12.8V 60A BMS Specifications:
| Specification | Value |
|---|---|
| Model | HP04S024 |
| Battery Type | Lithium Iron Phosphate (LiFePo4) |
| Series Configuration | 4 Series (4S) |
| Nominal Voltage (V) | 12.8 |
| Charging Voltage (V) | 14.6 |
| Continuous Discharge Current (A) | 60 |
| Continuous Charging Current (A) | 60 |
| Charge Voltage (per cell) | 3.6V (3.6V x number of cells) |
| Cell Voltage Range | 2.20~3.75V |
| Charge Current (A) | 30 |
| Balance Current (mA) | ~30 |
| Overcharge Detect (V) | 3.75 ±0.05 |
| Overcharge Release (V) | 3.55 ±0.05 |
| Over Discharge Detect (V) | 2.2 ±0.1 |
| Over Discharge Release (V) | 2.5 ±0.1 |
| Consumption | �150uA |
| Circuit Resistance | �10mR |
| Operating Temperature Range (°C) | -20 to 75 |
| Dimensions (mm) | 144 x 85 x 10 |
Â
Package Includes:

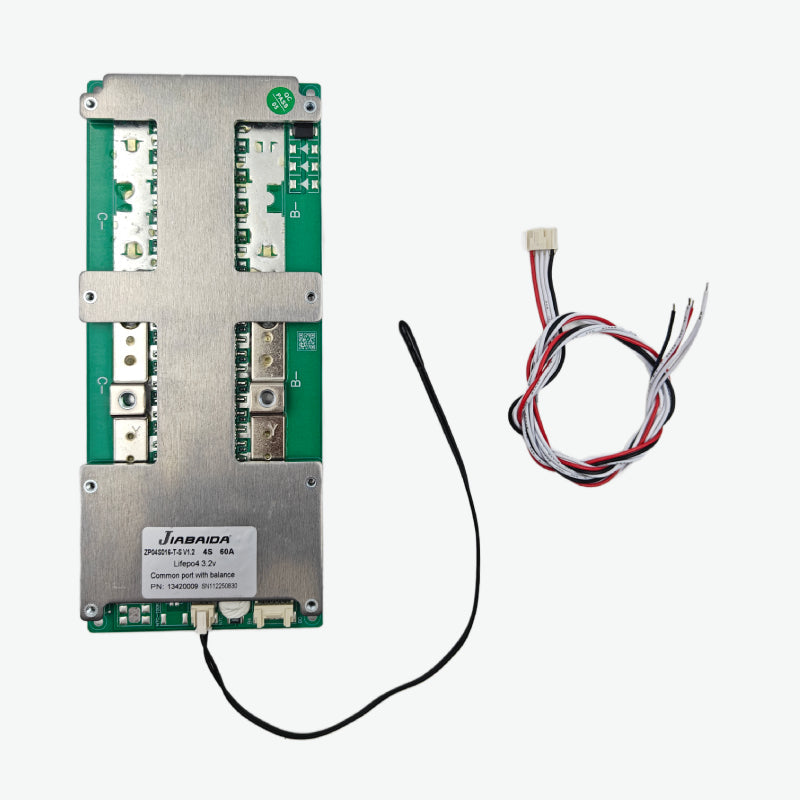

1 x Jiabaida (JBD) LiFePo4 4S 12.8V 60A Battery Management System - BMS Protection Board
