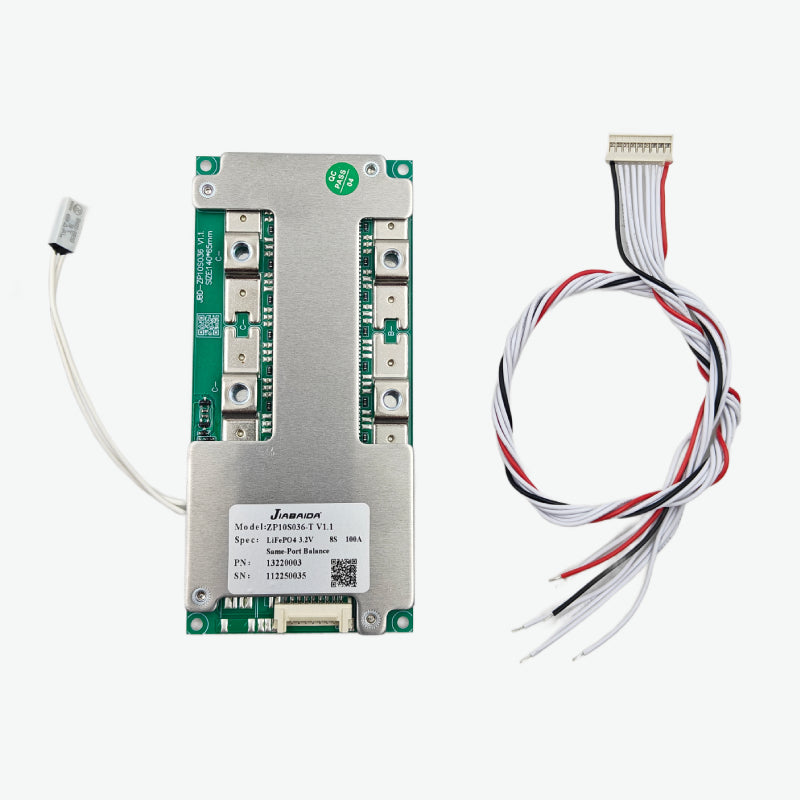

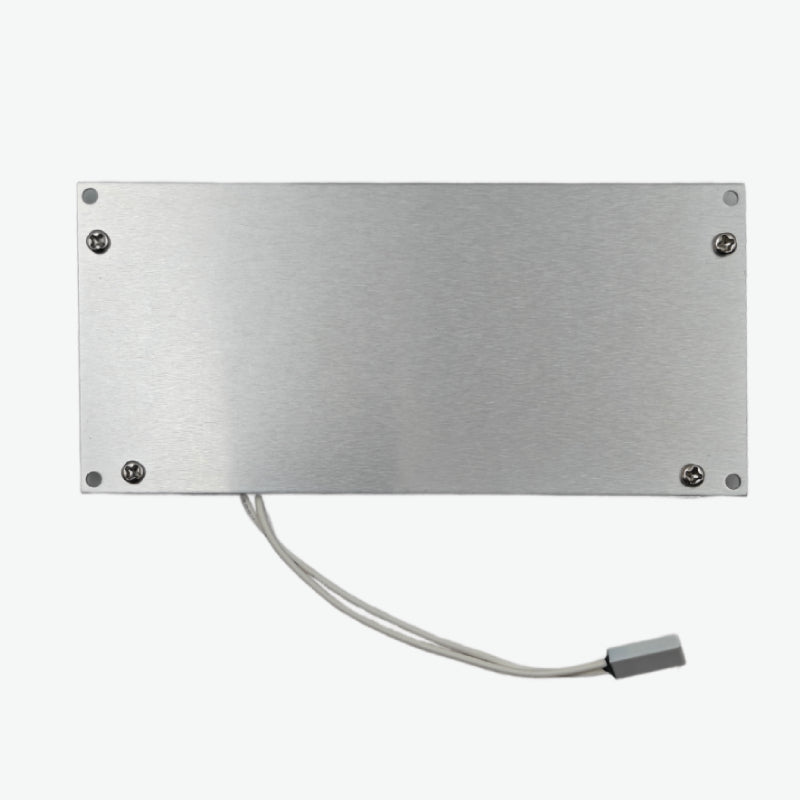

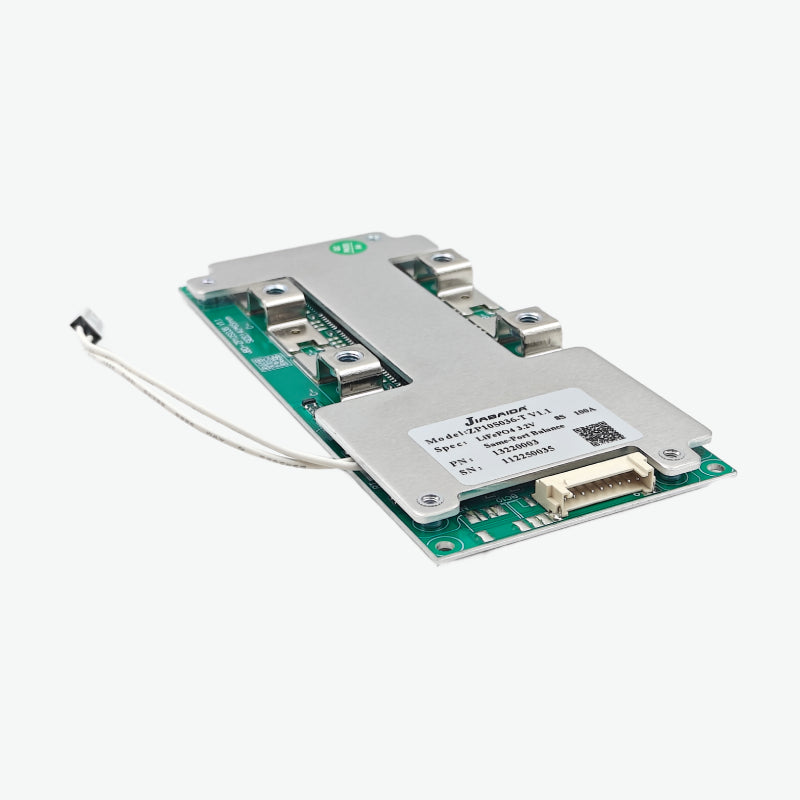

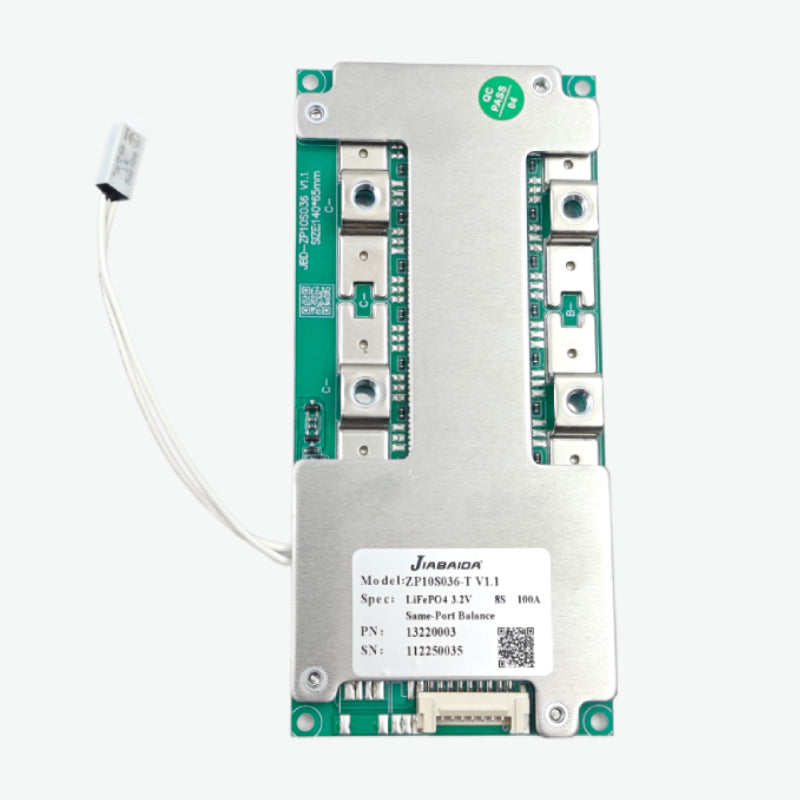

Jiabaida (JBD) LiFePo4 8S 25.6V 100A Battery Management System - BMS Protection Board

Jiabaida (JBD) LiFePo4 8S 25.6V 100A Battery Management System - BMS Protection Board

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

Jiabaida (JBD) LiFePo4 8S 25.6V 100A is a high-performance Battery Management System (BMS) built on the ZP10S036 hardware, tailored for 8-cell LiFePo4 requiring high current output. This features passive balancing, robust protection against overcharge, over-discharge, short circuit, and overcurrent, and supports continuous discharge up to 100A. It is ideally suited for electric vehicles, solar energy systems, and other high-power LiFePo4 battery applications where reliability and efficiency are critical.

Jiabaida (JBD) LiFePo4 8S 25.6V 100A BMS Features:

  • High 100A continuous discharge support
  • Intelligent passive cell balancing
  • Built-in protections for over-voltage, under-voltage, overcurrent, and short circuit
  • ZP10S036 hardware platform for precise battery management
  • Suitable for high-load LiFePo4 battery-powered systems

Jiabaida (JBD) LiFePo4 8S 25.6V 100A BMS Specification:

Specification Value
Model ZP10S036
Supported Cells 8S (LiFePo4)
Nominal Voltage (V) 25.6V
Charge Voltage (V) 29.2V
Charge Current (A) 50A
Continuous Discharge Current (A) 100A
Balance Current (mA) 30 ±5
Overcharge Detect Voltage (V) 3.75 ±0.05
Overcharge Release Voltage (V) 3.55 ±0.05
Over Discharge Detect Voltage (V) 2.20 ±0.1
Over Discharge Release Voltage (V) 2.50 ±0.1
Operating Temperature (°C) -20 to 70
Dimensions (mm) 140 x 65 x 12mm



Package Includes:

1 x Jiabaida (JBD) LiFePo4 8S 25.6V 100A Battery Management System - BMS Protection Board
