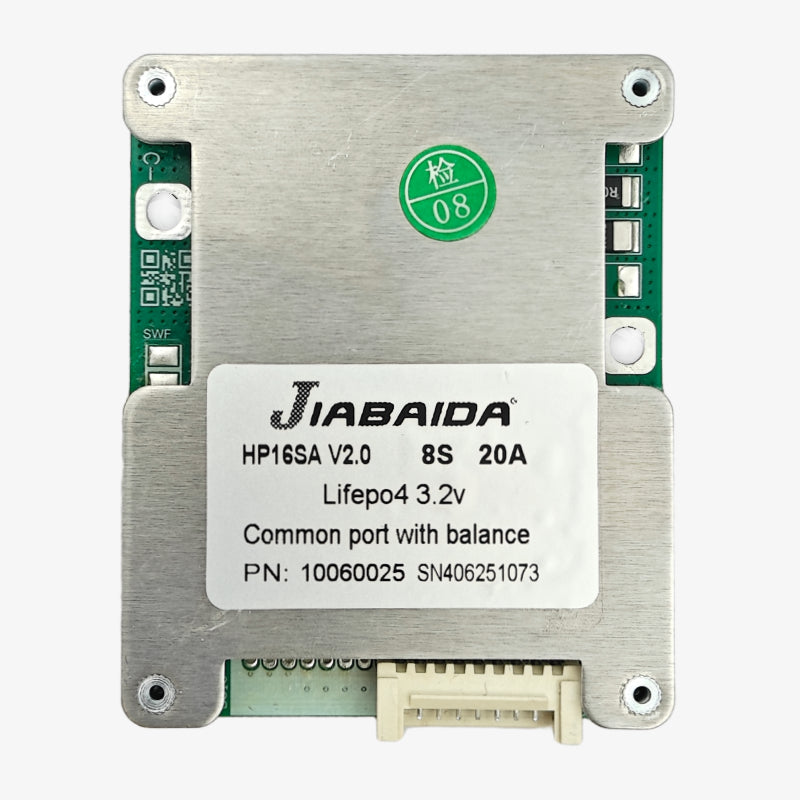

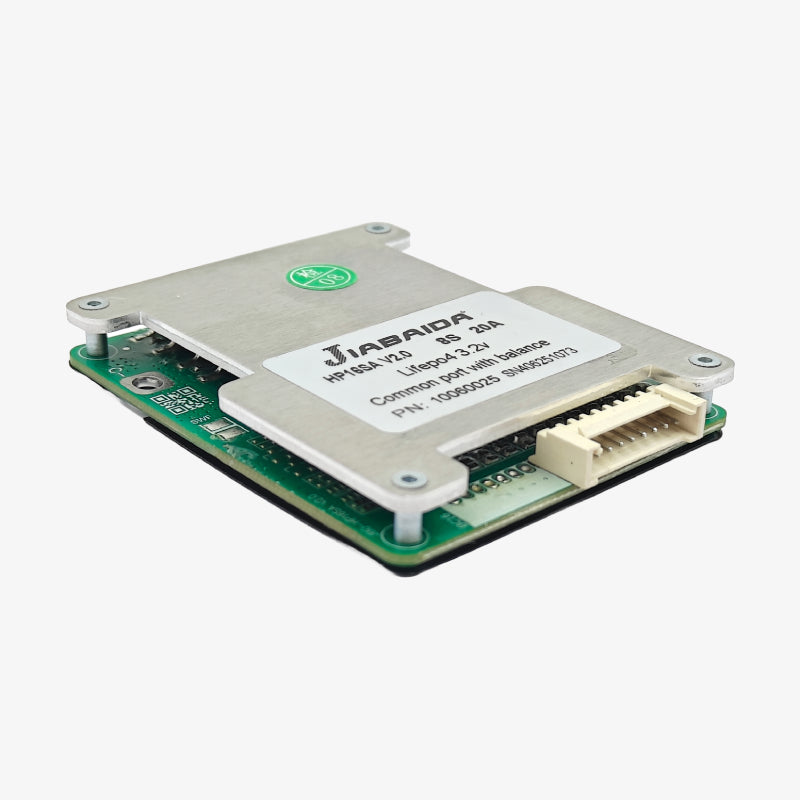

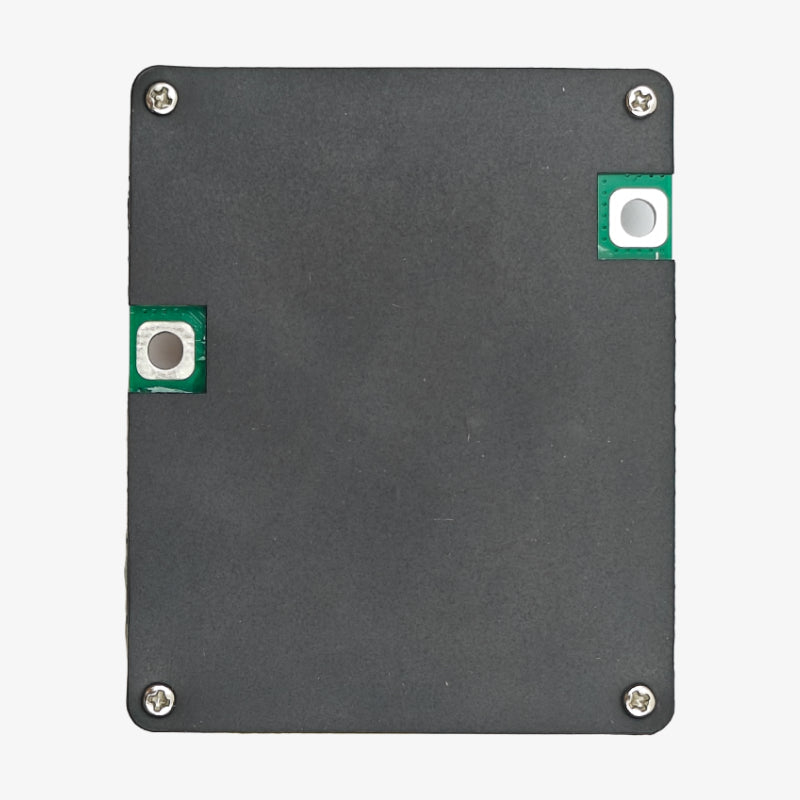

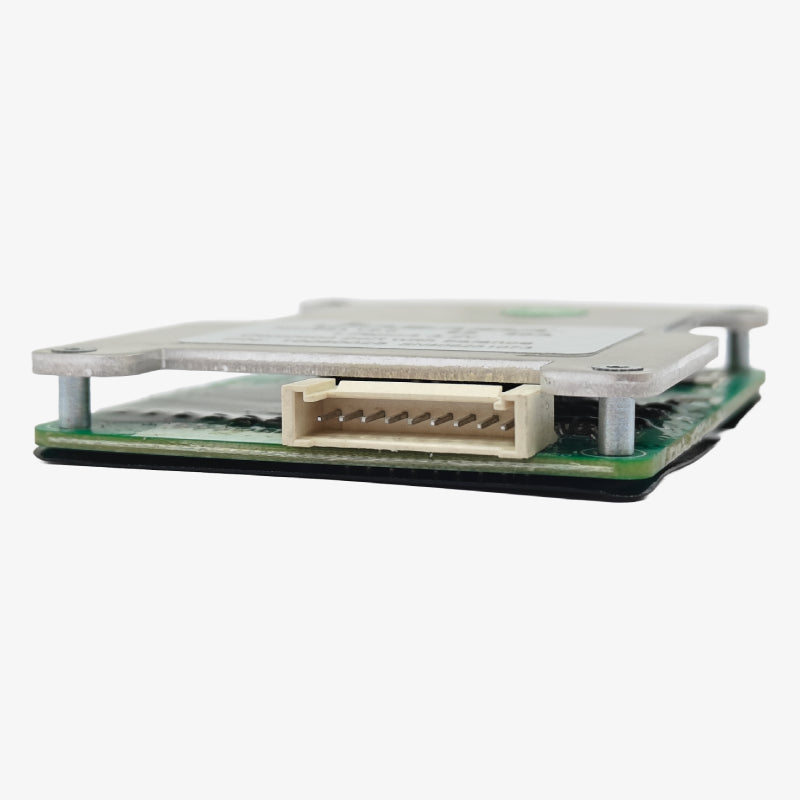

Jiabaida (JBD) LiFePo4 8S 25.6V 20A BMS is a high-performance Battery Management System (BMS) based on the HP16SA chipset, designed for 8-cell LiFePo4 . This provides 20A continuous discharge and offers comprehensive protection against overcharge, over-discharge, and short circuits, ensuring safe and efficient operation. The passive balancing function helps maintain balanced cell voltage for optimal battery life. With a compact design and integrated aluminum heat sink, it is ideal for use in electric vehicles, solar storage systems, and other high-power applications.
Jiabaida (JBD) LiFePo4 8S 25.6V 20A BMS Features:
- 20A continuous discharge current for moderate-power applications
- Passive cell balancing for optimal battery performance
- Integrated protection for overcharge, over-discharge, and short-circuit
- HP16SA chipset for precise control and reliability
- Aluminum heat sink for effective heat dissipation
- Designed for 8S LiFePo4 battery packs
Jiabaida (JBD) LiFePo4 8S 25.6V 20A BMS Specification:
| Specification | Value |
|---|---|
| Chipset | HP16SA |
| Supported Cells | 8S (LiFePo4) |
| Nominal Voltage (V) | 25.6V |
| Charge Voltage (V) | 29.2V |
| Charge Current (A) | 10A |
| Continuous Discharge Current (A) | 20A |
| Balance Current (mA) | 30 ±5 |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.60 ±0.05 |
| Over-Discharge Detect Voltage (V) | 2.00 ±0.1 |
| Over-Discharge Release Voltage (V) | 2.50 ±0.1 |
| Operating Temperature (°C) | -20°C to 60°C |
| Dimensions (mm) | 57x 69 x 10mm |
Â
Package Includes:
1 x Jiabaida (JBD) LiFePo4 4S 12.8V 20A Battery Management System - BMS Protection Board
