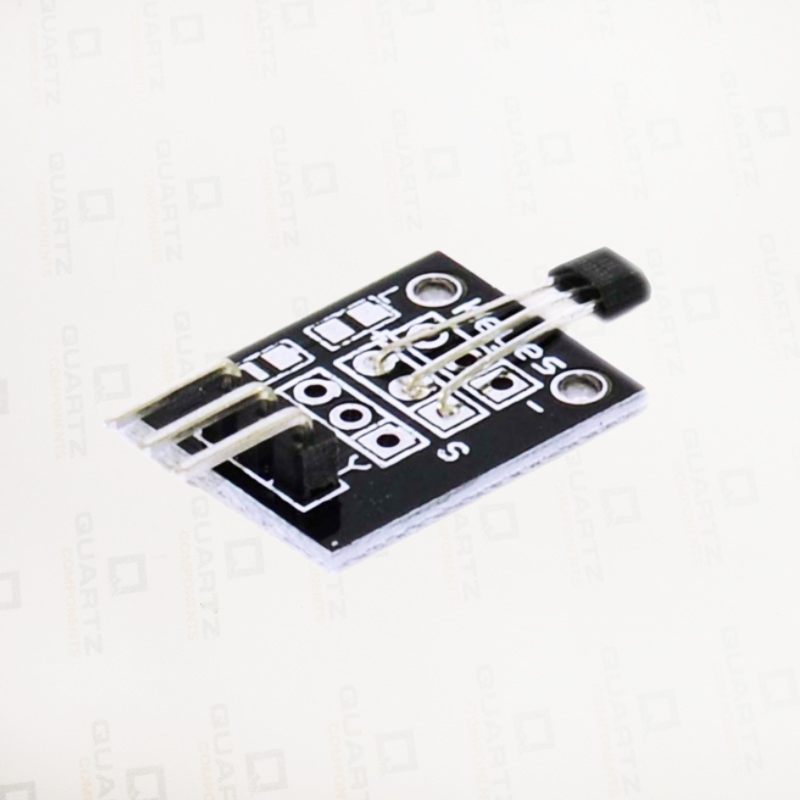

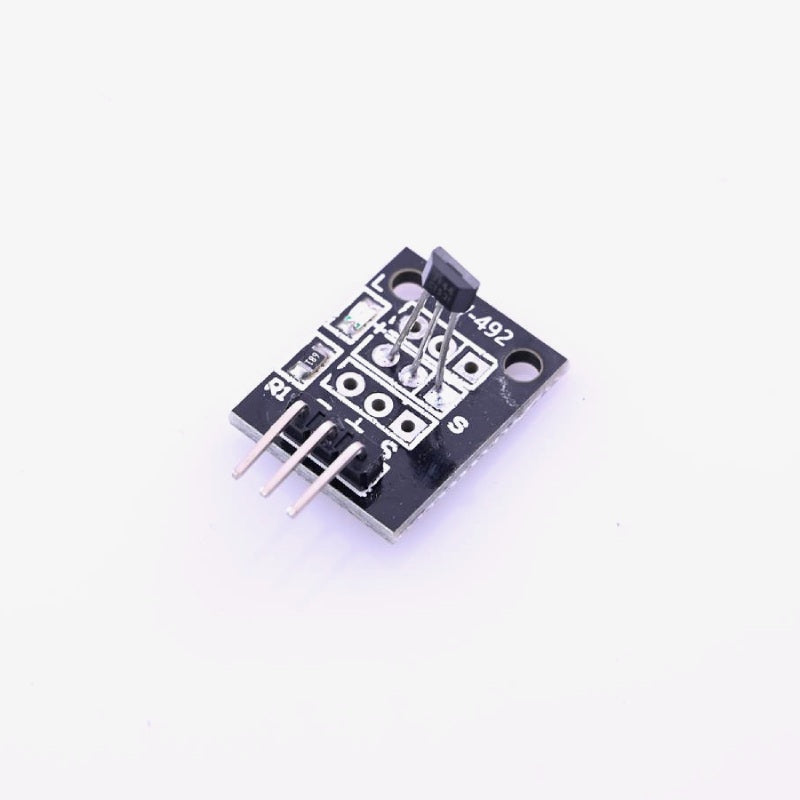

KY-035 Hall Magnetic Sensor Module

It is important to detect and measure magnetic field of any component in many industrial applications. If you want to detect if the magnetic tip of the tool is still magnetized or if electromagnet you designed to separate magnetic objects from heap of scrap the test of magnetic field is a must and electromagnets are quite big in size so we need a sensor which is small and portable to be used everywhere in need. The KY-035 Hall Effect Magnetic Sensor Module is an analog sensor which reads the strength of magnetic field and outputs the corresponding voltage at the analog output pin. It is a 5V sensor and it can be used with Microcontrollers and development boards like Arduino, Raspberry Pi, ARM and PIC etc.

KY-035 Analog Hall Magnetic Sensor Module Specifications

• 5V Input Power
• Analog output
• Low Cost Device
• Small and Portable
• Can detect both poles of the Magnet

Product Description

It is a 5V powered Module hence you need to power the module with 5V supply and Take the output from Analog Signal Output Pin on the module. As it is providing analog values you need to connect it to an ADC first but most of the development boards have their own ADC so you don’t have to worry about it just find the Analog Input pin and connect the Output wire to it.

Package Contents

1 × KY035 Analog Hall Effect Magnetic Sensor
