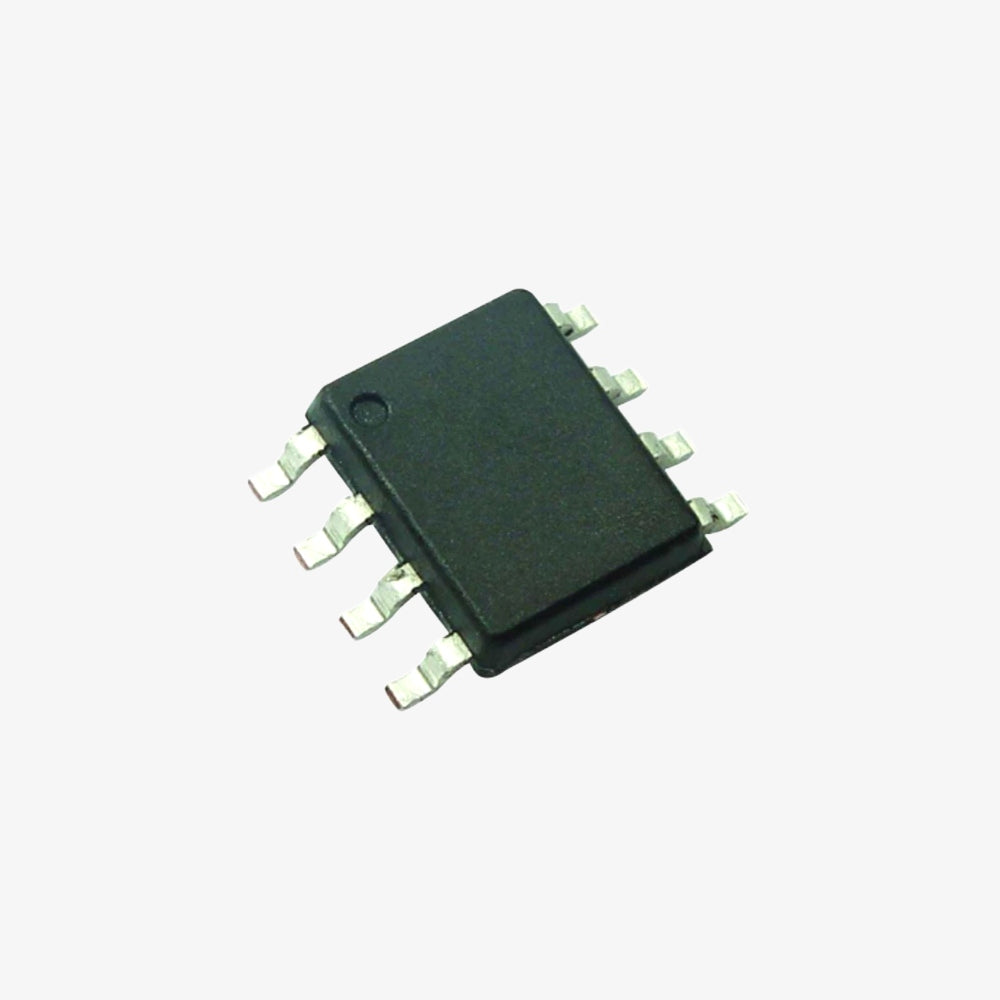

L6565 Quasi-Resonant SMPS Controller IC (ST) - SOP-8 SMD Package

The L6565 is a high-performance quasi-resonant switch-mode power supply (SMPS) controller IC designed for efficient power conversion. It provides advanced features for regulating and controlling power supplies, ensuring high efficiency and reliability. The L6565 is housed in a SOP-8 SMD package, offering a compact solution for power management in various applications.

Specifications:

• IC Type: Quasi-Resonant SMPS Controller
• Manufacturer: STMicroelectronics
• Package Type: SOP-8 SMD
• Package Size: 8 Pins
• Input Voltage Range: 8 V to 16 V
• Maximum Switching Frequency: 100 kHz
• Operating Temperature Range: -40°C to +125°C

Pin Configuration:

1. VCC: Supply Voltage
2. GND: Ground
3. CSN: Current Sense Negative
4. CSP: Current Sense Positive
5. COMP: Compensation Network
6. RT: Timing Resistor
7. TQ: Quasi-Resonant Timing Capacitor
8. OUT: Output Driver

Features:

• Quasi-resonant operation for high efficiency
• Integrated current sensing and control
• Adjustable switching frequency
• Built-in overcurrent and thermal protection
• Compact SOP-8 package for space-efficient designs

Applications:

• Power supplies for electronic devices
• DC-DC converters
• AC-DC adapters
• Industrial power management
• Consumer electronics

Package Includes:

1 x L6565 Quasi-Resonant SMPS Controller IC (ST) (SOP-8 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
