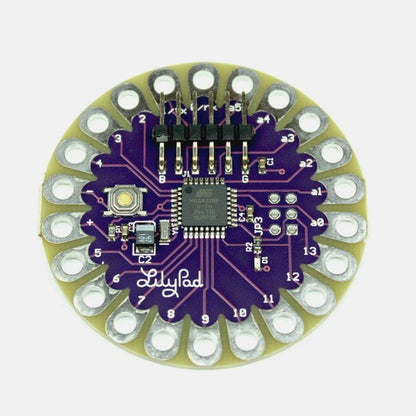

LilyPad ATmega328P 16M Development Board - Compatible with Arduino

Lilypad is a fancy looking development board from Arduino. It is based on the and offers 14 Digital I/O pins and 6 Analog Channels. It also has 6 PWM channels and a wide operating voltage from 2.7V to 5.5V making it suitable for battery-operated applications.

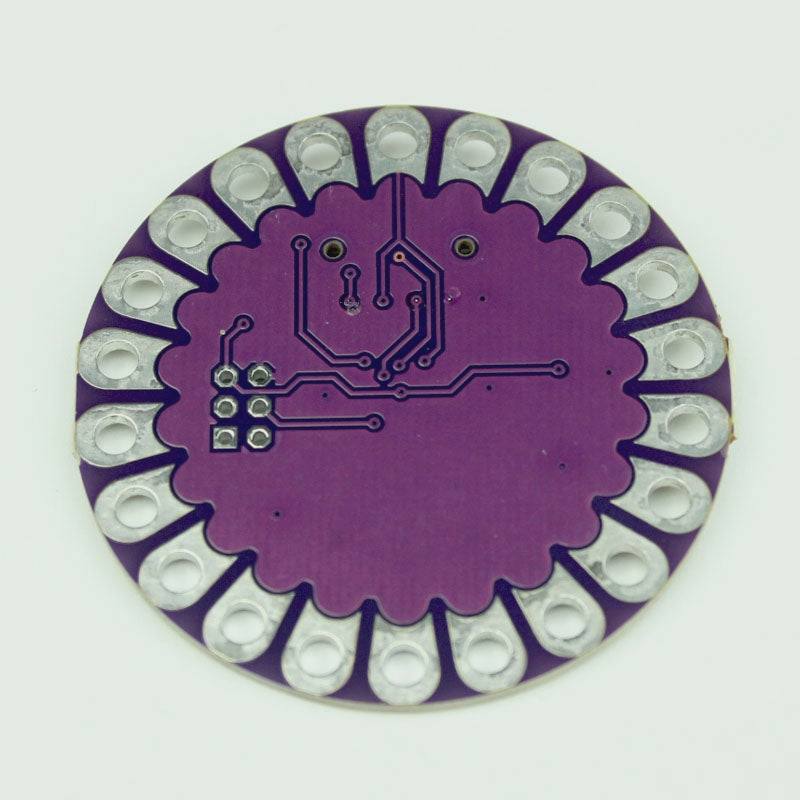

This Lilypad 328 16M board has a flat bottom and large pinholes making it easy for being sewn into clothing. It is commonly used in e-textile and other wearable electronics applications. It offers the same functionality you find in other Arduino boards, in a lightweight, round package design to minimize snagging and profile.

Features and Specifications:

• Microcontroller: ATmega328V
• Operating Voltage Range: 2.7-5.5 V
• Input Voltage : 2.7-5.5 V
• Digital I/O Pins:14 Nos (of which 6 provide PWM output)
• Analog Input Pins: 6
• PWM Channels: 6
• DC Current per I/O Pin:40 mA
• Flash Memory: 16 KB (of which 2 KB used by bootloader)
• SRAM: 1 KB
• EEPROM: 512 bytes
• Clock Speed: 8 MHz

Washability: Wash at your own risk. We recommend washing projects by hand with a mild detergent. Drip dry. Make sure you remove your power supply first!
