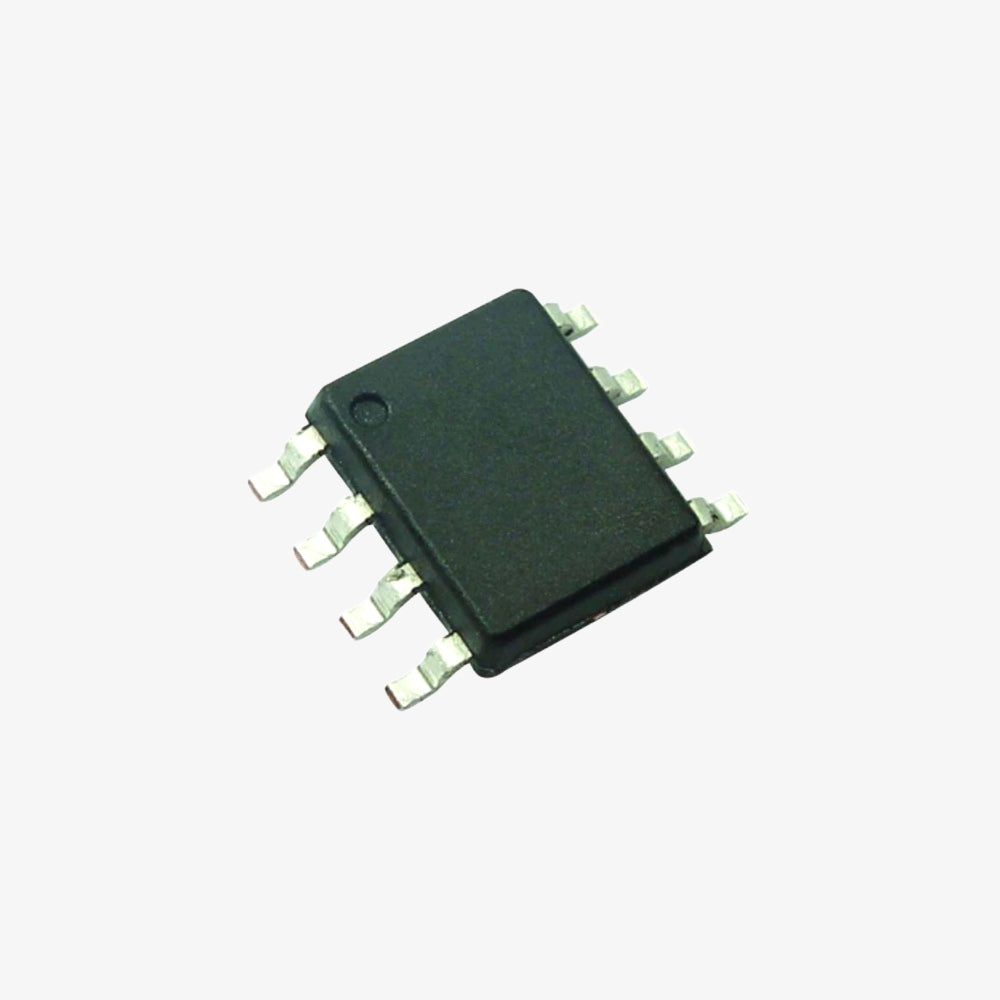

LM258 Low Power Dual Op-Amp IC - SOP-8 SMD Package

The LM258 is a low-power dual operational amplifier designed for general-purpose applications. It offers high gain and internal frequency compensation, making it suitable for a wide range of analog circuit designs. The LM258 operates with a single power supply and is available in a compact SOP-8 SMD package, ideal for space-constrained applications.

LM258 Op Amp Specifications:

• IC Type: Dual Operational Amplifier
• Package Type: SOP-8 SMD
• Package Size: 8 Pins
• Supply Voltage: 3 V to 32 V (single supply) or ±1.5 V to ±16 V (dual supply)
• Supply Current: 500 μA per amplifier (typical)
• Input Offset Voltage: 3 mV (maximum)
• Input Bias Current: 20 nA (maximum)
• Voltage Gain: 100 dB (typical)
• Bandwidth: 1 MHz (unity gain)
• Slew Rate: 0.7 V/μs
• Operating Temperature Range: 0°C to +70°C

Pin Configuration:

1. Output A: Output of Amplifier A
2. Inverting Input A: Inverting Input of Amplifier A
3. Non-Inverting Input A: Non-Inverting Input of Amplifier A
4. V-: Negative Supply Voltage
5. Non-Inverting Input B: Non-Inverting Input of Amplifier B
6. Inverting Input B: Inverting Input of Amplifier B
7. Output B: Output of Amplifier B
8. V+: Positive Supply Voltage

Features:

• Dual operational amplifiers in one package
• Low power consumption
• Wide supply voltage range
• Internally frequency compensated
• Compatible with single or dual power supplies
• Compact SOP-8 package for efficient designs

Applications:

• Signal conditioning
• Audio amplifiers
• Active filters
• Integrators and differentiators
• General-purpose analog circuits

Package Includes:

1 x LM258 Low Power Dual Op-Amp IC (SOP-8 SMD Package)
