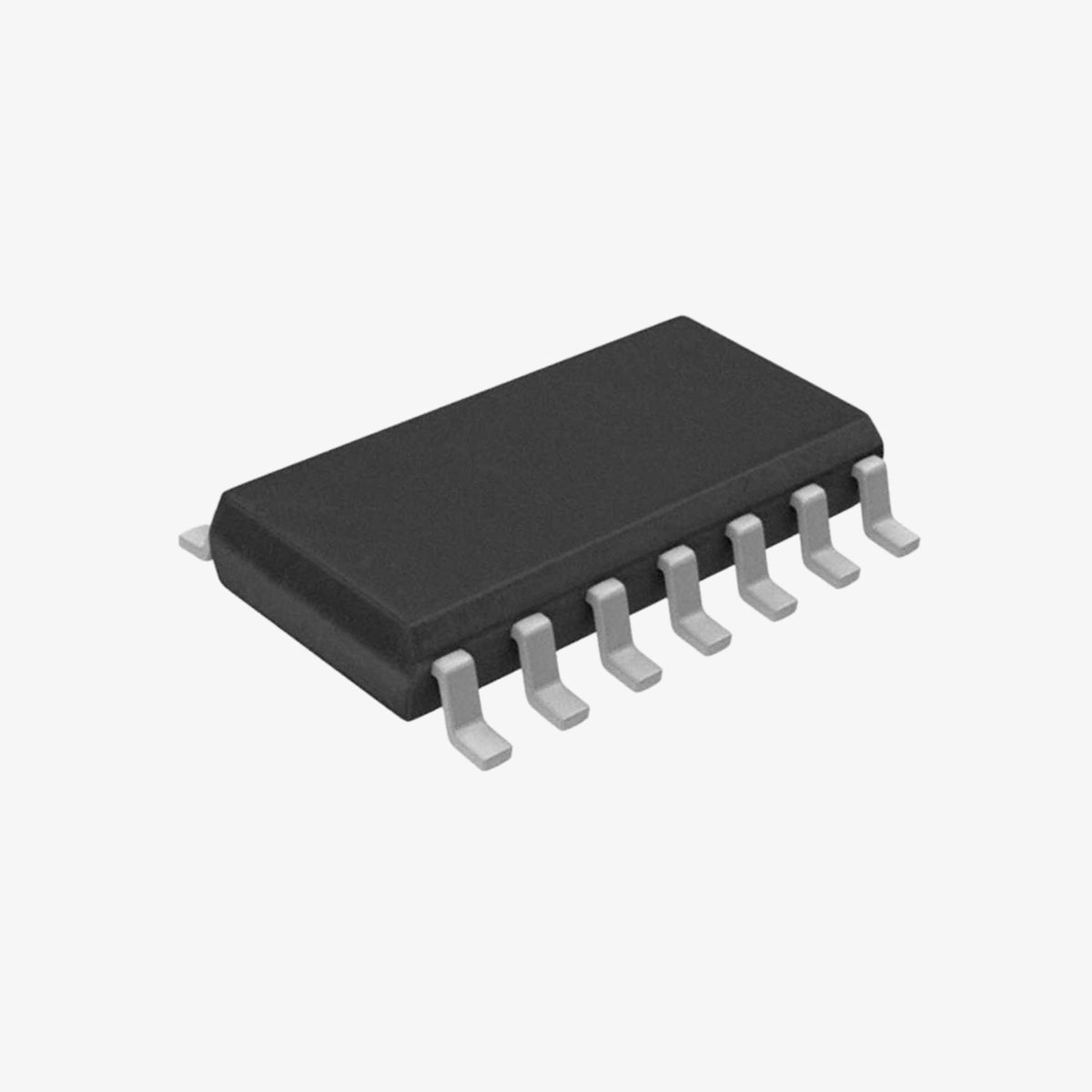

LM324 Low Power Quad Op-Amp IC - SMD Package

The LM324 is a low-power, quad operational amplifier (Op-Amp) IC that includes four independent, high-gain, internally frequency-compensated op-amps. It is commonly used in a variety of analog applications, including signal processing, filtering, and voltage amplification. The IC is available in various SMD packages, making it suitable for compact and high-density PCB designs.

LM324 IC Features

• Quad Operational Amplifiers: Contains four independent op-amps in a single package, enabling multiple analog functions within one IC.
• Low Power Consumption: Designed for low power operation, making it ideal for battery-operated and energy-efficient applications.
• Wide Supply Voltage Range: Operates over a wide range of supply voltages, from 3V to 32V, providing flexibility in various applications.
• Internal Frequency Compensation: Ensures stable operation without requiring external compensation components.
• SMD Package: Available in a variety of surface-mount packages, such as SOIC-14 and TSSOP-14, for easy integration into space-constrained designs.

LM324 Op Amp Specifications

• Number of Channels: 4 (quad op-amp)
• Supply Voltage Range: 3V to 32V (single supply), ±1.5V to ±16V (dual supply)
• Input Offset Voltage: 2 mV typical
• Gain Bandwidth Product: 1 MHz typical
• Slew Rate: 0.5 V/µs typical
• Input Bias Current: 20 nA typical
• Output Voltage Swing: 0V to (V+ - 1.5V) with single supply
• Operating Temperature: 0°C to +70°C (commercial grade) or -40°C to +85°C (industrial grade)

• Pin Count: 14

Package Includes:

1 x LM324 Low Power Quad Op-Amp IC - SMD Package

Note: Product images are for illustrative purposes only and may differ from the actual product.
