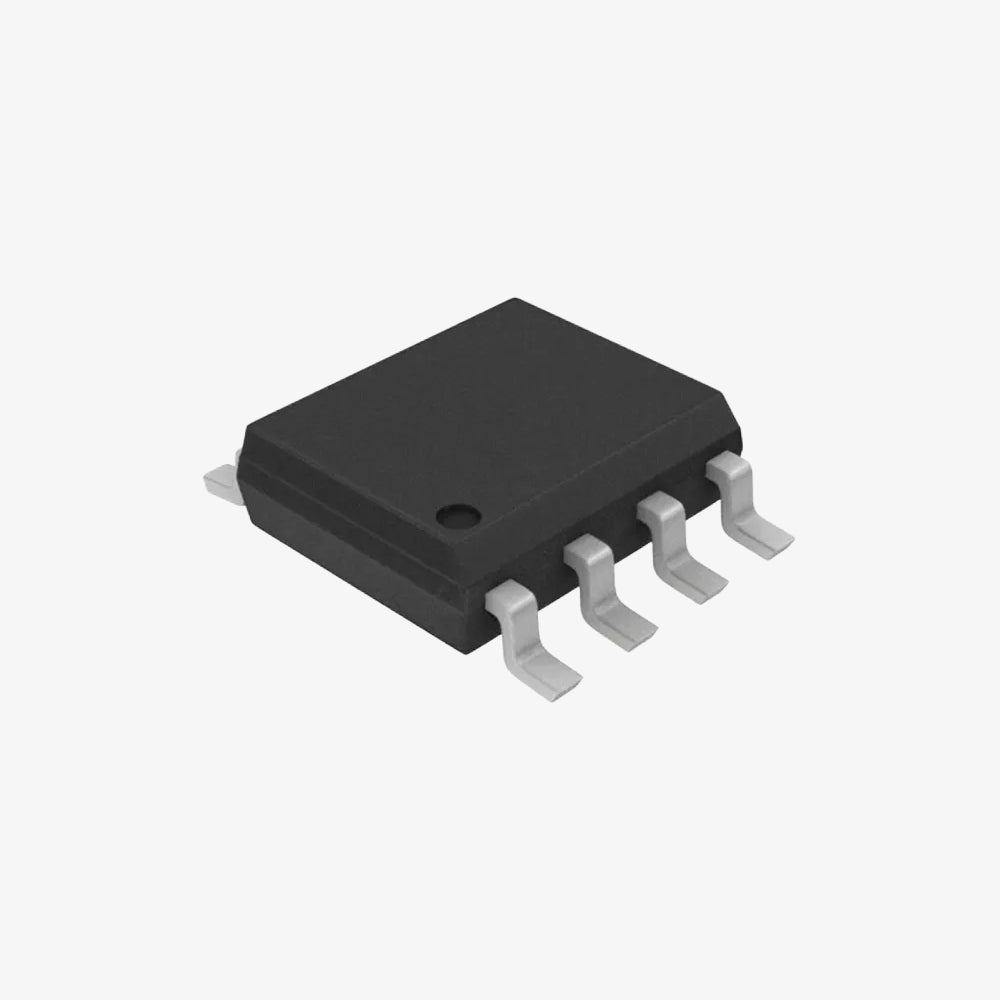

LM358 Low Power Dual Op-Amp IC - SOIC-8 SMD Package

The is a widely used low-power dual operational amplifier (Op-Amp) IC. It consists of two independent, high-gain, internally frequency-compensated op-amps, making it suitable for a wide range of analog applications, including signal conditioning, filtering, and amplification. The IC is available in a SOIC-8 SMD package, making it ideal for compact and space-constrained designs.

LM358 IC Features

• Dual Operational Amplifiers: Contains two independent op-amps in a single package, allowing for multiple analog functions in one IC.
• Low Power Consumption: Designed for low power operation, making it suitable for battery-powered and energy-efficient applications.
• Wide Supply Voltage Range: Operates over a wide range of supply voltages, from 3V to 32V, providing versatility in different applications.
• Internal Frequency Compensation: Ensures stable operation without the need for external components.
• SOIC-8 SMD Package: Compact surface-mount package ideal for space-limited PCB designs.

LM358 Op Amp Specifications

• Number of Channels: 2 (dual op-amp)
• Supply Voltage Range: 3V to 32V (single supply), ±1.5V to ±16V (dual supply)
• Input Offset Voltage: 3 mV typical
• Gain Bandwidth Product: 1 MHz typical
• Slew Rate: 0.3 V/µs typical
• Input Bias Current: 45 nA typical
• Output Voltage Swing: 0V to (V+ - 1.5V) with single supply
• Operating Temperature: 0°C to +70°C
• Package Type: SOIC-8 (Small Outline Integrated Circuit)
• Pin Count: 8

Package Includes:

1 x LM358 Low Power Dual Op-Amp IC - SOIC-8 SMD Package

Note: Product images are for illustrative purposes only and may differ from the actual product.
