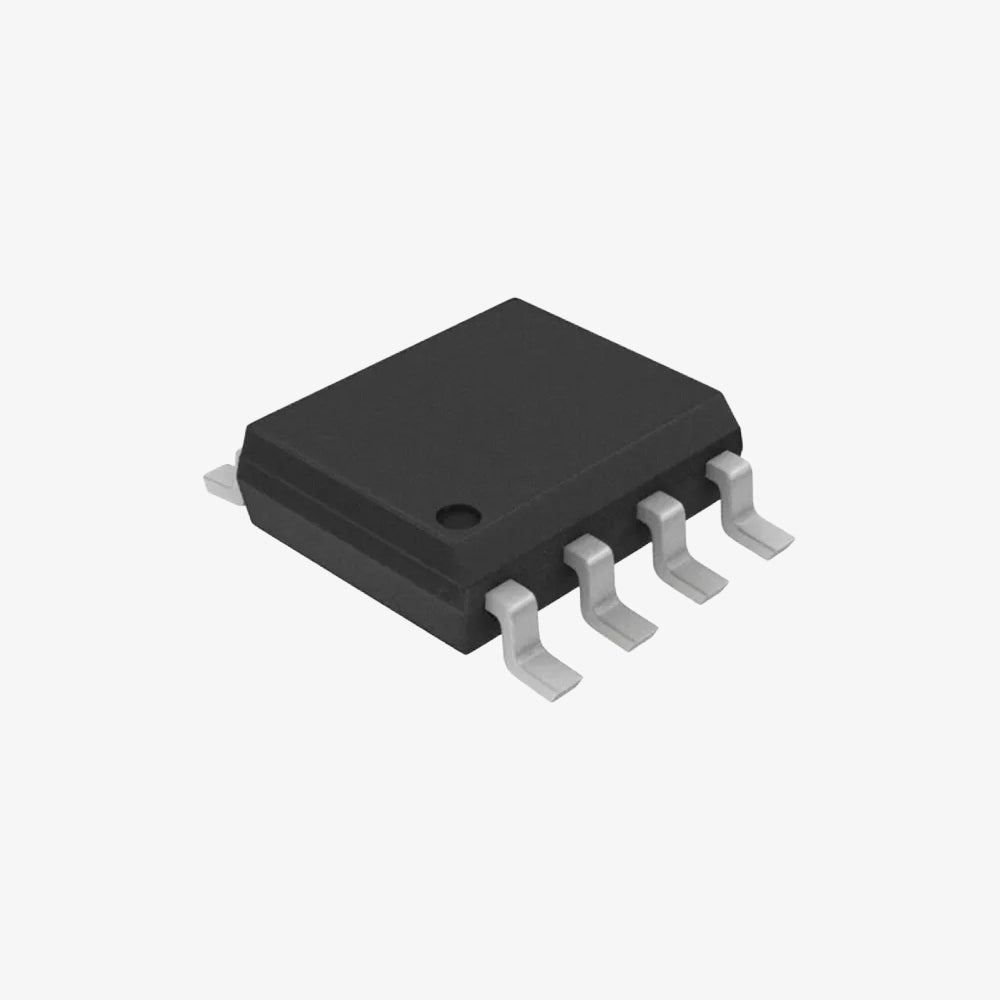

LM393 Low Power Low Offset Voltage Dual Comparator IC - SOIC-8 SMD Package

The LM393 is a low-power, low-offset voltage dual comparator IC designed for a wide range of voltage comparison applications. It features two independent voltage comparators that can operate from a single power supply over a wide range of voltages. The IC is well-suited for battery-operated devices due to its low power consumption and is available in a compact SOIC-8 SMD package.

LM393 IC Specifications:

• IC Type: Dual Comparator
• Package Type: SOIC-8 SMD
• Package Size: 8 Pins
• Supply Voltage: 2 V to 36 V (single supply) or ±1 V to ±18 V (dual supply)
• Input Offset Voltage: 2 mV (typical)
• Input Bias Current: 25 nA (typical)
• Response Time: 1.3 µs (typical for 5 mV overdrive)
• Output Sink Current: 6 mA
• Operating Temperature Range: 0°C to +70°C

LM393 Dual Comparator Pin Configuration:

1. Output 1: Comparator 1 output
2. Inverting Input 1: Comparator 1 inverting input
3. Non-inverting Input 1: Comparator 1 non-inverting input
4. VCC-: Negative power supply
5. Non-inverting Input 2: Comparator 2 non-inverting input
6. Inverting Input 2: Comparator 2 inverting input
7. Output 2: Comparator 2 output
8. VCC+: Positive power supply

Features:

• Dual independent voltage comparators
• Wide supply voltage range
• Low input offset voltage
• Low power consumption
• Compatible with single or dual power supplies
• Compact SOIC-8 package for space-efficient designs

Applications:

• Voltage level detection
• Oscillators and multivibrators
• Battery-operated devices
• Signal processing
• Analog-to-digital conversion

Package Includes:

1 x LM393 Low Power Low Offset Voltage Dual Comparator IC (SOIC-8 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
