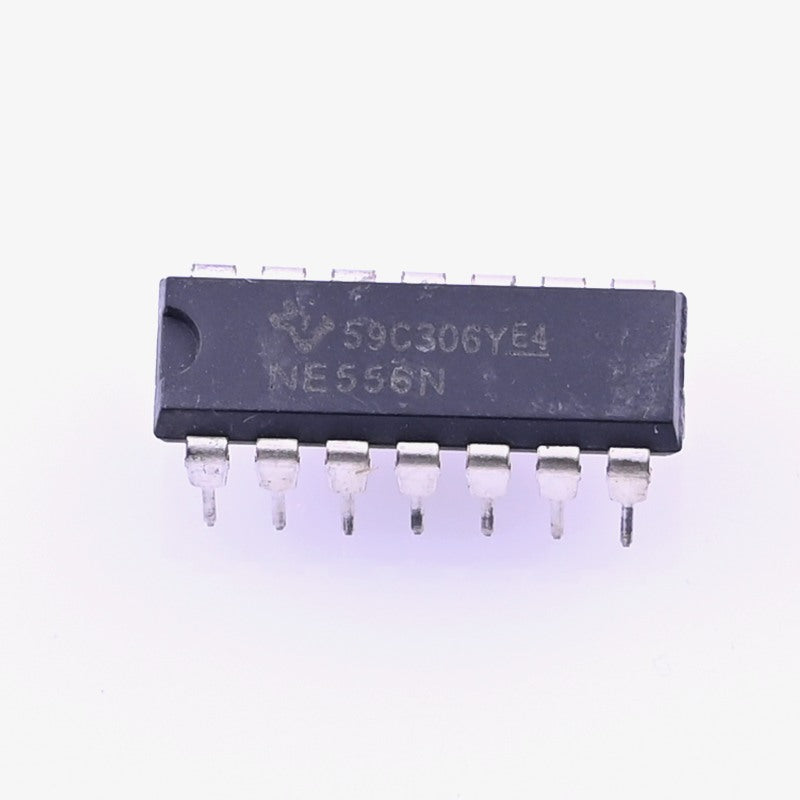

LM556/NE556 Dual Timer IC

LM556/NE556 Dual Timer IC

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

The LM556 is a dual timer IC, similar to but here it has two such timer devices into a single package. It is considered to be the modern replacement for 555 since it uses the latest CMOS technology.

NE555 Timer IC has an operating voltage from +5V to +18V and the output pin can source/sink up to 150mA current. The minimum threshold voltage for the trigger pin is 2.4V when operated with 5V.

NE556 IC Pinout



Pin configuration

Pin Number

Pin Name

Description

1,13

Discharge

Open collector output which discharges a capacitor.

2,12

Threshold

Compares the voltage applied to the terminal with a reference voltage.

3,11

Control Voltage

Controls the threshold and trigger levels.

4,10

Reset

A negative pulse applied to this pin to disable or reset the timer.

5,9

Out

Normally connected to load

6,8

Trigger

Responsible for the transition of the flip-flop from set to reset.

7

Ground

Ground Pin

14

Vcc

Supply Voltage Pin



Features & Specifications

  • Two precision Timers in one single package
  • Operating Voltage Range: 5V to 18V.
  • The source/sink current of the output pin is 150mA
  • Supply Current: 10mA
  • Operating Temperature: 0 to 70°C
  • Active Pullup or Pulldown
  • Designed to Be Interchangeable With Signetics NE556, SA556, and SE556
  • Available in 14-pin SOIC, and MDIP packages



Package Contents

1× LM556/NE556 Dual Timer IC
